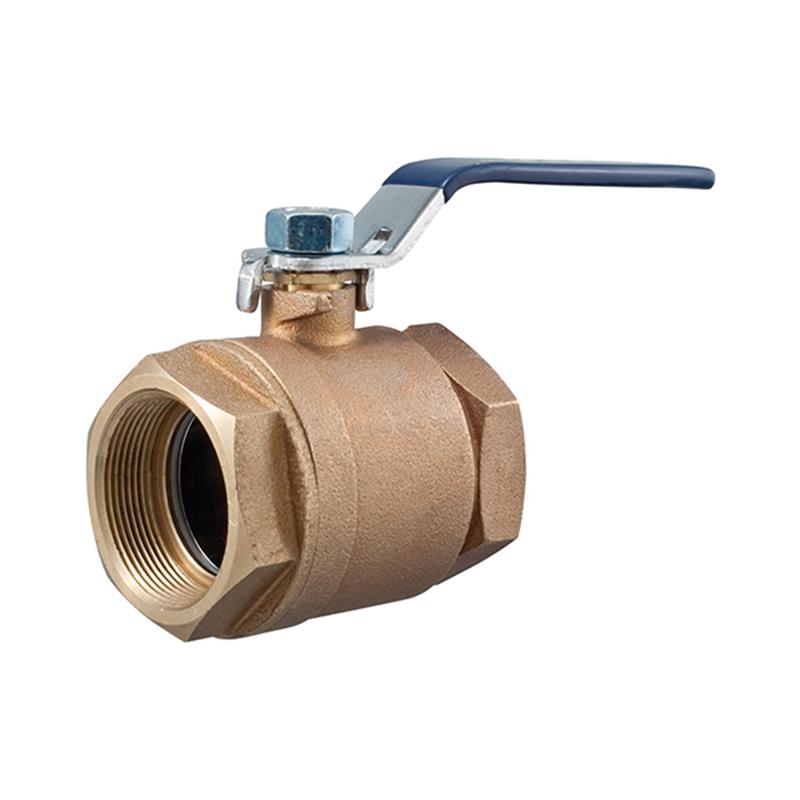

Febco LF622F 1 1/2" IPS Ball Valve QT

Item Number: 781051LL
1 1
$201.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 1 1/2 inch
  • Weight: 2.94 lb
  • Body Material: Lead Free Bronze
  • Ball Material: Chrome Plated Lead Free Brass
  • End Connection: Female NPT Threaded
  • Port Type: Full Port
  • Maximum Operating Pressure WOG: 600 PSI (non-shock)
  • Maximum Operating Pressure Steam: 125 PSI
  • Temperature Range: 0°F to +350°F

Description

The Febco LF622F 1 1/2 inch full port ball valve is engineered for water service and industrial fluid handling in non-health hazard applications. Constructed from lead-free bronze, it ensures compliance with reduced lead content standards. Its full port design minimizes pressure drop, providing efficient flow control for non-abrasive fluids, suitable for throttling or balancing. Rated for up to 600 PSI WOG (non-shock) and 125 PSI saturated steam, with a broad temperature range of 0°F to +350°F. Features include PTFE seals, a bottom-loaded stem, and a durable lever handle for reliable quarter-turn operation. Item number 781051LL.

Help Me Connect

Connections

  • This valve features 1 1/2 inch Female NPT threaded connections on both ends.
  • It is designed to connect to pipes or fittings with 1 1/2 inch Male NPT threads.
  • Ensure compatible pipe thread sealant is used for a secure, leak-free installation.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Additional Details

The Febco LF622F 1 1/2 inch full port ball valve is designed for non-health hazard water service applications and general-purpose industrial use. Its full port design ensures low pressure drop, making it ideal for throttling and balancing non-abrasive fluids where a minimum flow of 20% to 100% of valve capacity is required.

Construction & Design

  • Lead Free* bronze body construction ensures compliance with reduced lead content requirements.
  • Features a full port design for maximum flow and minimal pressure loss.
  • Equipped with a lever handle for easy quarter-turn open or close operation.
  • Internal components include a PTFE stem packing seal, thrust washer, and seat for reliable performance.
  • The valve utilizes a bottom loaded, pressure retaining stem and an adjustable stem packing gland.

Operating Parameters

  • Pressure rated up to 600 PSI WOG (non-shock) for water, oil, and gas applications.
  • Pressure rated up to 125 PSI saturated steam.
  • Suitable for temperatures ranging from 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa).
  • Designed for quarter-turn operation; not intended for throttling applications.

Specifications

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Seal/Seat Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Nut Material: Plated Steel
  • Size: 1 1/2 inch (DN40)
  • End Connection: Female NPT Threaded
  • Port Type: Full Port
  • Maximum Operating Pressure WOG (non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure Saturated Steam: 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Operation: Quarter-turn

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Reduced Lead Content: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What is the primary use of the Febco LF622F 1 1/2 inch ball valve?

This valve is designed for non-health hazard water service applications and general-purpose industrial use, particularly for throttling and balancing non-abrasive fluids where low pressure drop is desired.

What are the pressure and temperature ratings for this valve?

The Febco LF622F valve is rated for a maximum operating pressure of 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam. It can operate in temperatures ranging from 0°F to +350°F.

Is this valve suitable for potable water applications?

Yes, this valve features Lead Free* bronze construction, meaning its wetted surfaces contain less than 0.25% lead by weight, making it compliant with reduced lead content requirements for potable water applications.

What type of handle does the 1 1/2 inch Febco LF622F valve have?

The 1 1/2 inch Febco LF622F ball valve is equipped with a lever handle, which is standard for sizes 1 1/2 inches through 2 inches, allowing for easy quarter-turn operation.

What type of connections does this ball valve feature?

This Febco LF622F ball valve has 1 1/2 inch Female NPT (National Pipe Taper) threaded connections on both ends, designed to connect to corresponding Male NPT threaded pipes or fittings.
