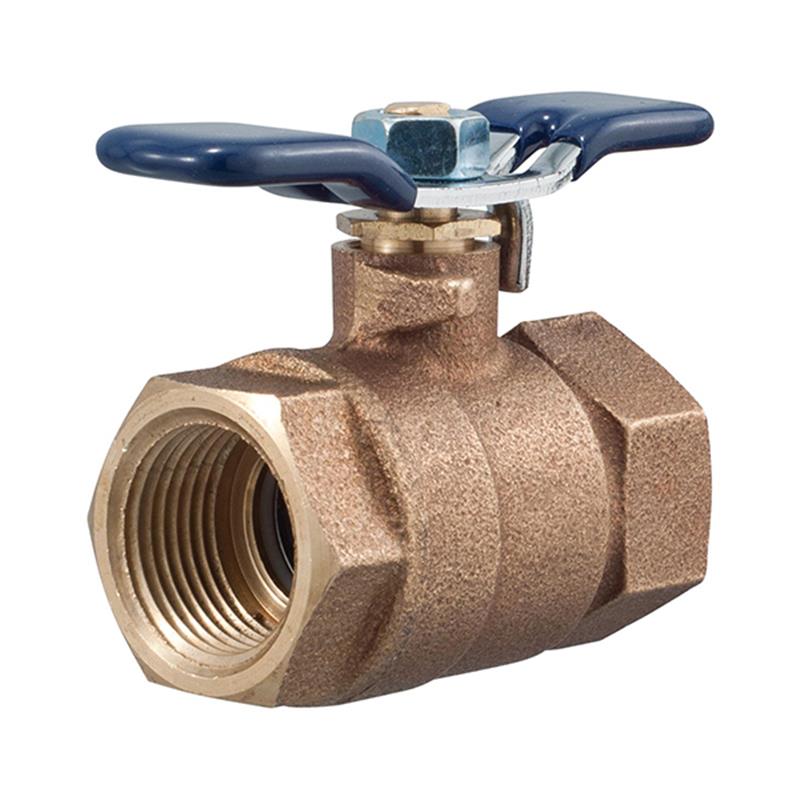

Febco LF622F 1 1/4" IPS Ball Valve QT

Item Number: 781050LL
1 1
$141.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Valve Type: Full Port Ball Valve
  • Weight: 1.88 lb
  • Size: 1 1/4 inch IPS
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Handle Type: Tee Handle
  • Max Operating Pressure: 600 PSI WOG (non-shock)
  • Max Saturated Steam Pressure: 125 PSI
  • Temperature Range: 0°F to +350°F

Description

The Febco LF622F 1 1/4 inch full port ball valve is constructed from Lead Free* cast copper silicon alloy, ideal for water service and non-abrasive fluid control applications. Designed for low pressure drop, it features a quarter-turn tee handle for quick open/close operation. This valve is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, with a temperature range of 0°F to +350°F. PTFE seals ensure reliable performance. It meets Federal Specification WW-V-35C and complies with lead-free installation requirements. Item number 781050LL.

Help Me Connect

Connections

The Febco LF622F 1 1/4 inch Ball Valve features threaded (IPS) connections on both ends. These threads are designed to connect to compatible 1 1/4 inch male NPT or IPS threaded piping systems.

This LF622F model is a "Full Port Thread x Thread Ball Valve" without a tapped side outlet, meaning both inlet and outlet are exclusively for the primary flow path. Ensure all connections are properly sealed to prevent leaks.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Additional Details

The Febco LF622F 1 1/4 inch Lead Free Full Port Ball Valve is designed for reliable flow control in water service applications.

This genuine Febco ball valve is suitable for throttling and balancing non-abrasive fluids where a minimum flow of 20% to 100% of valve capacity is required, providing a low pressure drop thanks to its full port design.

Features

  • Lead Free* construction to comply with installation requirements
  • Full port design for low pressure drop
  • Quarter-turn open or close operation
  • PTFE stem packing seal, thrust washer, and seat for reliable sealing
  • Low operating torque with an adjustable stem packing gland
  • Bottom loaded, pressure retaining stem
  • Tee handle standard for this 1 1/4 inch size
  • Ideal for throttling and balancing applications of non-abrasive fluids where minimum flow is 20% to 100% of valve capacity

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

General

  • Valve Type: Full Port Ball Valve
  • Nominal Size: 1 1/4 inch
  • Connection Type: Thread x Thread (IPS)
  • Handle Type: Tee Handle
  • Operation: Quarter-turn
  • Port Type: Full Port

Materials of Construction

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Packing Nut Material: Brass
  • Ball Seal: PTFE
  • Packing: PTFE
  • Stem Washer: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Nut Material: Plated Steel

Performance

  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
  • Maximum Saturated Steam Pressure (WSP): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • CV Factor (1 1/4"): 110 Cv (gpm / psi)

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Complies with state codes and standards requiring reduced lead content
  • Lead Free* Wetted Surface: Less than 0.25% lead by weight

FAQs

What is the primary use of the Febco LF622F 1 1/4 inch ball valve?

This ball valve is designed for water service applications and is ideal for throttling and balancing non-abrasive fluids where a minimum flow of 20% to 100% of the valve capacity is required.

What are the pressure and temperature ratings for this valve?

The valve is rated for a maximum operating pressure of 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam. It can operate in temperatures from 0°F to +350°F at 50 PSI.

Is this valve suitable for throttling applications?

While it is designed for quarter-turn open or close operation, it is also ideal for throttling and balancing applications of non-abrasive fluids when maintaining a minimum flow of 20% to 100% of valve capacity. It is not intended for continuous throttling.

What material is the ball made from, and does it contribute to "Lead Free" compliance?

The ball is made from Chrome Plated Lead Free* Brass. All wetted surfaces of this product contain less than 0.25% lead by weight, ensuring compliance with lead-free installation requirements for consumable water contact.

What type of connections does the LF622F model have?

The LF622F model features threaded (IPS) connections on both the inlet and outlet. It is a Full Port Thread x Thread Ball Valve without a tapped side outlet.
