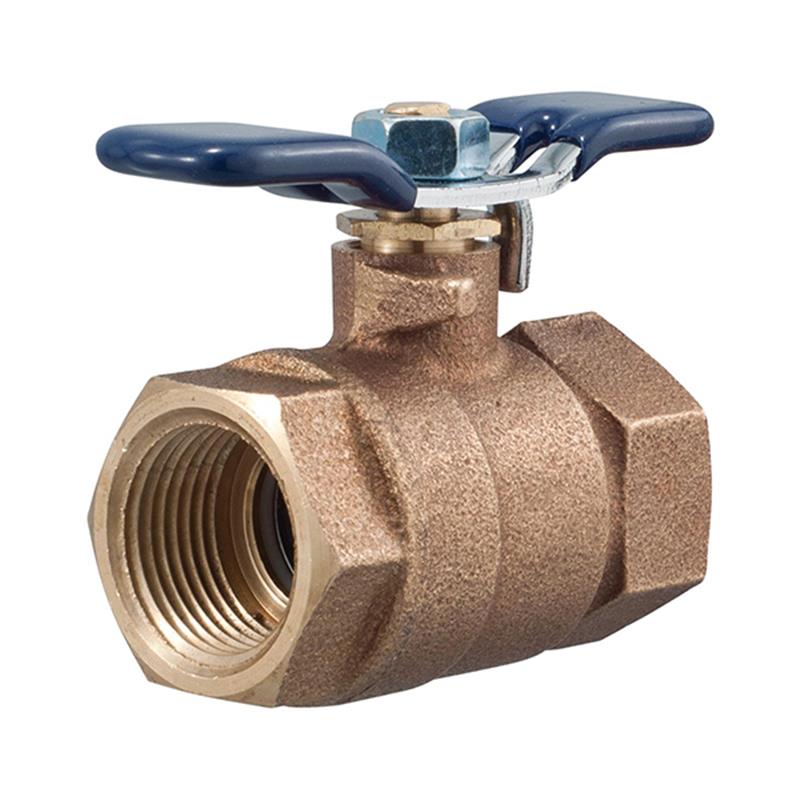

Febco LF622F 3/4" IPS Ball Valve QT

Item Number: 781048LL
1 1
$42.56
Limited Stock (8)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Valve Type: Full Port Ball Valve
  • Weight: 0.6 lb
  • Size: 3/4 inch
  • End Connection: Threaded IPS
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Maximum Operating Pressure (WOG): 600 psi
  • Temperature Range: 0°F to +350°F
  • Handle Type: Tee Handle
  • Lead Free: Yes

Description

The Febco LF622F is a 3/4 inch Lead Free full port bronze ball valve with threaded IPS connections. Designed for water service applications and general-purpose use with non-abrasive fluids, it offers a low-pressure drop due to its full port design. This quarter-turn valve features a durable lead-free cast copper silicon alloy body, a chrome-plated lead-free brass ball, and PTFE seals for reliable performance. It is rated for a maximum operating pressure of 600 psi WOG and 125 psi saturated steam, with a temperature range of 0°F to +350°F. The valve includes a plated steel tee handle with a vinyl insulator for easy operation.

Help Me Connect

Connections

  • This valve features 3/4 inch Female IPS (Iron Pipe Size) threads on both ends.
  • It is designed to connect directly into a 3/4 inch Male NPT (National Pipe Tapered) threaded pipe system, providing a secure and leak-tight connection.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Additional Details

This is a Febco LF622F 3/4 inch Lead Free full port ball valve designed for water service applications and general-purpose use with non-abrasive fluids.

It is ideal for throttling and balancing applications where minimum flow is 20% to 100% of valve capacity.

Features

  • Lead Free* construction to comply with reduced lead content requirements.
  • Full port design ensures low pressure drop.
  • Quarter-turn operation for quick open and close functionality. (Not intended for throttling applications outside 20-100% flow range.)
  • Equipped with a PTFE stem packing seal, thrust washer, and seat for reliable sealing.
  • Includes a plated carbon steel tee handle with vinyl insulator for comfortable operation.
  • Features an adjustable stem packing gland and a bottom loaded, pressure retaining stem.

Specifications

  • Valve Type: Full Port Ball Valve
  • Size: 3/4 inch
  • End Connection: Threaded (IPS)
  • Operation: Quarter-Turn
  • Handle Type: Tee Handle

Pressure & Temperature Ratings

  • Maximum Operating Pressure (WOG, Non-Shock): 600 psi (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 psi (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50psi (345 kPa)

Materials of Construction

  • Body Material: Lead Free Cast Copper Silicon Alloy (Bronze)
  • End Cap Material: Lead Free Cast Copper Silicon Alloy (Bronze)
  • Ball Material: Chrome Plated Lead Free Brass
  • Stem Material: Brass
  • Seat Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Nut Material: Plated Steel
  • Packing Nut Material: Brass

Performance Data

  • Cv Factor (GPM/psi): 30
  • Cv Factor (L/Vpsi): 113.6

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Content: Wetted surface contacted by consumable water contains less than 0.25% of lead by weight

FAQs

What is the primary use of the Febco LF622F 3/4" ball valve?

This ball valve is designed for water service applications and general-purpose use with non-abrasive fluids. It is ideal for throttling and balancing applications where minimum flow is 20% to 100% of valve capacity.

What are the pressure and temperature ratings for this valve?

The valve is rated for a maximum operating pressure of 600 psi WOG (non-shock) and 125 psi for saturated steam. It can operate in temperatures ranging from 0°F to +350°F at 50psi.

Is this Febco LF622F valve lead-free?

Yes, the Febco LF622F features Lead Free* construction. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with reduced lead content requirements.

What type of connections does this ball valve have?

This ball valve has 3/4 inch Female IPS (Iron Pipe Size) threads on both ends, designed for connection to 3/4 inch Male NPT threaded pipes.

What materials are used in the construction of the Febco LF622F valve?

The valve features a body and end cap made from Lead Free Cast Copper Silicon Alloy (Bronze), a Chrome Plated Lead Free Brass ball, Brass stem, and PTFE for the ball seal, packing, and stem washer. The handle is plated steel with a vinyl insulator.
