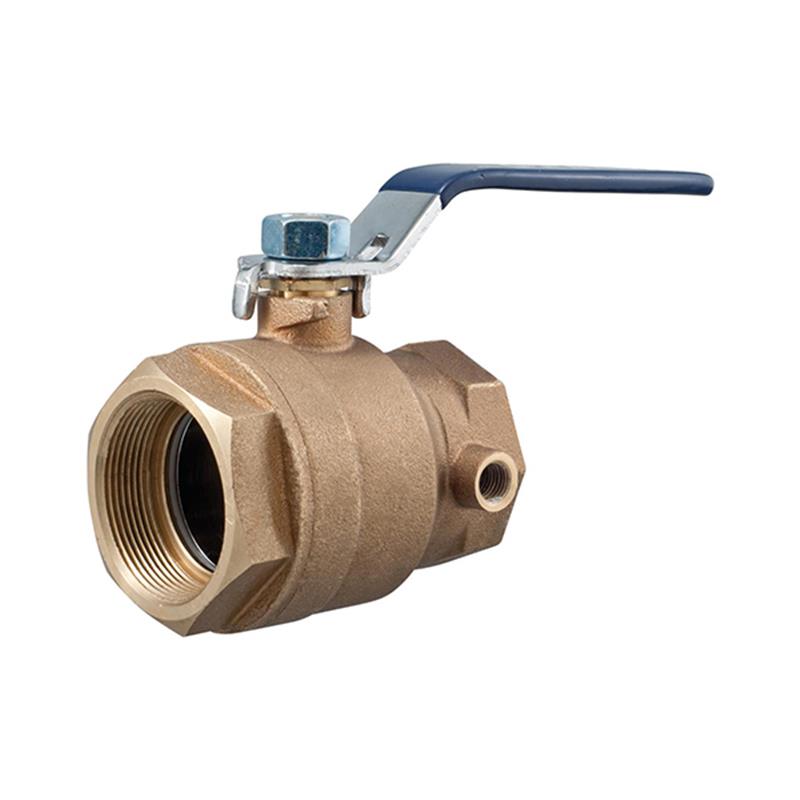

Febco LF622FT 1 1/2" IPS Ball Valve QT Tapped For Test Cock

Item Number: 781056LL
1 1
$213.74
Limited Stock (4)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Size: 1 1/2 inch
  • Weight: 3.12 lb
  • End Connections: 1 1/2 inch Female IPS Thread
  • Side Outlet Connection: 1/4 inch Female IPS Thread
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Maximum Operating Pressure (WOG): 600 PSI
  • Handle Type: Lever
  • Lead Free construction

Description

The Febco LF622FT is a 1 1/2 inch Lead Free Full Port Ball Valve with Female IPS threads, ideal for water service applications. Its full port design ensures minimal pressure drop, making it suitable for throttling and balancing non-abrasive fluids with 20% to 100% flow capacity. Constructed from Lead Free* cast copper silicon alloy with a chrome-plated brass ball and PTFE seats, it offers durability and reliable quarter-turn operation. This valve features a tapped side outlet (1/4 inch Female IPS) for a pressure gauge or test cock, and a lever handle for easy control. It is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam.

Help Me Connect

This Febco LF622FT ball valve features 1 1/2 inch Female IPS (Iron Pipe Straight) threads on both ends, designed to connect with 1 1/2 inch Male IPS threaded pipes or fittings. The valve also includes a convenient 1/4 inch Female IPS threaded side outlet, specifically for installing a pressure gauge or test cock. Ensure all connections are properly sealed to maintain system integrity.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Additional Details

The Febco LF622FT is a 1 1/2 inch Lead Free Full Port Ball Valve designed for water service applications, featuring a tapped side outlet for a pressure gauge or test cock (sold separately).

This quarter-turn valve is ideal for throttling and balancing of non-abrasive fluids, ensuring low pressure drop with its full port design.

Features

  • Lead Free* construction meets installation requirements (wetted surface contains less than 0.25% lead).
  • Full port design ensures low pressure drop.
  • Suitable for water service applications and balancing of non-abrasive fluids where minimum flow is 20% to 100% of valve capacity.
  • PTFE stem packing seal, thrust washer, and seat for reliable operation.
  • Bottom loaded, pressure retaining stem.
  • Plated carbon steel lever handle with vinyl insulator for 1 1/2" and 2" sizes.
  • Quarter-turn open or close operation. (Not intended for throttling applications where flow is outside 20% to 100% of valve capacity.)
  • Adjustable stem packing gland and low operating torque.

Connections

  • Main connections are 1 1/2 inch Female IPS threads.
  • Side outlet is a 1/4 inch Female IPS thread for a pressure gauge or test cock.

Specifications

  • Brand: Febco
  • Series: LF622FT
  • Valve Type: Full Port Ball Valve
  • Nominal Size: 1 1/2 inch
  • End Connections: 1 1/2 inch Female IPS Thread
  • Side Outlet Connection: 1/4 inch Female IPS Thread
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Handle Material: Plated Steel with Vinyl Insulator
  • Seat Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Maximum Operating Pressure (WOG, Non-Shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to 350°F (-18°C to 177°C) at 50 PSI
  • CV Factor (1 1/2"): 130 GPM
  • Operation: Quarter-turn Lever

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Content: Wetted surface contacted by consumable water contains less than 0.25% of lead by weight.

FAQs

What are the main connection sizes for this valve?

The main connections for this Febco LF622FT ball valve are 1 1/2 inch Female IPS (Iron Pipe Straight) threads on both ends.

What is the purpose of the tapped side outlet?

The tapped side outlet is a 1/4 inch Female IPS thread, specifically designed for the installation of a pressure gauge or a test cock. The test cock or gauge is sold separately.

What materials is this ball valve made from?

The body of the valve is made from Lead Free* Cast Copper Silicon Alloy, the ball is Chrome Plated Lead Free* Brass, and the seats and stem packing are PTFE. The stem is brass, and the handle is plated carbon steel with a vinyl insulator.

What is the maximum operating pressure and temperature for this valve?

This valve has a maximum operating pressure of 600 PSI WOG (Water, Oil, Gas, non-shock) and 125 PSI for saturated steam. It is suitable for temperatures from 0°F to 350°F (-18°C to 177°C) at 50 PSI.

Is this valve suitable for throttling applications?

Yes, it is ideal for throttling and balancing applications of non-abrasive fluids where minimum flow is 20% to 100% of the valve capacity. It is not intended for throttling applications outside this range.
