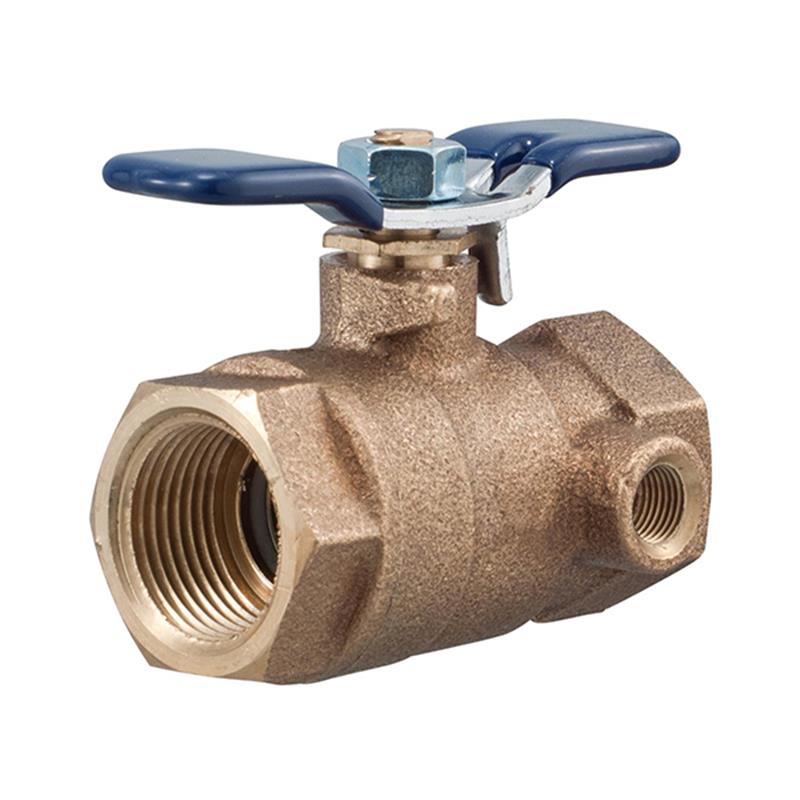

Febco LF622FT 1/2" IPS Ball Valve QT Tapped For Test Cock

Item Number: 781244LL
Skip to product information
1 of 1
Regular price $39.56
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco

  • Valve Size: 1/2 inch
  • Weight: 0.5 lb
  • Lead Free* Bronze Construction
  • Full Port Design
  • Tapped Side Outlet for Test Cock or Gauge
  • Maximum Operating Pressure: 600 psi WOG (non-shock)
  • Maximum Saturated Steam Pressure: 125 psi
  • Temperature Range: 0°F to +350°F
  • Quarter-Turn Tee Handle Operation

Description

Febco LF622FT is a 1/2 inch Lead Free* bronze full port ball valve with a tapped side outlet, ideal for water service applications. Its full port design ensures low pressure drop, while Lead Free* copper silicon alloy construction complies with potable water standards, containing less than 0.25% lead. Rated for 600 psi WOG (non-shock) and 125 psi saturated steam, it operates with a quarter-turn tee handle. The tapped side outlet allows for easy installation of pressure gauges or test cocks. This valve is suitable for non-abrasive fluids from 0°F to +350°F. Item number 781244LL.

Help Me Connect

Connections

  • The main valve features 1/2 inch IPS threaded connections on both ends, designed for compatibility with corresponding male NPT threads.
  • A tapped side outlet is provided for the convenient installation of a pressure gauge or a test cock. Note that a pressure gauge or test cock is sold separately and not included with the valve.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622FT is a 1/2 inch Lead Free* bronze full port ball valve designed for water service applications, featuring a tapped side outlet suitable for a pressure gauge or test cock.

This quarter-turn valve ensures low pressure drop with its full port design and is built for durability with Lead Free* copper silicon alloy construction.

Key Features

  • Lead Free* construction: Wetted surfaces contain less than 0.25% lead by weight for potable water compliance.
  • Full port design: Minimizes pressure drop, ensuring optimal flow.
  • Tapped side outlet: Facilitates installation of a pressure gauge or test cock (sold separately).
  • Quarter-turn operation: Allows for quick opening and closing. Not intended for continuous throttling.
  • Suitable for throttling and balancing non-abrasive fluids with minimum flow from 20% to 100% of valve capacity.

Durable Construction

  • Body and End Cap: Lead Free* Cast Copper Silicon Alloy
  • Ball: Chrome Plated Lead Free* Brass
  • Stem: Brass with PTFE stem packing seal, thrust washer, and seat.
  • Handle: Plated steel with vinyl insulator for comfortable grip.
  • Bottom loaded, pressure retaining stem with adjustable packing gland.

Specifications

  • Valve Type: Full Port Ball Valve with Tapped Side Outlet
  • Valve Size: 1/2 inch
  • Connection Type: Threaded (IPS)
  • Operating Pressure (WOG, non-shock): 600 psi (41.4 bar)
  • Operating Pressure (Saturated Steam): 125 psi (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 psi (345 kPa)
  • Operation: Quarter-turn
  • Handle Type: Tee handle

Materials of Construction

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Packing Nut Material: Brass
  • Seal Material (Ball): PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Handle Nut Material: Plated Steel

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Content: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What is the primary use of the Febco LF622FT 1/2" ball valve?

This ball valve is primarily designed for water service applications, including throttling and balancing of non-abrasive fluids. It is not intended for continuous throttling.

What does "Lead Free*" mean for this valve?

"Lead Free*" signifies that the wetted surfaces of the valve, which come into contact with consumable water, contain less than 0.25% lead by weight. This ensures compliance with lead-free installation requirements.

What is the purpose of the tapped side outlet?

The tapped side outlet on the LF622FT valve is specifically designed for the convenient installation of a pressure gauge or a test cock. These accessories are sold separately.

What are the maximum pressure and temperature ratings for this valve?

This valve is rated for a maximum operating pressure of 600 psi WOG (water, oil, gas, non-shock) and 125 psi for saturated steam. It can handle temperatures ranging from 0°F to +350°F (-18°C to 177°C) at 50 psi.

What material is the ball made of inside the valve?

The ball inside the Febco LF622FT valve is made from Chrome Plated Lead Free* Brass, ensuring durability and compliance with lead-free standards.
