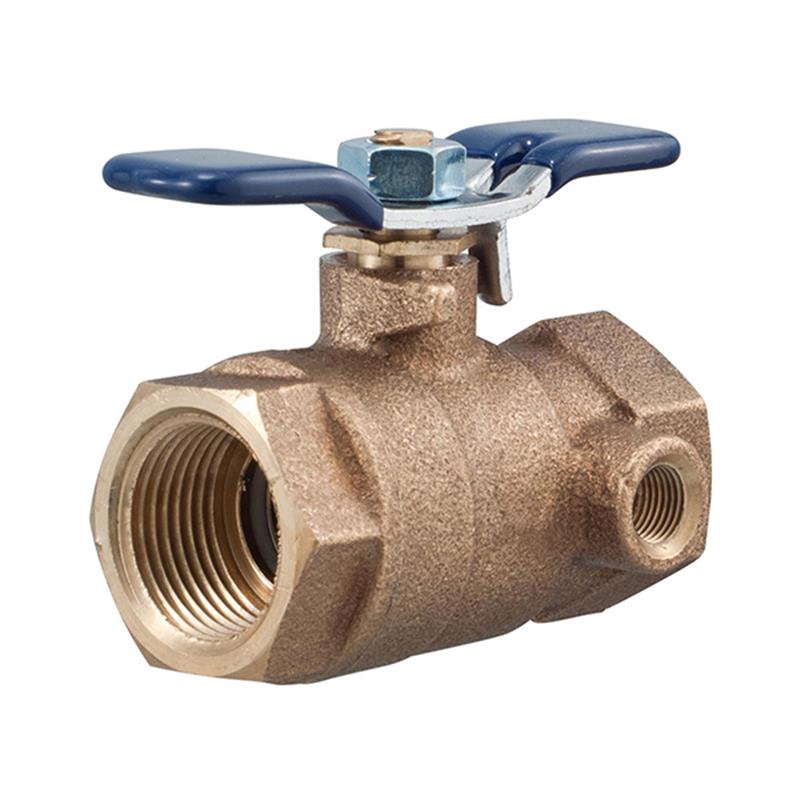

Febco LF622FT 1" IPS Ball Valve QT Tapped For Test Cock

Item Number: 781054LL
Skip to product information
1 of 1
Regular price $87.38
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • 1" Full Port Ball Valve
  • Weight: 1.32 lb
  • Tapped Side Outlet: 1/8" Female NPT
  • Lead Free Construction
  • Max Operating Pressure (WOG): 600 psi
  • Max Operating Pressure (Steam): 125 psi
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Tee Handle for quarter-turn operation

Description

The Febco LF622FT 1" Lead Free Full Port Ball Valve is engineered for water service and balancing non-abrasive fluids. Its lead-free bronze body and chrome-plated brass ball ensure durability and compliance with installation requirements. Featuring a full port design for minimal pressure drop, it includes a tapped side outlet for adding a test cock or pressure gauge. Rated for 600 psi WOG (non-shock) and 125 psi saturated steam, this valve operates with a quarter-turn tee handle for efficient control. PTFE seals provide reliable performance across a wide temperature range.

Help Me Connect

Connections

  • The main connections of this ball valve are 1 inch Female NPT threads on both ends, designed to connect to 1 inch Male NPT threaded pipes or fittings.
  • A secondary connection is the 1/8 inch Female NPT tapped side outlet, which is specifically for installing a pressure gauge or a test cock. Note that a test cock or pressure gauge must be purchased separately.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

This is a Febco LF622FT 1 inch Lead Free Full Port Ball Valve, designed with a tapped side outlet suitable for the installation of a pressure gauge or test cock. It is specifically used for water service applications and is ideal for the throttling and balancing of non-abrasive fluids where the minimum flow is between 20% and 100% of the valve's capacity.

Features

  • Lead Free* construction to comply with installation requirements
  • Full port design for low pressure drop
  • Tee handle standard for quarter-turn open or close operation
  • Side tapped outlet (1/8 inch NPT female) suitable for pressure gauges or test cocks
  • PTFE stem packing seal, thrust washer, and seat for reliable sealing
  • Bottom loaded, pressure retaining stem
  • Adjustable stem packing gland

Construction Materials

  • Body: Lead Free Cast Copper Silicon Alloy (Bronze)
  • End Cap: Lead Free Cast Copper Silicon Alloy
  • Ball: Chrome Plated Lead Free Brass
  • Stem: Brass
  • Packing Nut: Brass
  • Ball Seal: PTFE
  • Packing: PTFE
  • Stem Washer: PTFE
  • Handle: Plated Steel with Vinyl Insulator
  • Nut: Plated Steel

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Valve Type: Full Port Ball Valve
  • Nominal Size: 1 inch
  • End Connections: 1 inch Female NPT (Thread x Thread)
  • Side Tapped Outlet: 1/8 inch Female NPT
  • Operation: Quarter-turn
  • Handle Type: Tee handle (Plated Steel w/ Vinyl Insulator)
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Stem Material: Brass
  • Seal Material: PTFE (for stem packing, thrust washer, and seat)
  • Maximum Operating Pressure (WOG, non-shock): 600 psi (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 psi (8.6 bar)
  • Operating Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 psi (345 kPa)
  • Application: Water service, throttling and balancing of non-abrasive fluids (20%-100% capacity)

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Content: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What are the main applications for this Febco LF622FT ball valve?

This ball valve is primarily designed for water service applications. It is ideal for throttling and balancing non-abrasive fluids where the minimum flow is between 20% and 100% of the valve's capacity.

What are the pressure ratings for this valve?

The valve is rated for a maximum operating pressure of 600 psi (41.4 bar) WOG (water, oil, gas, non-shock) and 125 psi (8.6 bar) for saturated steam.

Does this valve have a lead-free construction?

Yes, this valve features lead-free construction. The wetted surfaces of the product that come into contact with consumable water contain less than 0.25% of lead by weight, complying with lead-free installation requirements.

What is the purpose of the tapped side outlet?

The 1/8 inch female NPT tapped side outlet is suitable for the installation of a pressure gauge or a test cock, allowing for easy monitoring or testing within the system (test cock sold separately).

What materials are used for the main components of the valve?

The valve body and end cap are made from Lead Free Cast Copper Silicon Alloy. The ball is Chrome Plated Lead Free Brass, the stem is Brass, and the seals (ball seal, packing, stem washer) are made of PTFE.
