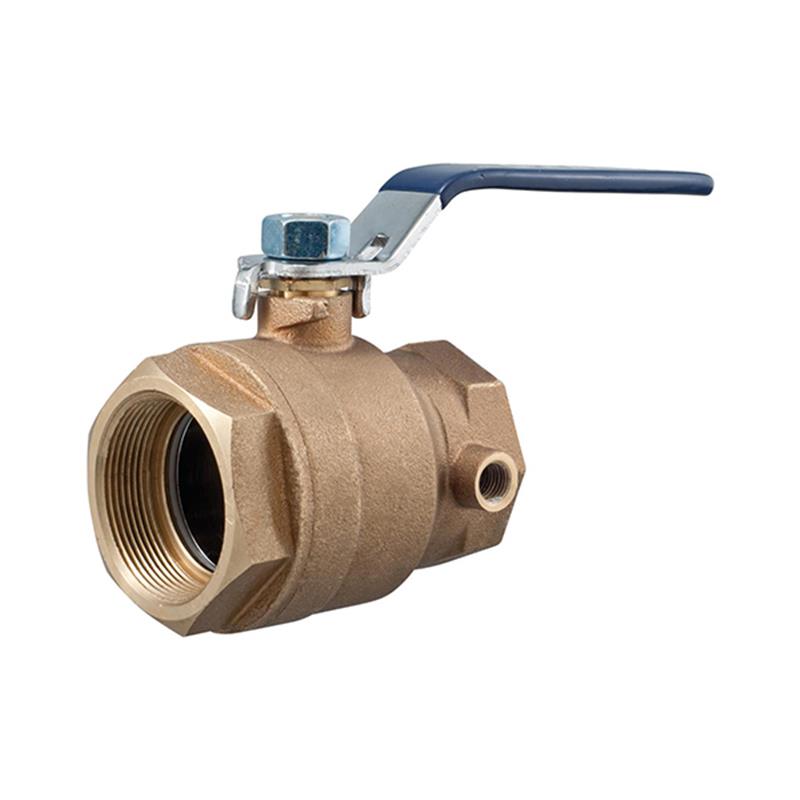

Febco LF622FT 2" IPS Ball Valve QT Tapped For Test Cock

Item Number: 781057LL
Skip to product information
1 of 1
Regular price $308.62
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Valve Size: 2 inch
  • Weight: 5.35 lb
  • Connection Type: Threaded (IPS)
  • Full Port Design: Low pressure drop
  • Body Material: Lead Free* Bronze
  • Ball Material: Chrome Plated Lead Free* Brass
  • Pressure Rating (WOG): 600 psi (non-shock)
  • Side Outlet: Tapped for pressure gauge or test cock
  • Operation: Quarter-turn lever handle

Description

The Febco LF622FT 2 inch lead free full port ball valve is engineered for water service applications, ensuring minimal pressure drop through its full port design. Constructed from lead free bronze with a chrome plated lead free brass ball and PTFE seals, this valve offers reliable performance. It features a convenient tapped side outlet for connecting a pressure gauge or test cock, and a lever handle for quarter-turn operation. Rated for 600 psi WOG (non-shock) and 125 psi saturated steam, it is suitable for temperatures from 0°F to +350°F. Item number 781057LL.

Help Me Connect

This Febco LF622FT ball valve is designed for easy installation into threaded pipe systems.

  • The main connections are 2 inch IPS female threads, compatible with 2 inch IPS male threaded pipes.
  • The valve includes a 1/4 inch IPS female threaded side outlet, specifically for connecting a pressure gauge or test cock (sold separately) with a 1/4 inch IPS male thread.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

This Febco LF622FT 2 inch lead free full port ball valve is designed for water service applications. It features a convenient tapped side outlet for easy installation of a pressure gauge or test cock (sold separately).

Construction & Design

  • Constructed from Lead Free* bronze with a full port design for low pressure drop.
  • Features a chrome plated lead free* brass ball and PTFE stem packing seal, thrust washer, and seat for reliable sealing.
  • Equipped with a plated carbon steel lever handle with vinyl insulator for quarter-turn open/close operation.
  • Includes a bottom loaded, pressure retaining stem for enhanced safety.

Performance Characteristics

  • Pressure rated at 600 psi WOG (water, oil, gas, non-shock) and 125 psi saturated steam.
  • Suitable for temperatures ranging from 0°F to +350°F (-18°C to 177°C) at 50psi (345 kPa).
  • Ideal for throttling and balancing applications of non-abrasive fluids where minimum flow is 20% to 100% of valve capacity.
  • Features low operating torque for ease of use.

This valve is not intended for throttling applications outside the recommended 20-100% flow range. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Brand: Febco
  • Model: LF622FT
  • SKU: 781057LL
  • Valve Size: 2 inch
  • Connection Type: Threaded (IPS)
  • Side Outlet Thread: 1/4 inch IPS
  • Port Type: Full Port
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Seal Material: PTFE
  • Handle Type: Lever
  • Handle Material: Plated Steel with Vinyl Insulator
  • Maximum Operating Pressure (WOG): 600 psi (non-shock)
  • Maximum Operating Pressure (Saturated Steam): 125 psi
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 psi
  • Operation: Quarter-turn

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Free* Compliance: Wetted surface contains less than 0.25% lead by weight

FAQs

Is this ball valve truly lead-free?

Yes, the wetted surface of this Febco LF622FT ball valve that comes into contact with consumable water contains less than 0.25% lead by weight, complying with lead-free installation requirements.

What is the purpose of the tapped side outlet?

The 1/4 inch IPS tapped side outlet is designed for the convenient installation of a pressure gauge or a test cock, allowing for easy monitoring or testing of the system pressure.

Can this valve be used for throttling applications?

This valve is ideal for throttling and balancing applications with non-abrasive fluids where the minimum flow is between 20% to 100% of the valve's capacity. It is not intended for throttling outside this range.

What are the maximum pressure and temperature ratings for this valve?

The valve is rated for a maximum operating pressure of 600 psi WOG (water, oil, gas, non-shock) and 125 psi for saturated steam. It can operate in temperatures ranging from 0°F to +350°F (-18°C to 177°C) at 50psi.

What type of handle does the 2-inch LF622FT valve have?

The 2-inch Febco LF622FT ball valve comes standard with a plated carbon steel lever handle with a vinyl insulator, allowing for quarter-turn open and close operation.
