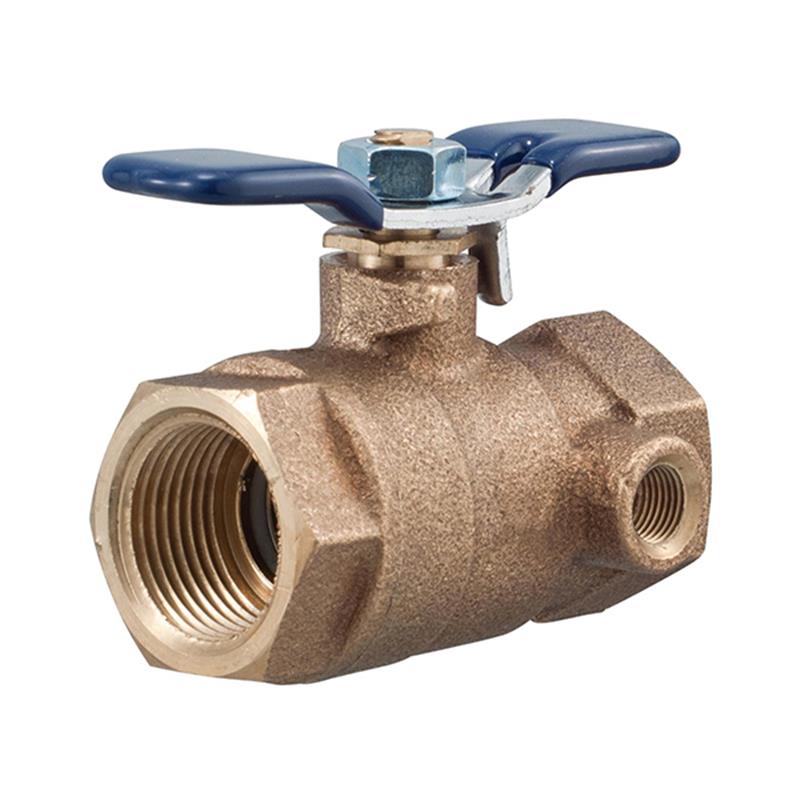

Febco LF622FT 3/4" IPS Ball Valve QT Tapped For Test Cock

Item Number: 781053LL
Skip to product information
1 of 1
Regular price $47.06
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • 3/4 inch full port ball valve
  • Weight: 0.79 lb
  • Lead Free* construction
  • Tapped side outlet for test cock (1/8 inch IPS)
  • 600 PSI WOG (non-shock) maximum pressure
  • 125 PSI saturated steam maximum pressure
  • Chrome plated Lead Free* brass ball
  • PTFE stem packing, thrust washer, and seat
  • Quarter-turn tee handle operation

Description

The Febco LF622FT is a 3/4 inch Lead Free full port ball valve constructed from copper silicon alloy, ideal for water service applications. This valve features a tapped side outlet, allowing for the convenient installation of a pressure gauge or test cock. It boasts a maximum operating pressure of 600 PSI WOG (non-shock) and 125 PSI for saturated steam. The full port design ensures minimal pressure drop, while the tee handle provides easy quarter-turn operation. Designed for throttling and balancing non-abrasive fluids, this valve ensures compliance with reduced lead content standards. Item number 781053LL.

Help Me Connect

Connections

  • The main valve connections are 3/4 inch Female IPS threads, designed to connect to 3/4 inch Male IPS threaded pipes or fittings.
  • The side outlet is a 1/8 inch Female IPS thread, specifically designed for installing a pressure gauge or test cock (sold separately).

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622FT is a 3/4 inch Lead Free full port ball valve with a tapped side outlet, designed for water service applications.

This valve is suitable for throttling and balancing applications of non-abrasive fluids where minimum flow is 20% to 100% of the valve capacity. Its full port design ensures low pressure drop.

Features

  • Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight.
  • Full port design for low pressure drop.
  • Tee handle standard for 3/4" size, made of plated carbon steel with a vinyl insulator for easy quarter-turn open or close operation.
  • PTFE stem packing seal, thrust washer, and seat for reliable performance.
  • Features an adjustable stem packing gland and a bottom loaded, pressure retaining stem.
  • Tapped side outlet suitable for installation of a pressure gauge or test cock (sold separately).

Specifications

  • Valve Type: Full Port Ball Valve
  • Size: 3/4 inch
  • End Connection: 3/4 inch IPS Thread
  • Test Cock Port Size: 1/8 inch IPS Thread
  • Body Material: Lead Free* Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Seal/Seat Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Maximum Operating Pressure (WOG, Non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • CV Factor (3/4"): 30 gpm/psi

Certificates & Approvals

  • Federal Specification WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Free* compliance (wetted surface contains less than 0.25% lead by weight)

FAQs

What is the primary use of the Febco LF622FT ball valve?

This valve is primarily designed for water service applications, including throttling and balancing non-abrasive fluids where a minimum flow of 20% to 100% of valve capacity is required.

What does "Lead Free" mean for this valve?

"Lead Free*" means that the wetted surfaces of this product, which come into contact with consumable water, contain less than 0.25% of lead by weight, complying with current regulations for reduced lead content.

Can a pressure gauge or test cock be installed directly onto this valve?

Yes, the Febco LF622FT valve features a 1/8 inch IPS tapped side outlet specifically designed for the installation of a pressure gauge or test cock. These accessories are sold separately.

What are the maximum pressure and temperature ratings for this valve?

This valve is rated for a maximum operating pressure of 600 PSI WOG (non-shock) and 125 PSI for saturated steam. It can handle temperatures from 0°F to +350°F (-18°C to 177°C) at 50 PSI.

What material is the ball inside the valve made from?

The ball inside the Febco LF622FT valve is made from Chrome Plated Lead Free* Brass, ensuring durability and compliance with lead-free standards.
