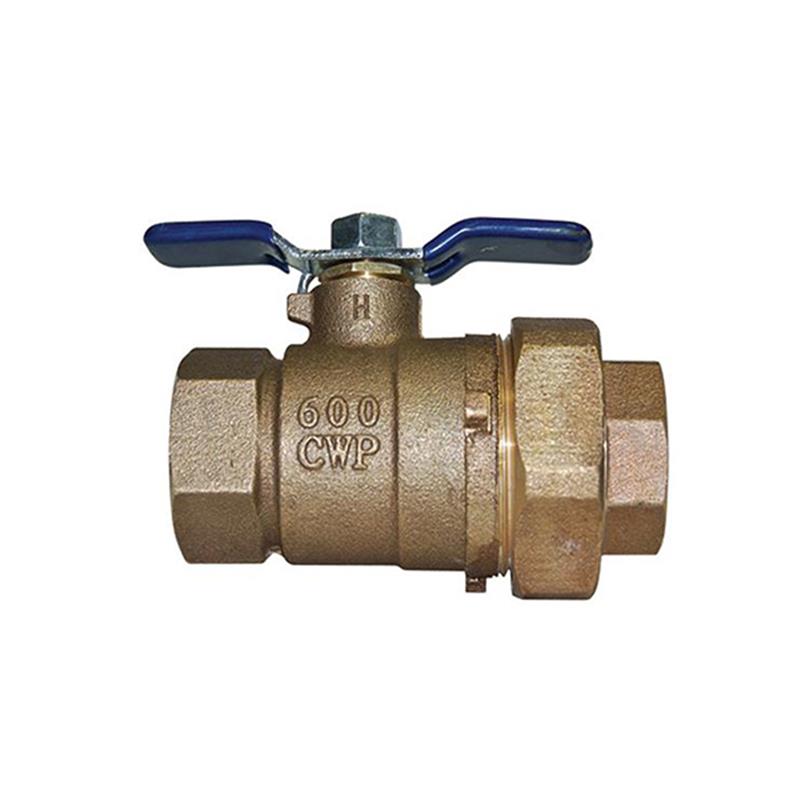

Febco LF622UF 1 1/2" IPS Union Ball Valve QT

Item Number: 781291LL
Skip to product information
1 of 1
Regular price $330.38
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Size: 1 1/2 inch
  • Weight: 4.86 lb
  • Connection Type: Threaded with Union End
  • Lead Free* Bronze Construction
  • Full Port Design for Low Pressure Drop
  • Maximum Pressure (WOG): 600 psi
  • Maximum Pressure (Steam): 125 psi
  • Temperature Range: 0°F to +350°F
  • Operation: Quarter-turn with Lever Handle

Description

The Febco LF622UF 1 1/2" Lead Free Full Port Union End Ball Valve is engineered for steam service and non-abrasive fluid applications. Constructed from lead-free bronze, it features a full port design for minimal pressure drop and a chrome-plated brass ball for durability. This valve is rated for 600 psi WOG (non-shock) and 125 psi saturated steam, operating within 0°F to 350°F. Its union end and lever handle facilitate easy installation and operation. Item number 781291LL.

Help Me Connect

This Febco LF622UF ball valve features a threaded connection at one end and a union end at the other, both suitable for 1 1/2 inch Iron Pipe Size (IPS) connections. The union end allows for easy installation and removal of the valve for maintenance or system modifications without needing to cut pipe.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco Series LF622UF is a 1 1/2 inch lead free, full port ball valve with union ends, designed for steam service and non-abrasive fluid applications.

It is ideal for throttling and balancing applications where minimum flow is 20% to 100% of valve capacity, ensuring low pressure drop with its full port design.

Features

  • Lead Free* construction to comply with Lead Free* installation requirements
  • Full port design for low pressure drop
  • Lever handle standard on 1 1/2" through 2" sizes (40mm – 50mm)
  • PTFE stem packing seal, thrust washer and seat
  • Plated carbon steel handle with vinyl insulator
  • Quarter-turn open or close operation (Not intended for throttling applications, but suitable for throttling/balancing where min flow is 20%-100%)
  • Adjustable stem packing gland
  • Bottom loaded, pressure retaining stem

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Brand: Febco
  • Series: LF622UF
  • Valve Type: Full Port Ball Valve
  • Nominal Size: 1 1/2 inch (40mm)
  • Connection Type: Thread x Thread Ball Valve with (1) Union End

Materials of Construction

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Packing Nut Material: Brass
  • Ball Seal Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Nut Material: Plated Steel

Performance Ratings

  • Pressure Rating (WOG, non-shock): 600 psi (41.4 bar)
  • Pressure Rating (Saturated Steam): 125 psi (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50psi (345 kPa)
  • Minimum Flow for Throttling: 20% of valve capacity
  • Maximum Flow for Throttling: 100% of valve capacity

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead content: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What is the primary application of the Febco LF622UF valve?

This valve is designed for steam service applications and the throttling or balancing of non-abrasive fluids where a minimum flow of 20% to 100% of valve capacity is required.

What are the pressure and temperature ratings for this valve?

It is pressure rated at 600 psi WOG (non-shock) and 125 psi for saturated steam. The valve is suitable for temperatures ranging from 0°F to +350°F at 50 psi.

Is this Febco valve lead-free?

Yes, this valve features Lead Free* construction, meaning the wetted surface contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.

What type of handle does the 1 1/2 inch LF622UF valve have?

The 1 1/2 inch size of this valve comes standard with a lever handle, which is made of plated carbon steel with a vinyl insulator for comfortable operation.

What are the main materials used in the construction of this valve?

The body and end cap are made of Lead Free* Cast Copper Silicon Alloy, the ball is Chrome Plated Lead Free* Brass, and the stem is Brass. PTFE is used for the ball seal, packing, and stem washer.
