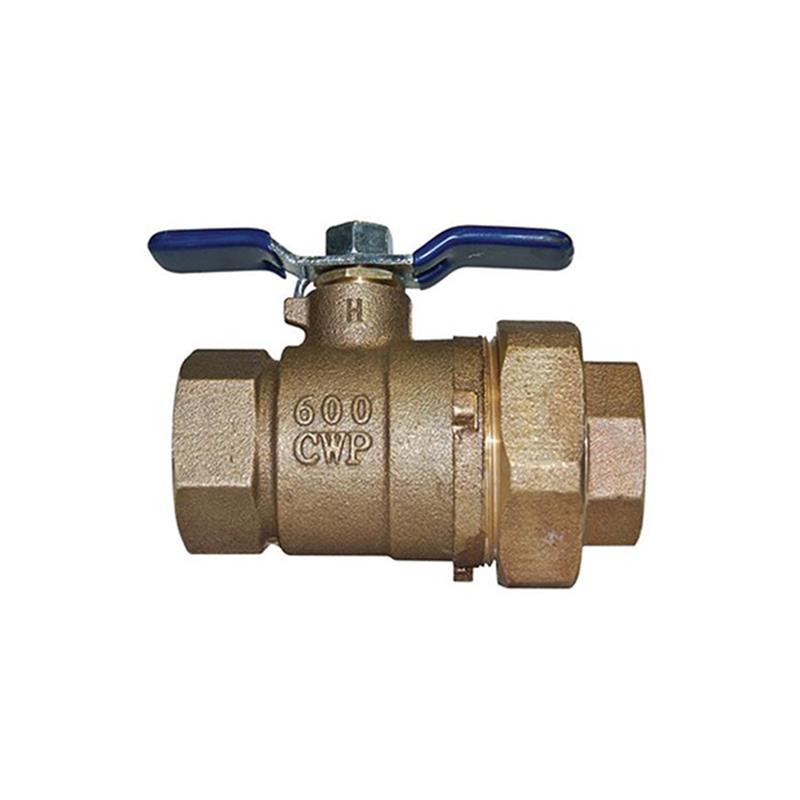

Febco LF622UF 1 1/4" IPS Union Ball Valve QT

Item Number: 781290LL
Skip to product information
1 of 1
Regular price $228.75
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Valve Size: 1 1/4 inch
  • Weight: 2.72 lb
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Connection Type: Union End
  • Maximum Operating Pressure (WOG): 600 PSI
  • Maximum Operating Pressure (Saturated Steam): 125 PSI
  • Temperature Range: 0°F to +350°F
  • Features Full Port Design

Description

The Febco LF622UF is a 1 1/4 inch Lead Free Full Port Ball Valve with Union Ends, engineered for steam service applications and balancing non-abrasive fluids within a 20-100% flow capacity. It features a durable Lead Free Cast Copper Silicon Alloy body, a Chrome Plated Lead Free Brass ball, and PTFE seals for reliable performance. This valve is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, with a temperature range of 0°F to +350°F. Its full port design ensures minimal pressure drop, and the quarter-turn tee handle provides efficient operation.

Help Me Connect

This Febco LF622UF ball valve features 1 1/4 inch IPS (Iron Pipe Size) threaded connections with a union end. The union end design allows for easier installation and removal from piping systems, facilitating maintenance or replacement without needing to rotate the entire pipe run. It connects directly to compatible 1 1/4 inch male NPT threaded pipes or fittings.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

This Febco LF622UF is a 1 1/4 inch Lead Free Full Port Ball Valve with Union Ends, engineered for steam service applications and the control of non-abrasive fluids. Its full port design ensures minimal pressure drop, making it ideal for balancing applications where flow rates are maintained between 20% and 100% of valve capacity.

Features

  • Lead Free* construction, compliant with reduced lead content requirements.
  • Full port design promotes low pressure drop and high flow capacity.
  • Equipped with a PTFE stem packing seal, thrust washer, and seat for durable and reliable performance.
  • Features a plated carbon steel tee handle with a vinyl insulator for comfortable quarter-turn operation.
  • Designed with a bottom-loaded, pressure retaining stem for enhanced safety.
  • Includes an adjustable stem packing gland for maintenance.

Specifications

  • Valve Size: 1 1/4 inch
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • End Cap Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Stem Material: Brass
  • Ball Seal Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Nut Material: Plated Steel
  • Connection Type: Union End
  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Wetted Surface Lead Content: Less than 0.25%

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A

FAQs

What is the primary application for the Febco LF622UF 1 1/4 inch ball valve?

This valve is primarily designed for steam service applications. It is also suitable for throttling and balancing non-abrasive fluids where the flow needs to be maintained between 20% and 100% of the valve's capacity.

What does 'Lead Free' mean for this Febco ball valve?

The 'Lead Free' designation indicates that the wetted surface of this product, which comes into contact with consumable water, contains less than 0.25% lead by weight. This ensures compliance with reduced lead content requirements for potable water installations.

What type of connections does the Febco LF622UF valve feature?

This valve features 1 1/4 inch IPS (Iron Pipe Size) threaded connections with union ends. The union ends facilitate easy installation and removal from piping systems for maintenance or replacement.

What are the maximum pressure and temperature ratings for this valve?

The valve is rated for a maximum operating pressure of 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam. It can handle temperatures ranging from 0°F to +350°F at 50 PSI operating pressure.

What materials are used for the body and ball of this valve?

The body of the Febco LF622UF valve is constructed from Lead Free Cast Copper Silicon Alloy. The ball is made from Chrome Plated Lead Free Brass, ensuring durability and corrosion resistance.
