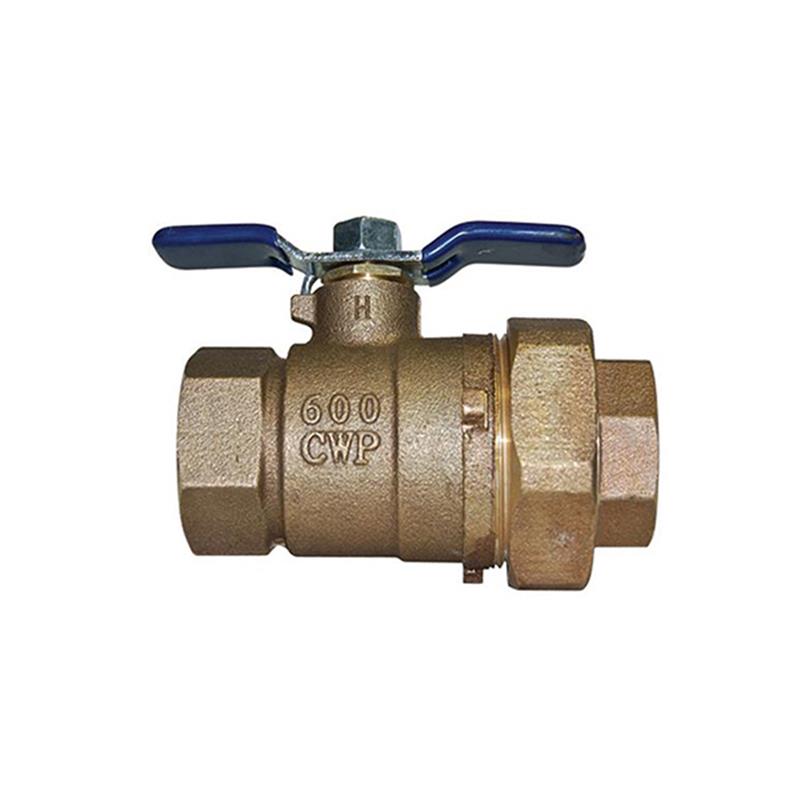

Febco LF622UF 1" IPS Union Ball Valve QT

Item Number: 781289LL
Skip to product information
1 of 1
Regular price $103.88
Limited Stock (6)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Valve Type: Full Port Union End Ball Valve
  • Weight: 1.91 lb
  • Size: 1 inch
  • Body Material: Lead-Free Bronze
  • Ball Material: Chrome Plated Lead-Free Brass
  • Maximum Operating Pressure: 600 PSI WOG
  • Maximum Saturated Steam Pressure: 125 PSI
  • Temperature Range: 0°F to +350°F
  • Operation: Quarter-turn with Tee Handle

Description

The Febco LF622UF is a 1-inch lead-free full port union end ball valve constructed from bronze. It is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, operating effectively in temperatures from 0°F to +350°F. Featuring a chrome-plated lead-free brass ball, PTFE seals, and a tee handle for quarter-turn operation, this valve is designed for low pressure drop and is suitable for throttling non-abrasive fluids. The union end facilitates convenient installation and maintenance. This valve complies with lead-free installation requirements for potable water applications.

Help Me Connect

Connecting Your Febco LF622UF Ball Valve

This 1 inch ball valve features a Thread x Thread configuration with (1) Union End. The threaded connection is designed to connect to compatible NPT threaded pipes or fittings. The union end allows for easy installation and removal from piping systems without needing to cut or extensively alter the line.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622UF 1 inch lead-free full port union end ball valve is designed for steam service applications and ideal for throttling and balancing of non-abrasive fluids.

Its full port design ensures minimal pressure drop, while its quarter-turn operation allows for quick open and close functionality. This valve features a durable lead-free bronze body and a chrome-plated lead-free brass ball.

Features

  • Lead-Free* Construction: Wetted surfaces contain less than 0.25% lead by weight.
  • Full Port Design: Ensures low pressure drop and high flow capacity.
  • Throttling and Balancing: Suitable for non-abrasive fluids where minimum flow is 20% to 100% of valve capacity.
  • Quarter-Turn Operation: Quick open and close functionality.
  • Tee Handle: Plated carbon steel handle with vinyl insulator for standard operation on 1/2" through 1 1/4" sizes.
  • PTFE Seals: Features PTFE stem packing seal, thrust washer, and seat for reliable sealing.
  • Bottom Loaded Stem: Pressure retaining stem design.

Connections

  • Features a Thread x Thread configuration with (1) Union End.

Temperature and Pressure Ratings

  • Pressure Rated: 600psi (41.4 bar) WOG (non-shock) and 125psi (8.6 bar) saturated steam.
  • Temperature Range: Suitable for temperatures from 0°F to +350°F (-18°C to 177°C) at 50psi (345 kPa).

Specifications

General

  • Valve Type: Full Port Union End Ball Valve
  • Size: 1 inch
  • Operation: Quarter-turn
  • Handle Type: Tee Handle

Materials

  • Body Material: Lead-Free Bronze (Cast Copper Silicon Alloy)
  • Ball Material: Chrome Plated Lead-Free Brass
  • Stem Material: Brass
  • End Cap Material: Lead-Free Cast Copper Silicon Alloy
  • Ball Seal: PTFE
  • Packing: PTFE
  • Stem Washer: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Nut Material: Plated Steel

Performance

  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Cv Factor: 60 GPM / psi

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead-Free Compliance: Wetted surfaces contain less than 0.25% lead by weight

FAQs

What is the primary use of the Febco LF622UF ball valve?

This ball valve is designed for steam service applications and is ideal for throttling and balancing non-abrasive fluids where a minimum flow of 20% to 100% of valve capacity is required.

What materials are used in the construction of this valve?

The valve features a lead-free cast copper silicon alloy (bronze) body and end cap, a chrome-plated lead-free brass ball, brass stem, and PTFE for the ball seal, packing, and stem washer.

What are the pressure and temperature ratings for this 1-inch valve?

It is rated for 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam. The suitable temperature range is from 0°F to +350°F (-18°C to 177°C) at 50 PSI.

Does this valve comply with lead-free standards?

Yes, it is constructed with lead-free materials. The wetted surfaces of this product that contact consumable water contain less than 0.25% of lead by weight, meeting lead-free installation requirements.

How does the union end feature benefit installation?

The union end allows for easy installation and removal of the valve from a piping system. This means you can disconnect and reconnect the valve without needing to cut or extensively alter the existing pipework.
