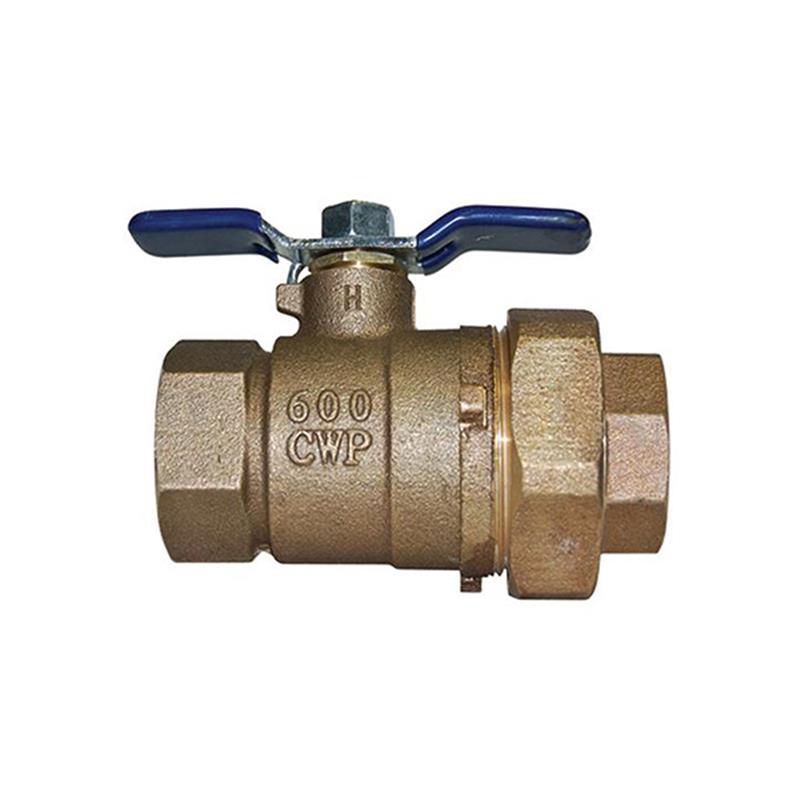

Febco LF622UF 2" IPS Union Ball Valve QT

Item Number: 781292LL
Skip to product information
1 of 1
Regular price $460.88
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco

  • Size: 2 inch
  • Type: Full Port Union End Ball Valve
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Maximum WOG Pressure: 600 psi (non-shock)
  • Maximum Steam Pressure: 125 psi
  • Temperature Range: 0°F to 350°F
  • Handle Type: Lever
  • Lead-Free: Yes

Description

The Febco LF622UF 2 inch Lead Free Full Port Union End Ball Valve is a durable bronze valve designed for steam service and precise throttling of non-abrasive fluids. It features a full port design for minimal pressure drop and a robust lead-free cast copper silicon alloy body. With a pressure rating of 600 psi WOG (non-shock) and 125 psi for saturated steam, it operates reliably from 0°F to 350°F. The valve includes a lever handle, PTFE seals, and a union end for simplified installation and maintenance. Item number 781292LL.

Help Me Connect

The Febco LF622UF ball valve is designed for easy installation with a combination of threaded and union connections.

  • It features 2 inch female NPT threads on one end for standard pipe connections.
  • The other end is a 2 inch union connection, which allows for convenient installation and removal without disassembling the entire pipe run. The union end also features threaded connections.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

This 2 inch Febco LF622UF is a lead-free bronze full port union end ball valve designed for steam service applications and ideal for throttling and balancing non-abrasive fluids.

Key Features

  • Lead-Free* construction in compliance with installation requirements.
  • Full port design for minimal pressure drop.
  • PTFE stem packing seal, thrust washer, and seat for reliable sealing.
  • Quarter-turn operation for quick open/close, suitable for throttling and balancing non-abrasive fluids with 20% to 100% valve capacity.
  • Lever handle with vinyl insulator, standard for 1 1/2" through 2" sizes.
  • Bottom loaded, pressure retaining stem.
  • Adjustable stem packing gland.

Materials of Construction

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Ball Seal Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Nut Material: Plated Steel

Specifications

  • Brand: Febco
  • Model: LF622UF
  • Size: 2 inch (DN50)
  • Type: Full Port Ball Valve, Union End
  • Construction: Lead Free* Bronze
  • Maximum WOG Pressure (non-shock): 600 psi (41.4 bar)
  • Maximum Saturated Steam Pressure: 125 psi (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50psi (345 kPa)
  • Operation: Quarter-turn
  • Handle Type: Lever handle with Vinyl Insulator

Certificates & Approvals

  • Conforms to Federal Specification WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A.
  • Complies with state codes and standards requiring reduced lead content for copper silicon alloy full port ball valves.
  • *The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

FAQs

What is the primary use of the Febco LF622UF 2 inch ball valve?

This ball valve is designed for steam service applications and is ideal for throttling and balancing non-abrasive fluids, maintaining a minimum flow of 20% to 100% of valve capacity.

What materials are used in the construction of this valve?

The valve body and end cap are made from Lead Free* Cast Copper Silicon Alloy, and the ball is Chrome Plated Lead Free* Brass. It uses PTFE for seals and packing.

What are the maximum pressure and temperature ratings for this valve?

It is rated for 600 psi WOG (water, oil, gas) non-shock pressure and 125 psi for saturated steam. The temperature range is 0°F to +350°F (-18°C to 177°C) at 50 psi.

Does this valve have a lever or tee handle?

For the 2 inch size, this Febco LF622UF ball valve comes standard with a lever handle, which includes a vinyl insulator for comfortable operation.

How does the union end feature benefit installation?

The union end allows for easy installation and removal of the valve from a pipeline without needing to cut or disassemble extensive sections of piping, simplifying maintenance and repairs.
