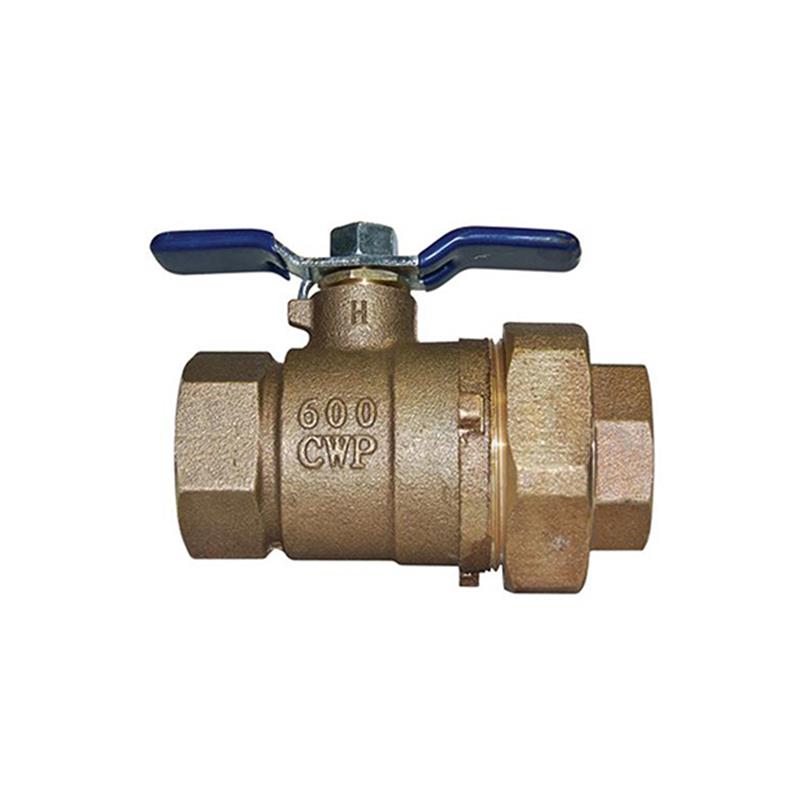

Febco LF622UF 3/4" IPS Union Ball Valve QT

Item Number: 781288LL
Skip to product information
1 of 1
Regular price $66.19
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Size: 3/4 inch
  • Weight: 0.71 lb
  • Connection Type: Threaded x Union End
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Handle Type: Tee Handle
  • Maximum Operating Pressure: 600 PSI WOG (Non-Shock)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C)
  • Full Port Design with PTFE Seats

Description

The Febco LF622UF 3/4 inch Lead Free Bronze Full Port Ball Valve is designed for reliable flow control in non-health hazard applications, including steam service and non-abrasive fluids. This valve features a durable lead-free cast copper silicon alloy body, a chrome plated lead-free brass ball, and PTFE seals, ensuring longevity and compliance with lead-free standards. With its full port design, it minimizes pressure drop, making it suitable for throttling and balancing applications. It is pressure rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, handling temperatures from 0°F to +350°F. The valve includes 3/4 inch IPS threaded and union end connections and operates with a quarter-turn tee handle.

Help Me Connect

Connections

The Febco LF622UF 3/4 inch ball valve is designed with 3/4 inch IPS threads on one end and a 3/4 inch union fitting on the other. This configuration allows the threaded end to connect to compatible 3/4 inch female NPT or IPS threaded fittings, while the union end provides a secure, disassemble-friendly connection to another 3/4 inch male threaded pipe section without rotating the main valve body.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622UF is a genuine 3/4 inch Lead Free bronze full port ball valve featuring an IPS threaded end and a union end, designed for reliable flow control in non-health hazard applications with non-abrasive fluids, including steam service.

Its full port design minimizes pressure drop, making it suitable for throttling and balancing applications where a minimum flow of 20% to 100% of valve capacity is required.

Features

  • Lead Free* construction to comply with reduced lead content requirements.
  • Standard tee handle for 3/4 inch sizes.
  • Full port design for low pressure drop.
  • Pressure rated at 600 psi WOG (water, oil, gas, non-shock) and 125 psi saturated steam.
  • Suitable for temperatures from 0°F to +350°F (-18°C to 177°C) at 50psi.
  • Equipped with a PTFE stem packing seal, thrust washer, and seat.
  • Features a plated carbon steel handle with vinyl insulator.
  • Offers quarter-turn open or close operation.
  • Adjustable stem packing gland and a bottom loaded, pressure retaining stem.

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Valve Type: Full Port Ball Valve
  • Size: 3/4 inch
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Stem Material: Brass
  • Seal Material: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Connection Type: Threaded x Union End
  • Maximum Operating Pressure (WOG, Non-Shock): 600 psi (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 psi (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50psi
  • Operation: Quarter-turn

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Free* Compliance: Wetted surface contacted by consumable water contains less than 0.25% of lead by weight.

FAQs

What are the primary uses for the Febco LF622UF 3/4" Lead Free Ball Valve?

This valve is designed for non-health hazard applications, including steam service and the control of non-abrasive fluids. It is also suitable for throttling and balancing applications where minimum flow is between 20% and 100% of valve capacity.

What is the maximum pressure rating for this valve?

The Febco LF622UF ball valve is rated for 600 psi WOG (water, oil, gas, non-shock) and 125 psi for saturated steam applications.

What materials are used in the construction of the Febco LF622UF valve?

The valve features a lead-free cast copper silicon alloy body, a chrome plated lead-free brass ball, a brass stem, and PTFE (Polytetrafluoroethylene) for the stem packing seal, thrust washer, and seat. The handle is plated carbon steel with a vinyl insulator.

Is this valve compliant with lead-free requirements?

Yes, the Febco LF622UF is constructed with Lead Free* materials. The wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, meeting current lead-free installation requirements.

How does the Febco LF622UF ball valve connect to piping?

This valve features 3/4 inch IPS threads on one end and a 3/4 inch union fitting on the other. This allows for straightforward installation and future maintenance without needing to rotate the entire pipe run.
