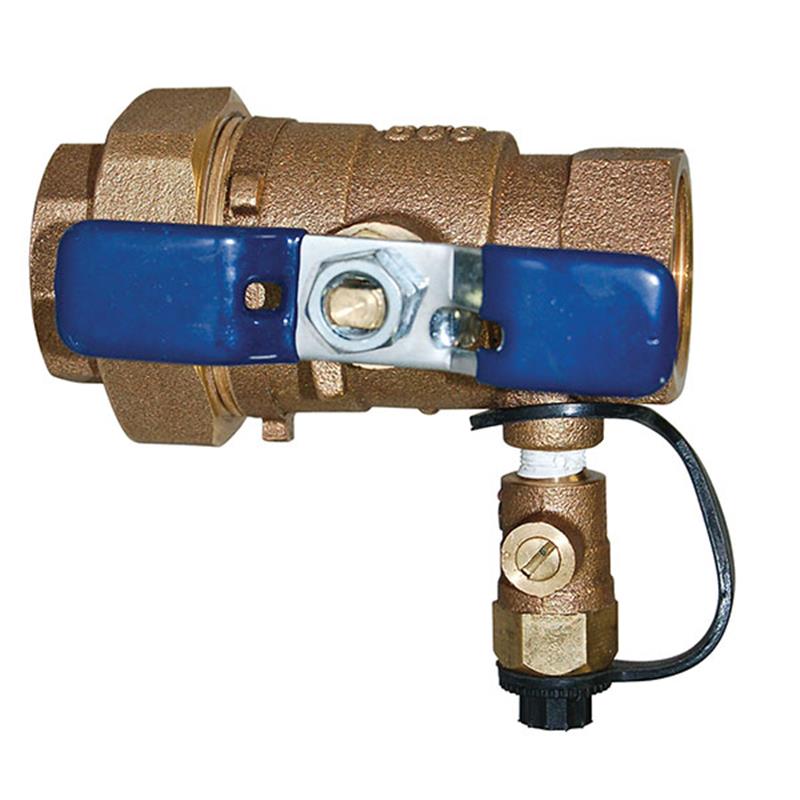

Febco LF622UFT 1 1/2" IPS Union Ball Valve QT Tapped For Test Cock

Item Number: 781297LL
Skip to product information
1 of 1
Regular price $355.12
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco

  • Lead Free* Bronze Construction
  • Full Port Design for low pressure drop
  • Tapped Side Outlet for pressure gauge or test cock
  • Union End for easy installation
  • Max Operating Pressure: 600 PSI WOG (non-shock)
  • Max Operating Pressure: 125 PSI Saturated Steam
  • Temperature Range: 0°F to +350°F
  • Quarter-turn Operation with Lever Handle

Description

This Febco LF622UFT 1 1/2" full port bronze ball valve features a union end and a tapped side outlet for a pressure gauge or test cock. Designed for non-health hazard applications, it supports steam service and non-abrasive fluids, offering minimal pressure drop. It is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, with a temperature range of 0°F to 350°F. The valve includes PTFE seats and stem packing, a chrome-plated lead-free brass ball, and a durable lever handle. Its lead-free copper silicon alloy body ensures compliance with reduced lead content standards. Item number 781297LL.

Help Me Connect

The Febco LF622UFT ball valve features 1 1/2 inch IPS threaded connections for mainline piping. One end is a union fitting, allowing for easier installation and removal without needing to rotate the entire pipe run. Additionally, a 1/4 inch IPS threaded tapped side outlet is provided for the direct installation of a pressure gauge or test cock.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622UFT 1 1/2 inch Lead Free Full Port Ball Valve features a union end and a tapped side outlet, making it ideal for non-health hazard applications with steam service and non-abrasive fluids. Its design allows for convenient installation of pressure gauges or test cocks while ensuring minimal pressure drop due to its full port.

Features

  • Lead Free* construction ensures compliance with reduced lead content standards.
  • Full port design provides maximum flow and low pressure drop.
  • Equipped with a PTFE stem packing seal, thrust washer, and seat for reliable performance.
  • Operates with a quarter-turn lever handle for quick open and close action.
  • Suitable for throttling and balancing non-abrasive fluids where minimum flow is 20% to 100% of valve capacity.
  • Designed with a bottom loaded, pressure retaining stem.

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Nominal Size: 1 1/2 inch (DN40)
  • Valve Type: Full Port Ball Valve
  • Connection Type: Threaded x Threaded, Union End
  • Tapped Side Outlet: Yes
  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Cv Factor (1 1/2"): 130 GPM (492.1 L/psi)
  • Weight (1 1/2" LF622UFT): 3.7 lbs (1.7 kgs)

Materials of Construction

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Ball Seal: PTFE
  • Packing: PTFE
  • Stem Washer: PTFE
  • Handle: Plated Steel w/ Vinyl Insulator
  • Nut: Plated Steel

Certificates & Approvals

  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Content Compliance: Complies with state codes and standards requiring reduced lead content

FAQs

What are the primary applications for this Febco LF622UFT valve?

This valve is designed for non-health hazard applications, specifically for steam service and systems handling non-abrasive fluids. It's also suitable for throttling and balancing these fluids.

What are the pressure ratings for this ball valve?

The valve is rated for 600 PSI WOG (water, oil, gas) non-shock and 125 PSI for saturated steam applications.

What types of connections does this Febco LF622UFT valve offer?

It features 1 1/2 inch IPS threaded connections. One end includes a union for easy installation, and there is a 1/4 inch IPS tapped side outlet for a pressure gauge or test cock.

What materials are used in the construction of this valve?

The body and end cap are made from Lead Free* Cast Copper Silicon Alloy, the ball is Chrome Plated Lead Free* Brass, and the stem is Brass. Seals and packing are made of PTFE.

Is a test cock or pressure gauge included with the valve?

No, the valve includes a tapped side outlet for a pressure gauge or test cock, but these components are sold separately and not included with the valve.
