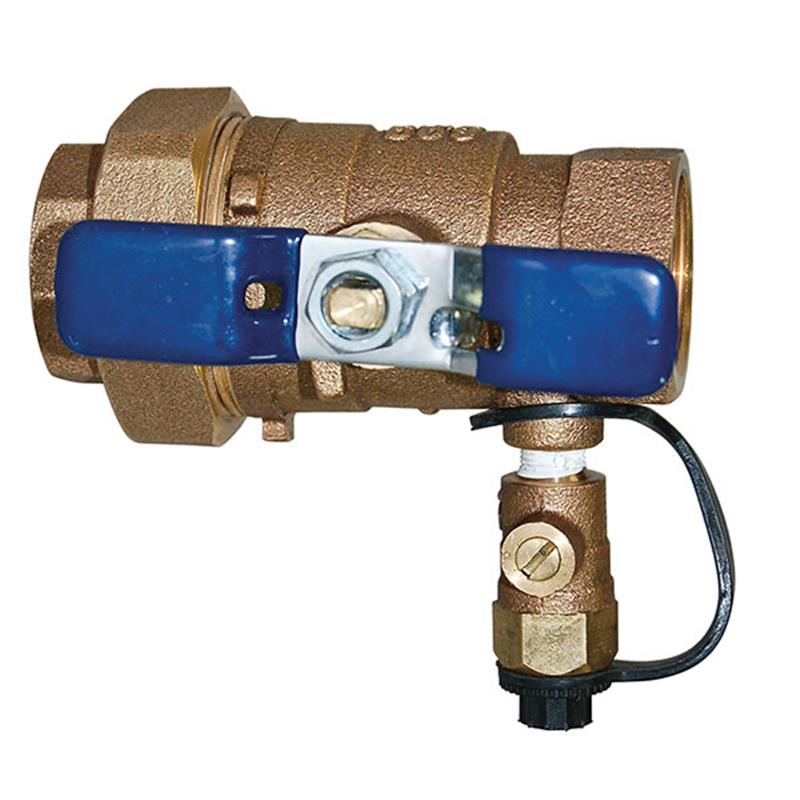

Febco LF622UFT 1" IPS Union Ball Valve QT Tapped For Test Cock

Item Number: 781295LL
1 1
$130.87
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Valve Size: 1 inch
  • Weight: 1.97 lb
  • Connection: Thread x Thread with Union End
  • Tapped Side Outlet: Yes, for pressure gauge or test cock
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free Brass
  • Maximum Operating Pressure (WOG): 600 PSI
  • Maximum Operating Pressure (Saturated Steam): 125 PSI
  • Handle Type: Tee Handle

Description

The Febco LF622UFT 1 inch Lead Free Full Port Union Ball Valve is engineered for reliable use in steam service and balancing non-abrasive fluids. Constructed with a lead-free cast copper silicon alloy body and chrome-plated brass ball, it meets stringent lead-free requirements. Its full port design ensures minimal pressure drop, while the union end simplifies installation and maintenance. This valve is rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, with an operating temperature range of 0°F to +350°F. A tapped side outlet allows for easy integration of a pressure gauge or test cock. Item number 781295LL.

Help Me Connect

Connections

This 1 inch Febco LF622UFT ball valve features threaded (NPT) connections on both ends, with a union end for easier installation and maintenance. The union allows for convenient disassembly without disturbing adjacent piping. The valve also includes a tapped side outlet designed for attaching a pressure gauge or a test cock, enabling system monitoring. The 1 inch NPT threads connect to corresponding 1 inch NPT male or female piping, depending on the specific configuration of your system and the orientation of the union end.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Additional Details

The Febco LF622UFT 1 inch lead free full port union ball valve with a tapped side outlet is designed for reliable performance in steam service applications. It is also ideal for throttling and balancing non-abrasive fluids where minimum flow is maintained between 20% and 100% of valve capacity.

Key Features

  • Lead Free* construction ensures compliance with installation requirements (wetted surface contains less than 0.25% lead by weight).
  • Full port design minimizes pressure drop for efficient fluid flow.
  • Quarter-turn operation provides quick open and close functionality.
  • Equipped with a plated carbon steel tee handle and vinyl insulator for comfortable use.
  • Features PTFE stem packing seal, thrust washer, and seat for durability and leak resistance.
  • Includes a bottom loaded, pressure retaining stem and an adjustable stem packing gland.
  • Designed for low operating torque.
  • A tapped side outlet is suitable for the installation of pressure gauges or test cocks.

Specifications

  • Valve Size: 1 inch
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Packing Nut Material: Brass
  • Ball Seal Material: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Nut Material: Plated Steel
  • Port Type: Full Port
  • Connection Type: Threaded x Threaded with Union End
  • Tapped Side Outlet: Yes (for pressure gauge or test cock)
  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Cv Factor: 60 GPM/PSI (227.1 L/sqrt(psi))
  • Handle Type: Tee Handle
  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A
  • Lead Free Compliance: Wetted surface contains less than 0.25% lead by weight

FAQs

What are the primary applications for the Febco LF622UFT 1 inch ball valve?

This valve is designed for steam service applications and is ideal for throttling and balancing non-abrasive fluids, provided the minimum flow is maintained between 20% and 100% of valve capacity.

What does 'Lead Free' mean for this product?

The 'Lead Free' designation indicates that the wetted surfaces of this valve, which come into contact with consumable water, contain less than 0.25% of lead by weight, ensuring compliance with relevant installation requirements.

What are the pressure and temperature ratings of this valve?

The Febco LF622UFT valve is rated for 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam. It can operate effectively within a temperature range of 0°F to +350°F (-18°C to 177°C) at 50 PSI.

Does the valve come with a test cock or pressure gauge?

No, the valve includes a tapped side outlet that is suitable for installing a pressure gauge or test cock, but these accessories are sold separately and are not included with the valve.

What type of handle is included with the 1 inch LF622UFT ball valve?

The 1 inch model of this valve comes standard with a plated carbon steel tee handle, which is equipped with a vinyl insulator for a comfortable and secure grip during operation.
