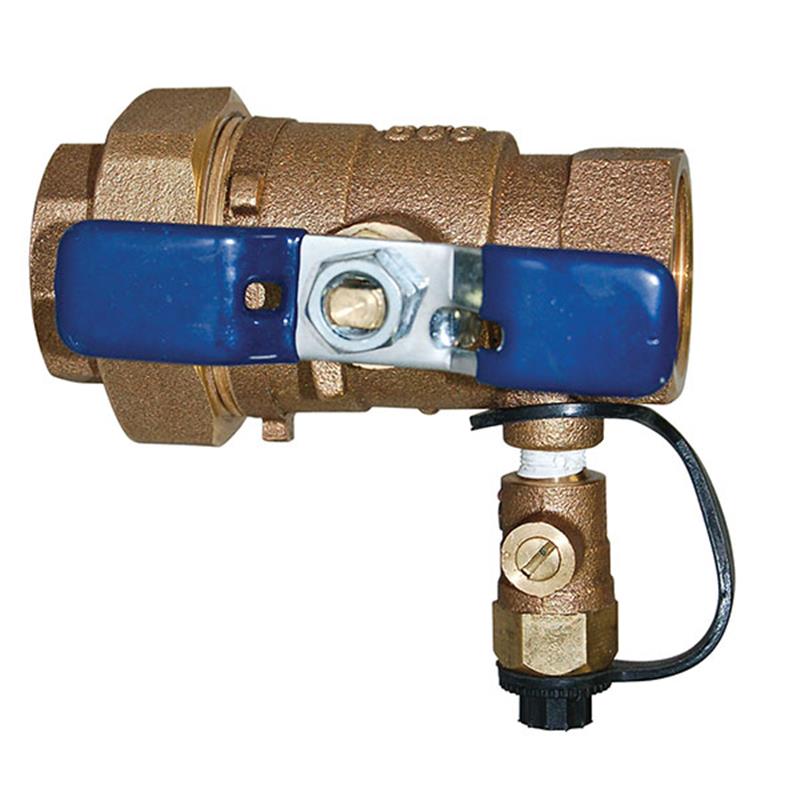

Febco LF622UFT 2" IPS Union Ball Valve QT Tapped For Test Cock
Item Number: 781298LL
1
/
of
1
Regular price
$551.63
Limited Stock
(6)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Febco
Couldn't load pickup availability
- Valve Type: Full Port Union Ball Valve
- Weight: 6.97 lb
- Connection Size: 2 inch IPS
- Tapped Outlet Size: 1/4 inch IPS
- Body Material: Lead Free Cast Copper Silicon Alloy
- Ball Material: Chrome Plated Lead Free Brass
- Max Pressure WOG (non-shock): 600 PSI
- Max Pressure Saturated Steam: 125 PSI
- Temperature Range: 0°F to +350°F
Description
Description
The Febco LF622UFT 2 inch full port union ball valve is constructed from lead-free cast copper silicon alloy with a chrome-plated lead-free brass ball. Designed for steam service and applications requiring a tapped side outlet for pressure gauges or test cocks, this valve ensures minimal pressure drop with its full port design. It offers a maximum operating pressure of 600 PSI WOG (non-shock) or 125 PSI for saturated steam, with a temperature range of 0°F to +350°F. The union end facilitates easy installation and maintenance. Item number 781298LL.
Help Me Connect
Help Me Connect
Main Line Connections
- This valve features 2 inch IPS (Iron Pipe Size) threaded connections on both ends.
- It is designed to connect to compatible 2 inch male IPS threads.
- One end includes a union connection for simplified installation and removal from your piping system.
Tapped Side Outlet
- A 1/4 inch IPS threaded side outlet is provided for the installation of a pressure gauge or a test cock (sold separately).
Warranty Information
Warranty Information
Limited WarrantyFEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.Service PolicyFor inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.

Collapsible content
Additional Details
This Febco LF622UFT is a 2 inch full port union ball valve designed for steam service applications. It features a tapped side outlet for installing a pressure gauge or test cock.
Key Features
- Lead Free* construction to comply with reduced lead content requirements
- Full port design for minimal pressure drop
- Quarter-turn open or close operation
- Low operating torque
- Adjustable stem packing gland
- Bottom loaded, pressure retaining stem
- PTFE stem packing seal, thrust washer, and seat for reliable sealing
- Chrome plated lead free brass ball
- Plated steel tee handle with vinyl insulator
Connections
- The main connections are 2 inch IPS threaded ends, with one end featuring a union for easy installation and removal.
- The side outlet is a 1/4 inch IPS thread, suitable for installing a test cock or pressure gauge.
Specifications
- Valve Type: Full Port Ball Valve with Union Ends
- Body Material: Lead Free Cast Copper Silicon Alloy
- End Cap Material: Lead Free Cast Copper Silicon Alloy
- Ball Material: Chrome Plated Lead Free Brass
- Stem Material: Brass
- Seal/Seat/Packing Material: PTFE
- Stem Washer Material: PTFE
- Handle Type: Tee Handle
- Handle Material: Plated Steel with Vinyl Insulator
- Nut Material: Plated Steel
- Connection Size: 2 inch IPS
- Tapped Outlet Size: 1/4 inch IPS
- Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.4 bar)
- Maximum Operating Pressure (Saturated Steam): 125 PSI (8.6 bar)
- Temperature Range: 0°F to +350°F (-18°C to 177°C)
Certificates & Approvals
- UL Listed
- IAPMO Listed
- ICC Listed
- ASSE Type II, Composition B2, Style 3, End Connection A
- Complies with Lead Free* requirements
FAQs
What is the primary intended use of the Febco LF622UFT ball valve?
This valve is primarily designed for steam service applications and situations where a tapped side outlet is needed for installing a pressure gauge or test cock. It provides quarter-turn open or close operation.
What are the connection sizes for this valve?
The main line connections feature 2 inch IPS (Iron Pipe Size) threaded ends. Additionally, there is a 1/4 inch IPS tapped side outlet specifically for a test cock or pressure gauge.
What materials is the valve constructed from?
The body and end cap are made from Lead Free Cast Copper Silicon Alloy. The ball is Chrome Plated Lead Free Brass, and the stem is Brass. Internal seals, seats, and packing are made from PTFE for reliable performance.
What are the maximum pressure and temperature ratings for this valve?
This valve is rated for a maximum operating pressure of 600 PSI WOG (water, oil, gas) non-shock and 125 PSI for saturated steam. It can operate effectively within a temperature range of 0°F to +350°F.
Is this valve suitable for throttling flow?
No, according to the manufacturer, this quarter-turn valve is not intended for throttling applications. It is designed for quarter-turn open or close operation to fully open or fully close the flow.
