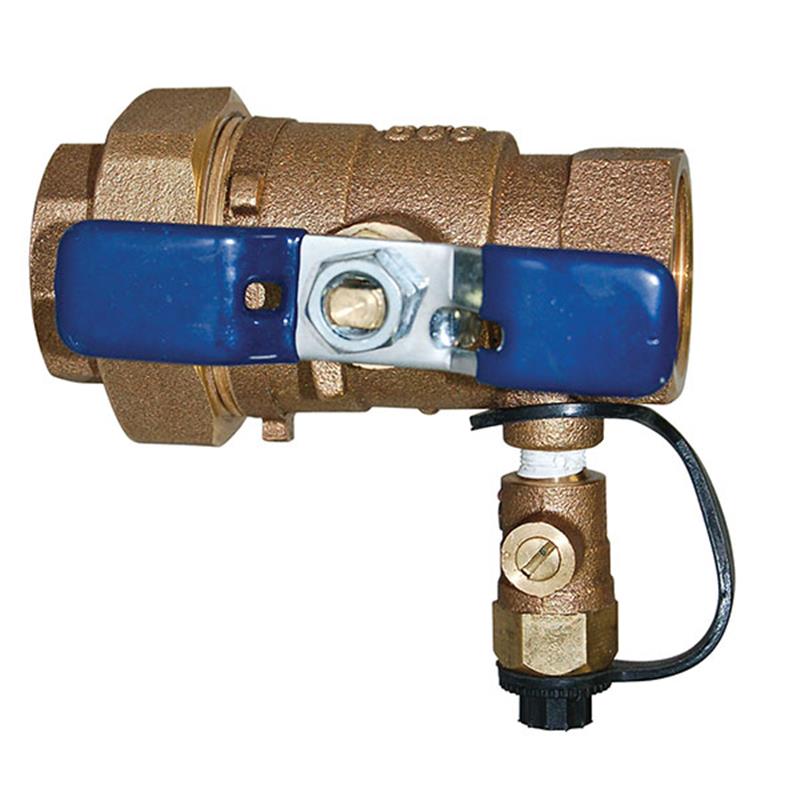

Febco LF622UFT 3/4" IPS Union Ball Valve QT Tapped For Test Cock

Item Number: 781294LL
Skip to product information
1 of 1
Regular price $99.00
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco

  • Size: 3/4 inch
  • Weight: 1.21 lb
  • Connection Type: NPT Threaded, Union End
  • Tapped Side Outlet: 1/8 inch - 27 for pressure gauge or test cock
  • Material: Lead Free* Cast Copper Silicon Alloy Body
  • Ball Material: Chrome Plated Lead Free* Brass
  • Maximum Operating Pressure (WOG): 600 PSI (Non-Shock)
  • Handle Type: Tee Handle
  • Port Type: Full Port for low pressure drop

Description

The Febco LF622UFT is a 3/4 inch lead free full port union ball valve, designed for steam service and non-abrasive fluid control applications. Its full port design ensures low pressure drop, while the lead free* bronze body and chrome plated brass ball provide durability and compliance with lead free standards. Rated for 600 PSI WOG (non-shock) and 125 PSI saturated steam, it operates efficiently across a 0°F to +350°F temperature range. The valve includes a tee handle and a 1/8 inch - 27 tapped side outlet for pressure gauges or test cocks.

Help Me Connect

Connections

  • This valve features 3/4 inch NPT threaded connections for easy installation into compatible piping systems.
  • It includes a union end, allowing for convenient installation or removal without disturbing the rest of the piping.
  • A 1/8 inch - 27 tapped side outlet is provided for the installation of a pressure gauge or a test cock (sold separately), allowing for easy pressure monitoring or system testing.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

The Febco LF622UFT 3/4 inch union ball valve is a lead free full port bronze valve designed for steam service and general purpose applications with non-abrasive fluids. This valve features a tapped side outlet for the installation of a pressure gauge or test cock (test cock sold separately).

It is ideal for throttling and balancing applications where minimum flow is 20% to 100% of valve capacity, ensuring a low pressure drop with its full port design.

Features

  • Lead Free* construction complies with installation requirements
  • Full port design for minimal pressure drop
  • Tee handle standard for 3/4 inch sizes
  • PTFE stem packing seal, thrust washer, and seat
  • Bottom loaded, pressure retaining stem
  • Quarter-turn open or close operation (not for throttling applications)
  • Plated carbon steel handle with vinyl insulator
  • Adjustable stem packing gland
  • Low operating torque

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

General

  • Product Type: Full Port Ball Valve
  • Series: LF622UFT
  • Valve Size: 3/4 inch
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • End Cap Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Ball Seal: PTFE
  • Packing Material: PTFE
  • Stem Washer Material: PTFE
  • Handle Material: Plated Steel w/ Vinyl Insulator
  • Nut Material: Plated Steel
  • Port Type: Full Port
  • Handle Type: Tee Handle
  • Operation: Quarter-turn
  • Minimum Flow Capacity: 20% of valve capacity
  • Maximum Flow Capacity: 100% of valve capacity

Performance

  • Maximum Operating Pressure WOG (Non-Shock): 600 PSI (41.4 bar)
  • Maximum Operating Pressure Saturated Steam: 125 PSI (8.6 bar)
  • Temperature Range: 0°F to +350°F (-18°C to 177°C) at 50 PSI (345 kPa)
  • Cv Factor (GPM): 30
  • Cv Factor (LITERS): 113.6

Connections

  • Inlet Connection: 3/4 inch NPT Thread
  • Outlet Connection: 3/4 inch NPT Thread
  • Union End: Yes
  • Tapped Side Outlet: Yes
  • Tapped Side Outlet Thread: 1/8 inch - 27

Certificates & Approvals

  • Lead Free* Compliant
  • Federal Specification: WW-V-35C, Type II, Composition, BZ, Style 3, End Connection A

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

FAQs

What type of applications is the Febco LF622UFT valve suitable for?

This valve is designed for steam service applications and ideal for throttling and balancing non-abrasive fluids where the minimum flow is 20% to 100% of valve capacity.

What is the pressure rating of this ball valve?

The valve is rated for 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI for saturated steam applications.

What materials are used in the construction of the LF622UFT valve?

The body is made from Lead Free* Cast Copper Silicon Alloy, the ball is Chrome Plated Lead Free* Brass, and the stem, seals, and seats utilize Brass and PTFE components.

Does this valve include a union end connection?

Yes, the LF622UFT model incorporates a union end for convenient installation and removal without requiring full disassembly of the piping system.

Can a pressure gauge or test cock be installed on this valve?

Yes, this valve features a 1/8 inch - 27 tapped side outlet specifically designed for the installation of a pressure gauge or a test cock (sold separately).
