FP-BF-BMS 2.5-10 909

Item Number: 88003050
1 1
$717.79
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Compatibility: Watts LF909 Large 2 1/2 to 10 inch assemblies
  • Weight: 0.8 lb
  • Detects potential flood conditions from relief valve discharge
  • Provides continuous monitoring capability
  • Connects to third-party Building Management Systems (BMS)
  • Includes activation module with 8-foot cable
  • Includes 24V DC power adapter
  • Includes ground wire
  • Customizable for wet threshold and timer delay

Description

The Watts SentryPlus Alert BMS Flood Sensor Connection Kit (88003050) is designed to provide flood protection for Watts LF909 Large reduced pressure backflow preventers, sizes 2 1/2 to 10 inches. This kit includes an activation module with an 8-foot cable, a 24V DC power adapter, and a ground wire. It activates the integrated flood sensor on the backflow preventer to detect excessive water discharge from the relief valve, signaling potential flooding. The module connects to third-party Building Management Systems (BMS) via a dry contact output, enabling continuous monitoring and alerts. Customizable settings for wet threshold and timer delay help prevent false alarms.

Help Me Connect

This Watts SentryPlus Alert BMS Flood Sensor Connection Kit is designed for specific Watts LF909 Large reduced pressure backflow preventer assemblies, compatible with sizes ranging from 2 1/2 to 10 inches.

The activation module with its 8-foot cable attaches directly to the factory-installed flood sensor on the relief valve of the compatible assembly. The system is engineered to provide a signal to a third-party Building Management System (BMS) via a dry contact output.

A 24V DC power source (from the included power adapter) and a 120VAC, 60Hz, GFI-protected electrical outlet are required. The ground wire from the kit should be run to the BMS controller or the Cellular Gateway, or any other metal earth ground.

View full details

Additional Details

The Watts SentryPlus Alert BMS Flood Sensor Connection Kit provides flood protection for reduced pressure backflow preventers.

This kit activates the integrated flood sensor on compatible valves, enabling flood detection capabilities by monitoring for excessive water discharge from the assembly relief valve.

Features

  • Installs with no disruption to service
  • Detects excessive water discharge from the assembly relief valve
  • Activates the flood sensor and provides connectivity to third-party building management systems (BMS)
  • Connects to BMS through dry contact output from the kit, requiring no communication protocol integration
  • Is customizable for wet threshold and timer delay to prevent false alarms

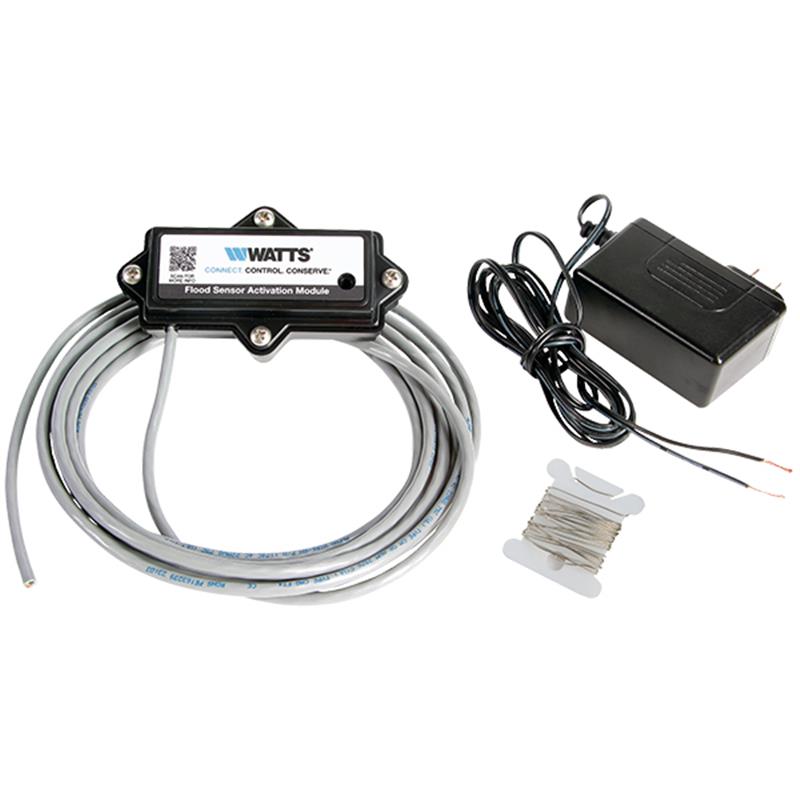

Contents (BMS Flood Sensor Connection Kit)

  • Activation module with 8-foot cable
  • Power adapter, 24V DC
  • Ground wire

Specifications

  • Kit Type: BMS Flood Sensor Connection Kit
  • Brand: Watts
  • SKU (BMS Kit Code): 88003050

Compatibility

  • Compatible Series: Watts LF909 Large
  • Compatible Sizes: 2 1/2 inch to 10 inch

Activation Module

  • Weight: Less than 0.25 lb
  • Integrated Cable Length: 8-foot
  • Adjustable Settings: Wet threshold, Timer delay

Power Adapter

  • Output DC Voltage: 24V ±2.0%
  • Output Current Range: 0 - 1.04A
  • Input Voltage Range: 90 - 264VAC
  • Input Frequency Range: 47 - 63Hz
  • Input AC Current: 0.7A/115VAC 0.35A/230VAC

Ground Wire

  • Gauge: 24 AWG
  • Material: Solid core, uninsulated, tinned copper wire
  • Length: 5 feet
  • Compliance: RoHS compliant

FAQs

What is included in the BMS Flood Sensor Connection Kit?

The kit includes an activation module with an 8-foot cable, a 24V DC power adapter, and a ground wire.

What is the primary purpose of this kit?

This kit's primary purpose is to provide flood protection for reduced pressure backflow preventers by detecting excessive water discharge from the assembly's relief valve and connecting to a Building Management System for alerts.

Which backflow preventer models are compatible with this kit?

This kit is compatible with Watts LF909 Large series assemblies, specifically for sizes ranging from 2 1/2 inches to 10 inches.

How does this kit connect to a building management system?

The kit connects to a Building Management System (BMS) through a dry contact output from the activation module, which means no complex communication protocol integration is required.

Are the flood detection settings adjustable?

Yes, the activation module includes customizable settings for both wet threshold and timer delay, allowing users to fine-tune the system and prevent false alarms from intermittent discharges.
