FP-BF-CFS 2.5-10 909

Item Number: 88003052
1 1
$1,794.87
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Cellular Flood Sensor Connection Kit
  • Weight: 1.4 lb
  • Compatible with Watts LF909 Large (2 1/2 to 10 IN) Reduced Pressure Backflow Preventers
  • Detects potential flood conditions from relief valve discharge
  • Provides continuous monitoring
  • Issues multi-channel alerts via email, phone call, and text message
  • Includes Activation Module, Cellular Gateway, Power Adapter, and Ground Wire
  • Customizable wet threshold and timer delay settings
  • Ground Wire: 24 AWG, 5 feet, RoHS compliant

Description

The Watts SentryPlus Alert® Cellular Flood Sensor Connection Kit (SKU 88003052) provides continuous flood protection for Watts LF909 Large reduced pressure backflow preventers in sizes 2 1/2 to 10 inches. This kit detects excessive relief valve discharge and issues multi-channel alerts via email, phone, or text through the Watts Syncta Cloud IoT platform. It includes a sensor activation module, cellular gateway, power adapter, and ground wire, ensuring robust monitoring and timely notifications to prevent property damage. The system features customizable wet threshold and timer delay settings for tailored flood detection.

Help Me Connect

This cellular flood sensor connection kit is designed for specific Watts Reduced Pressure Backflow Preventer assemblies to provide enhanced flood detection and alerting capabilities.

The kit's activation module cable connects directly to the factory-installed flood sensor located on the backflow preventer's relief valve. The included cellular gateway then connects to the activation module and communicates with the Watts Syncta Cloud IoT platform to manage alerts.

Compatible Watts Assembly Series

  • Watts LF909 Large (sizes 2 1/2 to 10 IN)
View full details

Additional Details

This cellular flood sensor connection kit from Watts SentryPlus Alert® provides flood protection for reduced pressure assemblies by enabling flood detection capabilities.

It includes a sensor activation module, cellular gateway, power adapter, and ground wire. Use this kit to activate the integrated flood sensor, offering continuous monitoring for potential flood conditions and issuing multi-channel alerts.

Features

  • Installs with no disruption to service
  • Detects excessive water discharge from the assembly relief valve
  • Activates the flood sensor and provides connectivity to the Watts Syncta Cloud IoT platform
  • Issues alerts by email, phone call, and text message
  • Customizable for wet threshold and timer delay settings
  • Provides continuous monitoring for potential flood conditions

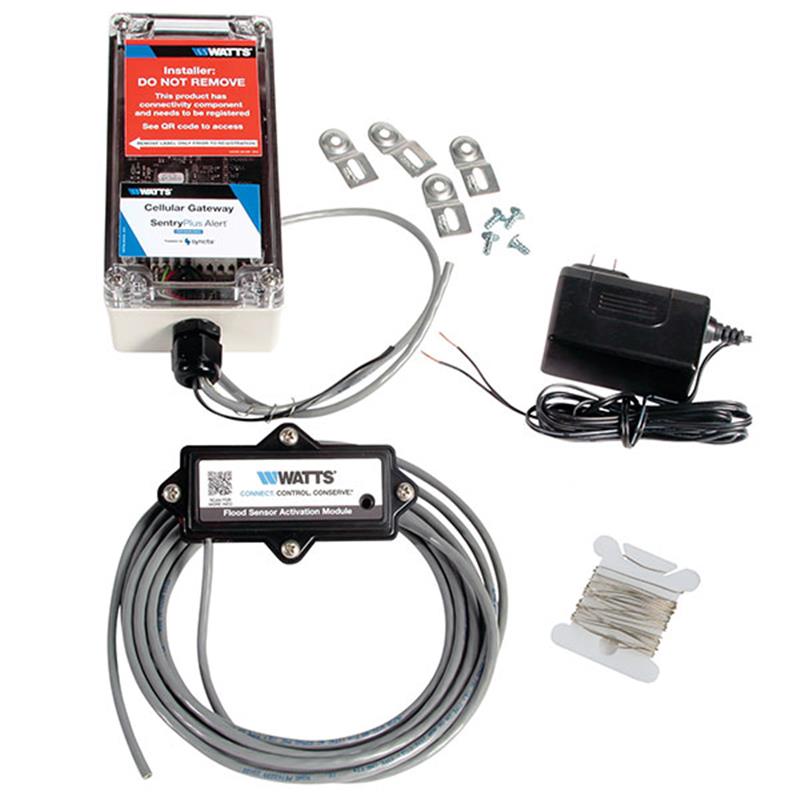

Contents of Cellular Flood Sensor Connection Kit (SKU 88003052)

  • Activation module with 8-foot cable
  • Cellular Gateway with mounting hardware
  • Power adapter, 24V DC
  • Ground wire

NOTICE: Use of SentryPlus Alert Flood Sensor Connection Kit does not replace the need to comply with all required instructions, codes, and regulations related to the installation, operation, and maintenance of the relief valve to which it is attached, including the need to provide proper drainage in the event of a discharge.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

  • Kit Type: Cellular Flood Sensor Connection Kit
  • Compatibility: Watts LF909 Large (sizes 2 1/2 to 10 IN)

Activation Module

  • Weight: <0.25 lb.
  • Settings: Adjustable wet threshold and timer delay

Ground Wire

  • AWG: 24 AWG
  • Material: Solid core, uninsulated, tinned copper wire
  • Length: 5 feet

Power Adapter

  • Output DC Voltage: 24V ±2.0%
  • Output Current Range: 0 ~ 1.04A
  • Input Voltage Range: 90 ~ 264VAC
  • Input Frequency Range: 47 ~ 63Hz
  • Input AC Current: 0.7A (115VAC), 0.35A (230VAC)

Certificates & Approvals

  • RoHS compliant (Ground Wire)

FAQs

What is included in the Watts SentryPlus Alert Cellular Flood Sensor Connection Kit (88003052)?

This kit includes a sensor activation module with an 8-foot cable, a cellular gateway with mounting hardware, a 24V DC power adapter, and a 5-foot ground wire.

What is the primary purpose of this cellular flood sensor connection kit?

This kit is designed to upgrade Watts reduced pressure backflow preventers, specifically the LF909 Large series (sizes 2 1/2 to 10 inches), to include flood protection by detecting excessive water discharge from the relief valve.

Which backflow preventer models are compatible with this kit?

This cellular flood sensor connection kit (SKU 88003052) is specifically for use with Watts LF909 Large model sizes ranging from 2 1/2 inches to 10 inches.

How does the kit notify users of flood conditions?

When the flood sensor detects a qualifying discharge, the cellular gateway communicates with the Watts Syncta Cloud IoT platform, which then issues alerts to registered users via email, phone call, and text message.

Are the alert settings adjustable for this flood sensor kit?

Yes, the activation module includes adjustable settings for both the wet threshold (sensitivity to water discharge) and the timer delay (duration before an alarm is triggered), allowing for customization.
