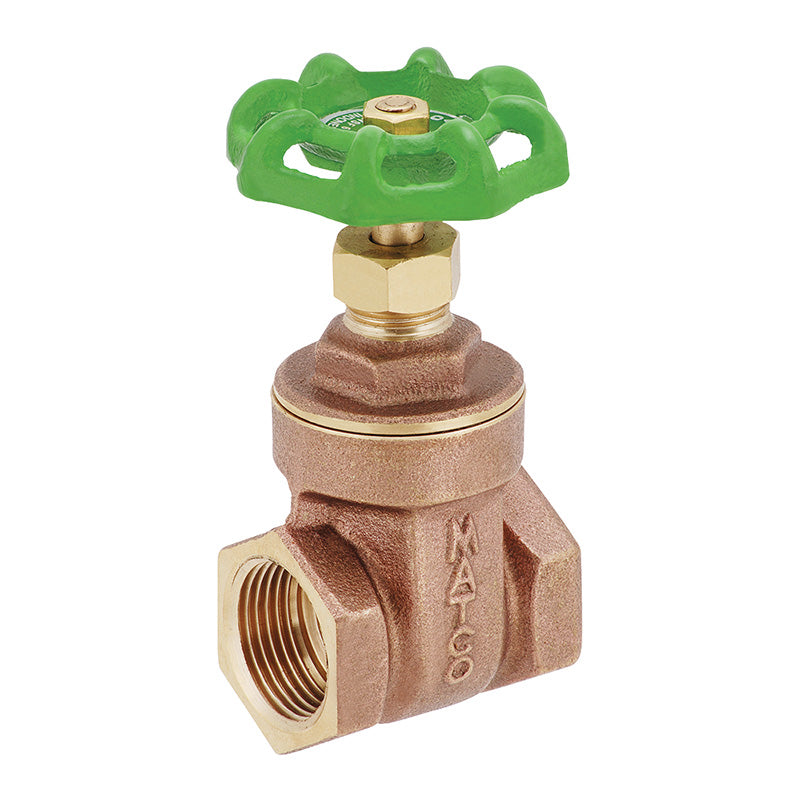

GATE VALVE, 2 FNPT LEAD FREE
Item Number: MN15758
1
/
of
1
Regular price
$183.83
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Matco-Norca
Couldn't load pickup availability
- Size: 2 inch
- Connection Type: Female NPT
- Body Material: Cast Bronze
- Stem Type: Non-Rising
- Port Type: Full Port
- Working Pressure: 300 WOG - 150 SWP
- Certifications: NSF 61 and 372 Certified
- Bonnet Type: Threaded
Description
Description
The 2 inch Female NPT Lead Free Gate Valve (MN15758) by Matco-Norca is a full-port, non-rising stem valve engineered for reliable slow-close shutoff on backflow assemblies, especially those attached to fire hydrants. Constructed with a durable cast bronze body and a threaded bonnet, it ensures long-lasting performance. This valve is rated for 300 WOG and 150 SWP, making it suitable for various water, oil, gas, and steam applications. It is NSF 61 and 372 Certified, guaranteeing compliance with strict standards for potable water. Its threaded ends meet ASME B1.20.1 standards for secure installation.
Help Me Connect
Help Me Connect
This valve features Female NPT threads on both ends, designed to connect to Male NPT threaded pipes or fittings. The 2 inch sizing ensures compatibility with standard 2 inch NPT systems.
- The female threaded ends comply with ASME B1.20.1 standards.
- Ensure mating connections also meet NPT standards for a secure and leak-free installation.

Collapsible content
Additional Details
This 2 inch Female NPT Lead Free Gate Valve is designed for use as a slow close shutoff on backflow assemblies, especially when attached to fire hydrants.
Features & Benefits
- Full Port design ensures unrestricted flow.
- Non-Rising Stem for minimal clearance requirements and visual indication of valve position.
- Rated for 300 WOG (Water, Oil, Gas) and 150 SWP (Saturated Steam Pressure).
- Features a Threaded Bonnet construction.
- NSF 61 and 372 Certified for potable water applications.
- Threaded ends comply with ASME B1.20.1 standards.
- Valves comply with MSS SP-61 and MSS SP-80.
Specifications
- Size: 2 inch
- Connection Type: Female NPT
- Body Material: Cast Bronze C89844
- Disc Material: Cast Bronze C89844
- Stem Material: 1/2"-2" Brass Rod C37700
- Bonnet Material: Cast Bronze C83600
- Handle Material: Cast Iron JIS ZZ2202
- Packing Material: PTFE, FIBRE
- Nut Material: Forged Brass C2600
- Packing Nut Material: Brass Rod C3770
- Gland Ring Material: Brass Rod C3770
- Lock Nut Material: Brass Rod C46400
- Name Plate Material: Aluminum A1100
- Working Pressure: 300 WOG - 150 SWP
Dimensions
- d (Nominal Bore): 1.93 inch
- D (Width): 3.53 inch
- H (Height): 5.99 inch
- L (Length): 2.70 inch
Certificates & Approvals
- NSF 61
- NSF 372
- MSS SP-61
- MSS SP-80
- ASME B1.20.1 (Threaded Ends)
FAQs
What is the primary application for this 2 inch gate valve?
This 2 inch Female NPT Lead Free Gate Valve is primarily used as a slow close shutoff mechanism on backflow assemblies, often found connected to fire hydrants for controlled water flow.
What are the pressure ratings for this valve?
This gate valve is rated for 300 WOG (Water, Oil, Gas) and 150 SWP (Saturated Steam Pressure), indicating its capacity to handle various fluid and steam pressures.
Is this valve certified for potable water use?
Yes, this valve is NSF 61 and NSF 372 Certified, making it suitable and approved for potable (drinking) water applications.
What material is the body of the valve made from?
The body of this gate valve is constructed from durable Cast Bronze C89844, ensuring robust performance and longevity in various environments.
What type of stem does this gate valve feature?
This gate valve features a Non-Rising Stem, which means the stem remains in a fixed vertical position as the valve opens and closes, requiring less overhead clearance.
