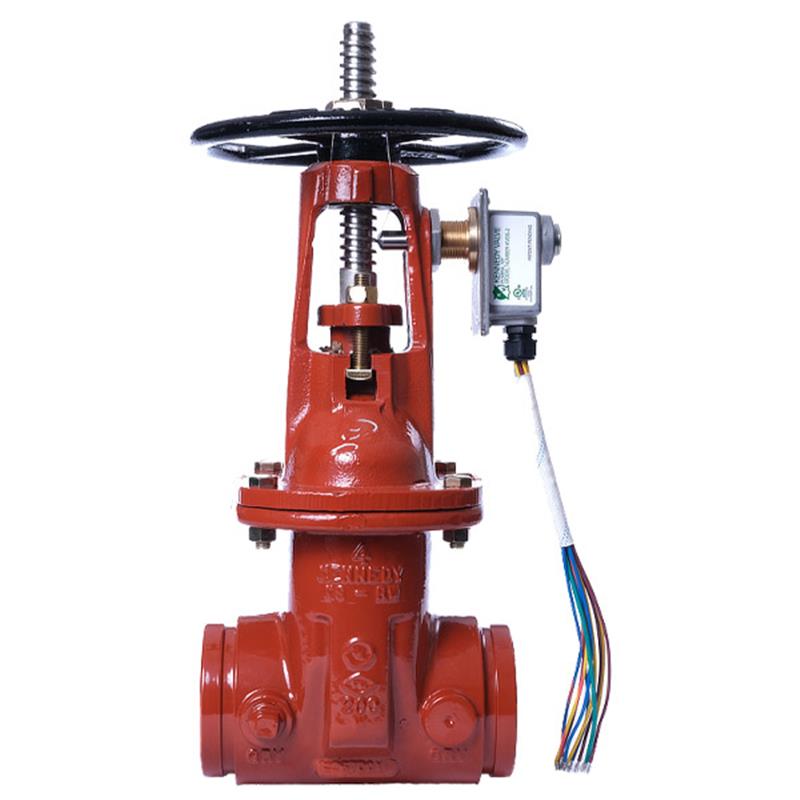

KV 3 OSY FxG Gate Valve w/Tamper

Item Number: KV3OSYFXG
Skip to product information
1 of 1
Regular price $1,223.33
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Kennedy Valves

  • Valve Type: Resilient Wedge Gate Valve, OS&Y
  • Nominal Size: 3 inch
  • Connections: Flanged x Grooved
  • Maximum Operating Pressure: 200 PSI
  • Wedge Material: EPDM Encapsulated Ductile Iron
  • Body Material: Ductile Iron (ASTM 70-50-05)
  • Stem Material: 304 Stainless Steel
  • Tamper Switch: KVOS-2 Factory Installed
  • Certifications: UL Listed, FM Approved, AWWA C515, AWWA C509

Description

The Kennedy Valve KV7092 3 OS&Y FxG Gate Valve is a UL-FM 200 PSI resilient wedge valve designed for fire protection and water service. This 3-inch valve features a durable ductile iron body, EPDM encapsulated wedge, and 304 stainless steel stem for reliable, bi-directional on-off flow control. Its Flanged x Grooved connections provide versatile installation options. A factory-installed KVOS-2 tamper switch offers integrated system monitoring. Fully compliant with AWWA C515 and C509, and coated with an FDA/AWWA C550 compliant epoxy, this valve ensures long-term performance and safety in critical applications.

Help Me Connect

Connections

  • The flanged end connects to an ANSI Class 125 Flat Face Flange using 4 bolts of 5/8 inch diameter.
  • The grooved end connects to standard 3 inch IPS Grooved piping, secured with a mechanical coupling.

Tamper Switch Integration

The integrated KVOS-2 tamper switch requires connection to power limited circuitry. This auxiliary switch is intended for supplemental use for fire alarm signaling applications, providing a signal when the valve position changes by two turns from open.

View full details

Collapsible content

Additional Details

The Kennedy Valve KV7092 3 OS&Y FxG Gate Valve is a 3 inch UL-FM 200 PSI resilient wedge gate valve, part of the Series 7000 Model 2638, designed for critical fire protection and water service applications. This OS&Y (Outside Stem and Yoke) valve provides bubble tight, bi-directional, on-off flow control and includes a factory-installed tamper switch for enhanced system monitoring.

Connections

  • One side features a 3 inch ANSI Class 125 Flat Face Flange for secure bolting.
  • The opposite side features 3 inch IPS Grooved Ends for easy coupling connections.

Key Features

  • UL Listed and FM Approved for reliable performance in fire safety systems.
  • Features an EPDM encapsulated ductile iron wedge for superior sealing and durability.
  • Includes a KVOS-2 factory-installed tamper switch, activating within two turns from open, to signal valve position.
  • Coated with a high-performance heat curable, thermosetting fusion bonded epoxy system that is FDA Title 21 Section 175.300 accepted and AWWA C550 compliant.
  • Utilizes triple EPDM o-ring stem seals and o-rings at the bonnet-to-body connection for best-in-class performance.

Construction

  • Body is constructed from durable ductile iron formulated to ASTM 70-50-05.
  • Stem is made of ASTM A276 Type 304ss stainless steel.
  • Handwheel is made from cast iron.

Specifications

  • Valve Type: Resilient Wedge Gate Valve, OS&Y
  • Model: Series 7000, Model 2638
  • Nominal Size: 3 inch
  • Maximum Operating Pressure: 200 PSI
  • Connections: Flanged x Grooved (Fig. 7092)
  • Stem Type: OS&Y (Outside Stem and Yoke)
  • Flow Control: Bi-directional, On-Off
  • Tamper Switch: KVOS-2 Factory Installed

Materials

  • Body Material: Ductile Iron (ASTM 70-50-05)
  • Wedge Material: EPDM Encapsulated Ductile Iron
  • Stem Material: ASTM A276 Type 304ss Stainless Steel
  • Coating: Fusion Bonded Epoxy (FDA Title 21 Section 175.300 Accepted, AWWA C550 Compliant)
  • Handwheel Material: Cast Iron

Dimensions & Performance (3 inch Flange x Groove)

  • Dimension A: 8 inches
  • Dimension B: 18.875 inches
  • Dimension C: 15.625 inches
  • Dimension ØD: 10 inches
  • Bolts per Flange: 4
  • Bolt Size per Flange: 5/8 inch
  • Turns to Operate: 10
  • Weight (Flange x Groove): 57 lbs

Certificates & Approvals

  • UL Listed
  • FM Approved
  • AWWA C515
  • AWWA C509 Compliant
  • ISO 9001 Certified
  • ISO 14001 Certified
  • ISO 45001 Certified
  • USC Approved for Cross Connect
  • Certified Lead Free to NSF/ANSI/CAN 61 & 372 Standards
  • ULC Listed

FAQs

What is the primary application for the Kennedy Valve KV7092?

This resilient wedge gate valve is specifically designed for crucial fire protection systems and general water service applications, offering reliable on-off flow control.

What are the connection types for this 3 inch gate valve?

This valve features a Flanged x Grooved configuration. One side has an ANSI Class 125 Flat Face Flange, and the other side has IPS Grooved Ends, allowing for flexible installation.

What is the maximum operating pressure of this valve?

The Kennedy Valve KV7092 3 OS&Y FxG Gate Valve is rated for a maximum operating pressure of 200 PSI, ensuring robust performance under pressure.

Does this valve include a tamper switch?

Yes, this valve comes with a factory-installed KVOS-2 tamper switch, which is designed to signal changes in the valve's position, enhancing system monitoring for fire alarm applications.

What material is used for the valve body and wedge?

The valve body is constructed from durable ductile iron, formulated to ASTM 70-50-05. The wedge is made of EPDM encapsulated ductile iron for superior sealing and longevity.
