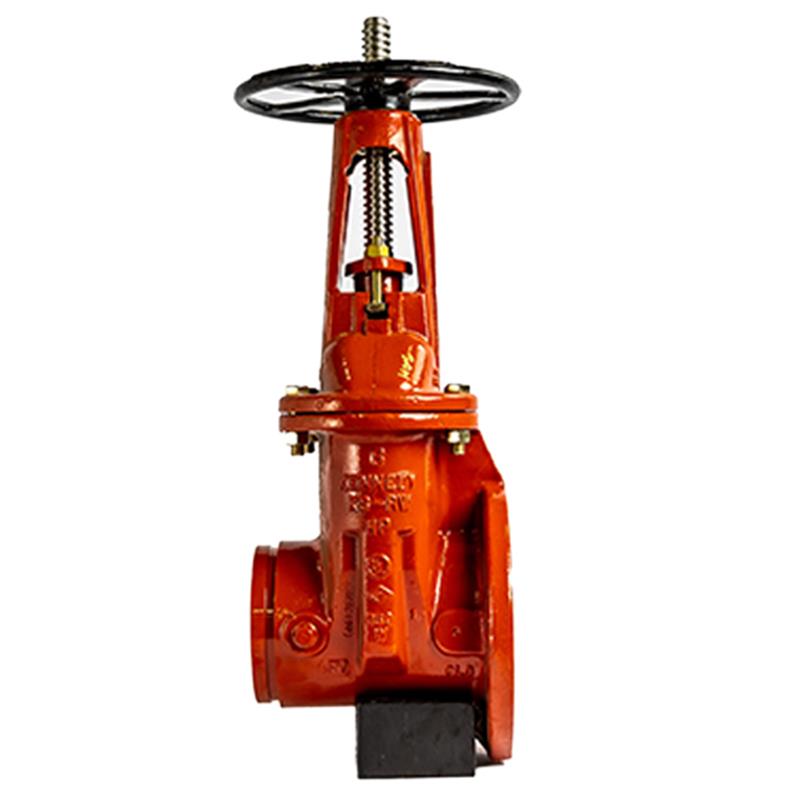

KV 4 OSY FxG Gate Valve w/Tamper

Item Number: KV4OSYFXG
Skip to product information
1 of 1
Regular price $1,329.14
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Kennedy Valves

  • Size: 4 Inch
  • Pressure Rating: 200 PSI
  • Valve Type: OS&Y Resilient Wedge Gate Valve
  • Connection: Flange x Groove
  • Body Material: Ductile Iron
  • Wedge: EPDM Encapsulated
  • Includes: Factory-Installed Tamper Switch (KVOS-2)
  • Certifications: UL Listed, FM Approved, NSF/ANSI/CAN 61 & 372

Description

The Kennedy Valve 4-inch OS&Y Resilient Wedge Gate Valve (KV4OSYFXG) is designed for fire protection and water service. This durable ductile iron valve features a triple EPDM O-ring stem seal and bonnet-to-body O-rings, ensuring bubble-tight, bi-directional flow control up to 200 PSI. Its flange x groove connections offer versatile installation options. The valve body is coated with an FDA-accepted fusion bonded epoxy for corrosion resistance. UL Listed and FM Approved, this valve comes standard with a factory-installed tamper switch for supervisory monitoring, making it ideal for critical system applications. Item number KV4OSYFXG.
View full details

Collapsible content

Additional Details

The Kennedy Valve Series 7000 KS-RW gate valve is a 4-inch OS&Y resilient wedge gate valve with flange x groove connections, designed for use in fire protection systems and water service applications.

This valve provides bubble-tight, bi-directional, on-off flow control and is constructed from durable ductile iron with an EPDM encapsulated wedge, ensuring reliable performance.

Connections

  • One side features an ANSI CL 125 flange for easy connection to flanged pipe systems.
  • The other side provides IPS grooved ends for mechanical coupling.

Features

  • Equipped with an OS&Y (Outside Stem & Yoke) design, which allows visual confirmation of the valve's open or closed position.
  • Includes a factory-installed tamper switch (KVOS-2) for monitoring valve position, suitable for supervisory signaling in fire protection systems.
  • The body is coated with a high-performance fusion bonded epoxy system, which is FDA Title 21 section 175.300 accepted and AWWA C550 compliant.
  • Features triple EPDM O-ring stem seals and bonnet-to-body O-rings for best-in-class performance and serviceability, with in-service replaceable packing.
  • Pre-notched stems are standard to accommodate tamper switches.

Note: The auxiliary tamper switch is intended for supervisory use only and should not be used for primary fire alarm signaling applications. Refer to NFPA 13, 25, 70, 72, CSA C22.1 No.1, and CAN/ULC-S524 standards for proper installation and use of supervisory switches in fire protection systems.

Specifications

  • Valve Type: Resilient Wedge Gate Valve
  • Operating Style: OS&Y (Outside Stem & Yoke)
  • Nominal Size: 4 Inch
  • Connection Type: Flange x Groove
  • Operating Pressure: 200 PSI
  • Body Material: Ductile Iron (ASTM 70-50-05)
  • Wedge Material: EPDM Encapsulated Ductile Iron
  • Coating: Fusion Bonded Epoxy (FDA Title 21 Sec. 175.300, AWWA C550 Compliant)
  • Stem Material: ASTM A276 Type 304ss
  • Seal Material: EPDM O-rings, Buna-N (packing)
  • Fasteners (OS&Y): Plated Steel (Stocked), Optional 304 Stainless Steel
  • Turns to Operate: 13.5
  • Weight: 77 lbs (Flange x Groove configuration)
  • Flow Coefficient (Cv) Full Open: 1500

Certificates & Approvals

  • UL Listed
  • FM Approved
  • AWWA C515 (4" to 12")
  • AWWA C509 Compliant
  • NSF/ANSI/CAN 61 & 372 Certified Lead Free by Alden Laboratories
  • USC Approved for Cross Connect
  • ISO 9001 Certified Manufacturing Standard
  • ISO 14001 Certified Manufacturing Standard
  • ISO 45001 Certified Manufacturing Standard
  • Buy American, Buy America, and BABA Compliant

FAQs

What is the primary use of this Kennedy Valve gate valve?

This 4-inch OS&Y resilient wedge gate valve is primarily used in fire protection systems and water service applications, providing reliable on-off flow control and system isolation.

What is the pressure rating for this 4-inch valve?

This 4-inch Kennedy Valve gate valve is UL Listed and FM Approved for an operating pressure of 200 PSI.

What type of connections does this valve have?

The KV4OSYFXG valve features a combination of connections: one side has an ANSI CL 125 flange, and the other side has IPS grooved ends for easy installation into various piping systems.

Does this valve include a tamper switch?

Yes, this valve comes with a factory-installed KVOS-2 tamper switch. This switch is designed for supervisory signaling to monitor the valve's open or closed position.

What material is the valve body made from, and what is the coating?

The valve body is constructed from durable ductile iron (ASTM 70-50-05) and is coated with a high-performance, FDA-accepted, fusion bonded epoxy system for enhanced corrosion resistance.
