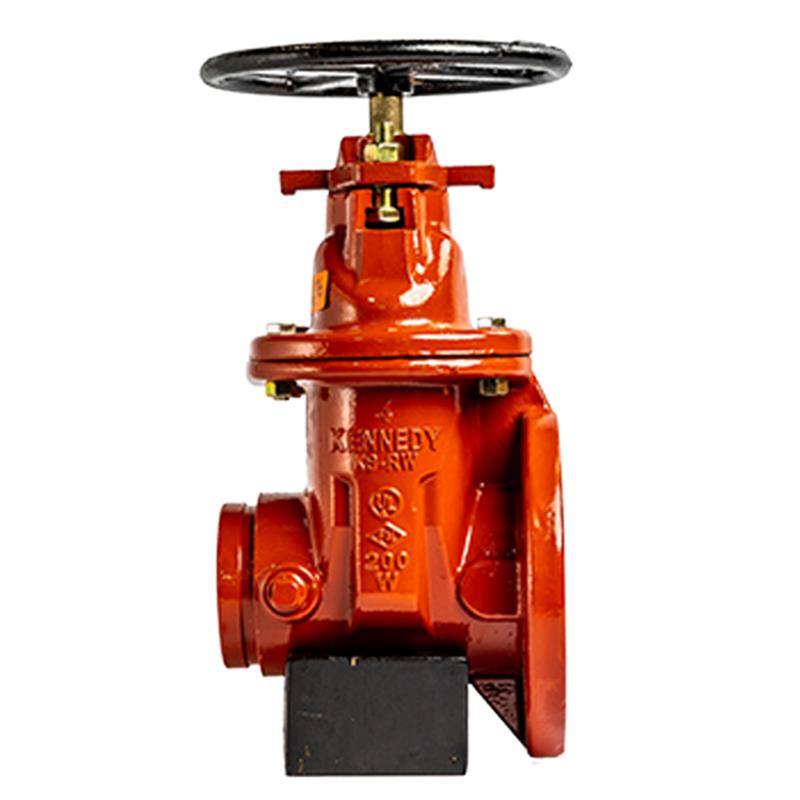

KV 4 NRS FxF Gate Valve W/HW

Item Number: KV4NRSFXF
Skip to product information
1 of 1
Regular price $2,497.75
Limited Stock (3)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Kennedy Valves

  • Nominal Size: 4 inch
  • Stem Type: Non-Rising Stem (NRS)
  • Connections: Flange x Flange
  • Maximum Operating Pressure: 200 PSI
  • Body Material: Ductile Iron
  • Wedge Material: EPDM Encapsulated Ductile Iron
  • Stem Material: ASTM A276 Type 304ss Stainless Steel
  • UL Listed and FM Approved

Description

The Kennedy Valve Series 7000 Model 2638 NRS Flange x Flange Gate Valve is a 4-inch resilient wedge valve designed for fire protection and water service applications. This non-rising stem valve provides bubble-tight, bi-directional flow control, constructed from durable ductile iron with an EPDM encapsulated wedge. It is UL Listed and FM Approved for 200 PSI maximum operating pressure. The valve features ANSI CL 125 Flange connections and a high-performance, FDA and AWWA C550 compliant epoxy coating. Manufactured in Elmira, NY, it ensures reliable and precise on-off flow management. Item number KV4NRSFXF.

Help Me Connect

Connecting Your 4 inch Flange x Flange Gate Valve

  • This valve features ANSI CL 125 Flange x Flange connections, designed to mate with corresponding ANSI Class 125 flanged pipe systems.
  • Ensure proper gasketing and bolt torque according to industry standards for a secure and leak-free installation.
View full details

Collapsible content

Additional Details

The Kennedy Valve Series 7000 Model 2638 NRS Flange x Flange Gate Valve is a resilient seated ductile iron valve primarily used in fire protection and water service applications.

This 4-inch non-rising stem valve provides bubble-tight, bi-directional, on-off flow control and is designed for reliable performance.

Construction & Design

  • Features a resilient EPDM encapsulated ductile iron wedge for durable sealing.
  • Constructed from ductile iron formulated to ASTM 70-50-05, ensuring durability.
  • Utilizes triple EPDM O-ring stem seals and O-rings at the bonnet-to-body connection for best-in-class performance and serviceability.
  • The two uppermost stem O-rings of the NRS valve can be replaced while the valve is in service, simplifying maintenance.

Coatings

  • Coated with a high-performance, heat-curable, thermosetting fusion bonded epoxy system.
  • Kennedy Valve's powder coating system is FDA Title 21 section 175.300 accepted and AWWA C550 compliant, ensuring suitability for potable water.

Specifications

  • Product Type: Resilient Wedge Gate Valve
  • Brand: Kennedy Valve
  • Model: 2638
  • Series: 7000's
  • Stem Type: Non-Rising Stem (NRS)
  • Nominal Size: 4 inch
  • Connections: Flange x Flange
  • Flange Drilling: ANSI B16.1 Flat Face Flange, CL 125
  • Maximum Operating Pressure: 200 PSI

Materials

  • Body Material: Ductile Iron
  • Wedge Material: EPDM Encapsulated Ductile Iron
  • Stem Material: ASTM A276 Type 304ss Stainless Steel
  • Handwheel Material: Cast Iron
  • O-Ring Material: EPDM

Performance Data (4 inch)

  • Turns to Operate: 13.5
  • Weight: 92 lbs
  • Cv Full Open: 1500

Certificates & Approvals

  • UL Listed
  • FM Approved
  • AWWA C515 Compliant
  • AWWA C550 Compliant (Coating)
  • FDA Title 21 Section 175.300 Accepted (Coating)
  • USC Approved for Cross Connect
  • ISO 9001 Certified
  • ISO 14001 Certified
  • ISO 45001 Certified
  • NSF/ANSI/CAN 61 & 372 Certified Lead Free

FAQs

What is the primary use of this valve?

This Kennedy Valve Series 7000 Model 2638 NRS gate valve is primarily used in fire protection systems and water service applications, providing reliable on-off flow control.

What is the maximum operating pressure for this 4-inch valve?

This 4-inch valve is UL Listed and FM Approved for a maximum operating pressure of 200 PSI.

What type of connections does this valve have?

This valve features 4-inch Flange x Flange connections, designed to conform to ANSI B16.1 Flat Face Flange, CL 125 drilling standards.

What materials are used for the main components?

The body is constructed from durable ductile iron, the wedge is EPDM encapsulated ductile iron, and the stem is ASTM A276 Type 304ss Stainless Steel.

Is this valve suitable for potable water applications?

Yes, the valve's epoxy coating system is FDA Title 21 section 175.300 accepted and AWWA C550 compliant. It is also certified lead-free to NSF/ANSI/CAN 61 & 372 standards.
