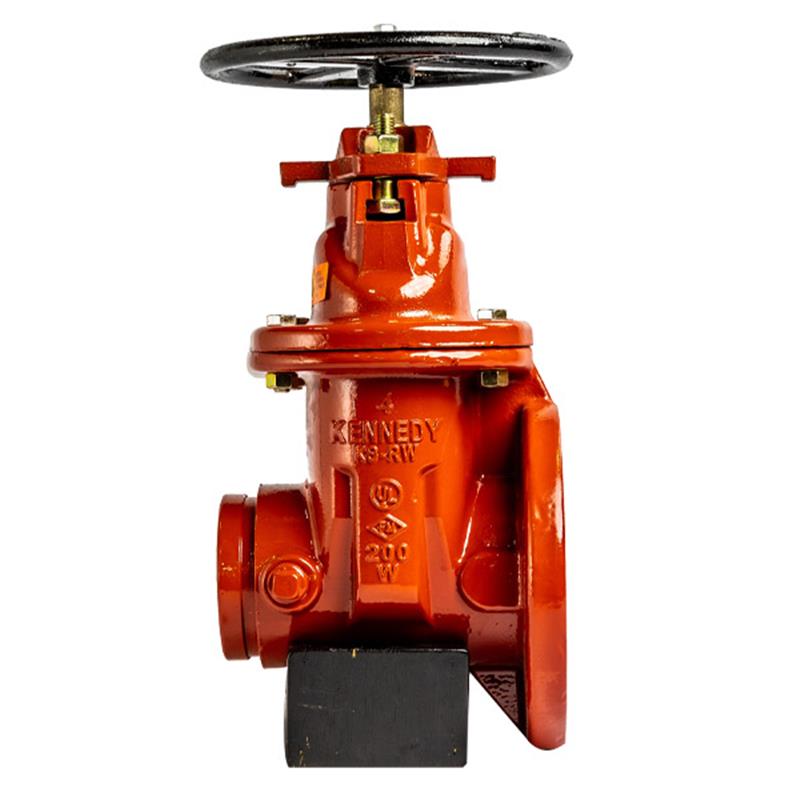

KV 3 NRS FxG Gate Valve W/HW
Item Number: KV3NRSFXG
1
/
of
1
Regular price
$950.97
Limited Stock
(4)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Kennedy Valves
Couldn't load pickup availability
- Valve Type: Resilient Seated Gate Valve, Non-Rising Stem (NRS)
- Nominal Size: 3 inch
- End Connections: Flange x Groove
- Operating Pressure: 200 PSI UL-FM Listed
- Body Material: Ductile Iron
- Wedge Material: EPDM Encapsulated Ductile Iron
- Coating: AWWA C550 Fusion Bonded Epoxy
- Handwheel Diameter: 10 inch
Description
Description
The Kennedy Valve 3-inch NRS Flange x Groove Gate Valve (KV3NRSFXG) is a UL-FM approved resilient seated valve for fire protection and water service. Constructed from durable ductile iron with an EPDM encapsulated wedge, it provides reliable 200 PSI on-off flow control. Its fusion bonded epoxy coating is AWWA C550 compliant. The non-rising stem design and flanged x grooved ends offer versatile installation. This valve features triple EPDM o-ring stem seals for enhanced durability and is certified lead-free to NSF/ANSI/CAN 61 & 372 standards. Manufactured in the USA, it ensures high performance and serviceability for critical applications.
Help Me Connect
Help Me Connect
Flanged Connections
- One end of this valve features a flanged connection designed to connect to compatible flanged pipe systems. This provides a secure, bolted connection.
Grooved Connections
- The other end of this valve has a grooved connection, which is compatible with grooved piping systems. Grooved couplings provide a fast, flexible, and reliable joint.
This valve is specifically configured with one flanged end and one grooved end for integration into hybrid piping setups.

Collapsible content
Additional Details
The Kennedy Valve Series 7000 KS-RW 3-inch NRS Flange x Groove Gate Valve with Handwheel is a resilient seated valve designed for reliable on-off flow control in fire protection and water service applications. It offers bubble-tight, bi-directional operation and features a durable ductile iron construction with an EPDM encapsulated wedge.
Connections
- Flanged End: ANSI B16.1 Flat Face Flange, CL 125/CL 150 Drilling
- Grooved End: Standard IPS Grooves per ANSI/AWWA C606
Features
- Resilient EPDM encapsulated ductile iron wedge.
- Durable ductile iron body formulated to ASTM 70-50-05.
- High-performance heat curable, thermosetting fusion bonded epoxy coating, FDA Title 21 section 175.300 accepted and AWWA C550 compliant.
- Triple EPDM o-ring stem seals and bonnet-to-body o-rings for enhanced performance and serviceability.
- Non-Rising Stem (NRS) design with handwheel.
- Manufactured and assembled by Kennedy Valve in Elmira, NY.
Specifications
General
- Body Material: Ductile Iron (ASTM 70-50-05)
- Wedge Material: EPDM Encapsulated Ductile Iron
- Valve Type: Resilient Seated Gate Valve, Non-Rising Stem (NRS)
- Nominal Size: 3 inch
- End Connections: Flange x Groove
- Operating Pressure: 200 PSI
- Coating: Fusion Bonded Epoxy (AWWA C550 Compliant)
- Stem Seals: Triple EPDM O-Rings
Dimensions & Performance (3 inch Flange x Groove)
- Nominal Length (A): 8 inch
- Overall Height (ØH): 3 inch
- Overall Width (B): 12 3/8 inch
- Handwheel Diameter: 10 inch
- Turns to Operate: 10
- Weight with Plate: 79 lbs
- Cv Full Open: 800
Certificates & Approvals
- UL Listed
- FM Approved
- AWWA C509 Compliant
- USC Approved for Cross Connect
- NSF/ANSI/CAN 61 & 372 Certified Lead Free
- ISO 9001 Certified
- ISO 14001 Certified
- ISO 45001 Certified
FAQs
What is the primary use of the Kennedy Valve Series 7000 gate valve?
It is primarily used in fire protection systems and water service applications for reliable on-off flow control.
What is the maximum operating pressure for this 3-inch valve?
This 3-inch valve is UL-FM listed and approved for a maximum operating pressure of 200 PSI.
What type of connections does this valve feature?
This specific valve features Flange x Groove (FxG) end connections, making it suitable for integrating into systems with both flanged and grooved piping.
Is this gate valve lead-free certified?
Yes, it is certified lead-free by Alden Laboratories to NSF/ANSI/CAN 61 & 372 standards, making it safe for potable water applications.
What does "NRS" mean in the valve's description?
"NRS" stands for Non-Rising Stem, which means the stem remains in a fixed vertical position as the valve is opened or closed. This design is common in applications where overhead space is limited.
