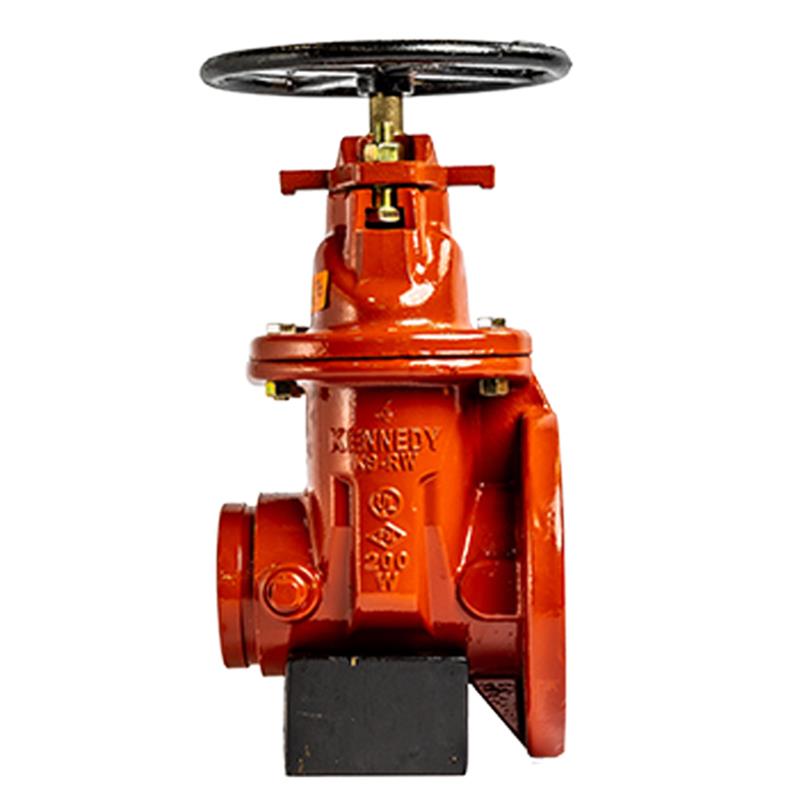

KV 4 NRS FxG Gate Valve W/HW
Item Number: KV4NRSFXG
1
/
of
1
Regular price
$1,056.10
On Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2-5 Days When Back In Stock
Brand - Kennedy Valves
Couldn't load pickup availability
- Size: 4 inch
- Pressure Rating: 200 PSI
- Connection Type: Flange x Groove
- Stem Type: Non-Rising Stem (NRS)
- Body Material: Ductile Iron
- Wedge: EPDM Encapsulated
- Coating: Fusion Bonded Epoxy (AWWA C550 Compliant)
- Certifications: UL Listed, FM Approved, AWWA C515
Description
Description
The Kennedy Valve 4 inch NRS Flange x Groove Gate Valve (KV7592) is a resilient wedge valve designed for fire protection and water service applications. Constructed from durable ductile iron with an EPDM encapsulated wedge, it provides bubble tight, bi-directional on-off flow control. Rated for 200 PSI, this valve is UL Listed and FM Approved, meeting AWWA C515 and C509 standards. Its fusion bonded epoxy coating is AWWA C550 and FDA compliant, ensuring long-term performance and corrosion resistance. Ideal for systems requiring a reliable non-rising stem gate valve. Item number KV4NRSFXG.
Help Me Connect
Help Me Connect
This Kennedy Valve 4 inch NRS gate valve features a Flange x Groove connection configuration, designed for integration into a variety of piping systems.
- The flanged end is an ANSI B16.1 Flat Face Flange with CL 125 drilling, ensuring compatibility with standard flanged connections.
- The grooved end features Standard IPS Grooves per ANSI/AWWA C606, allowing for secure connection with standard grooved pipe couplings.

Collapsible content
Additional Details
The Kennedy Valve Series 7000 KS-RW is a 4 inch Non-Rising Stem (NRS) resilient wedge gate valve, engineered for reliable performance in fire protection systems and water service applications. It provides bubble tight, bi-directional, on-off flow control.
Construction & Design
- Features a robust ductile iron body (ASTM 70-50-05) and an EPDM encapsulated wedge for superior sealing.
- Equipped with triple EPDM o-ring stem seals and additional o-rings at the bonnet-to-body connection, ensuring best-in-class performance and serviceability. The uppermost stem o-rings are field-replaceable while the valve is in service.
- The valve's interior and exterior surfaces are coated with a high-performance, heat-curable, thermosetting fusion bonded epoxy system, which is FDA Title 21 section 175.300 accepted and AWWA C550 compliant.
- Manufactured and assembled at Kennedy Valve in Elmira, NY, with the option for Buy American, Buy America, and BABA compliance.
Connections
- One end features an ANSI B16.1 Flat Face Flange with CL 125 drilling.
- The other end is designed with Standard IPS Grooves per ANSI/AWWA C606.
Specifications
- Product Type: Resilient Wedge Gate Valve
- Series: 7000 KS-RW
- Model: 2638
- Valve Size: 4 inch
- Pressure Rating: 200 PSI (UL-FM Listed)
- Body Material: Ductile Iron (ASTM 70-50-05)
- Wedge Material: EPDM Encapsulated Ductile Iron
- Stem Type: Non-Rising Stem (NRS)
- Stem Material: ASTM B584 High Strength Manganese Bronze or ASTM B763 NDZ
- Stem Seal Material: EPDM O-rings
- Cover O-Ring Material: Buna-N
- Stem O-Ring Material: Buna-N
- Fastener Material (NRS): 304 Stainless Steel
- Handwheel Material: Cast Iron
- Handwheel Diameter: 10 inch
- Turns to Operate: 13.5
- Body Tapping: 3/4 inch NPT
- Coating: Fusion Bonded Epoxy (AWWA C550 Compliant)
Certificates & Approvals
- UL Listed
- FM Approved
- AWWA C515 (4" to 12")
- AWWA C509
- AWWA C550 (coating)
- USC Approved for Cross Connect
- ISO 9001 Certified
- ISO 14001 Certified
- ISO 45001 Certified
- FDA Title 21 Section 175.300 (coating)
- Certified Lead Free by Alden Laboratories to NSF/ANSI/CAN 61 & 372 Standards
FAQs
What is the pressure rating for this 4-inch gate valve?
The valve is UL Listed and FM Approved for a maximum operating pressure of 200 PSI.
What are the connection types on this valve?
This valve features a Flange x Groove connection. One end has an ANSI B16.1 Flat Face Flange (CL 125 drilling), and the other has Standard IPS Grooves per ANSI/AWWA C606.
What material is the body of the valve made from?
The valve body is constructed from durable ductile iron, formulated to ASTM 70-50-05 standards.
Is this valve suitable for fire protection systems?
Yes, the Kennedy Valve Series 7000 KS-RW gate valves are specifically designed and approved for use in fire protection systems and water service applications, being UL Listed and FM Approved.
What certifications does this valve hold?
This valve is UL Listed, FM Approved, AWWA C515 compliant, AWWA C509 compliant, USC approved for cross connect, and certified lead-free to NSF/ANSI/CAN 61 & 372 standards. Its coating is also AWWA C550 compliant and FDA Title 21 section 175.300 accepted.
