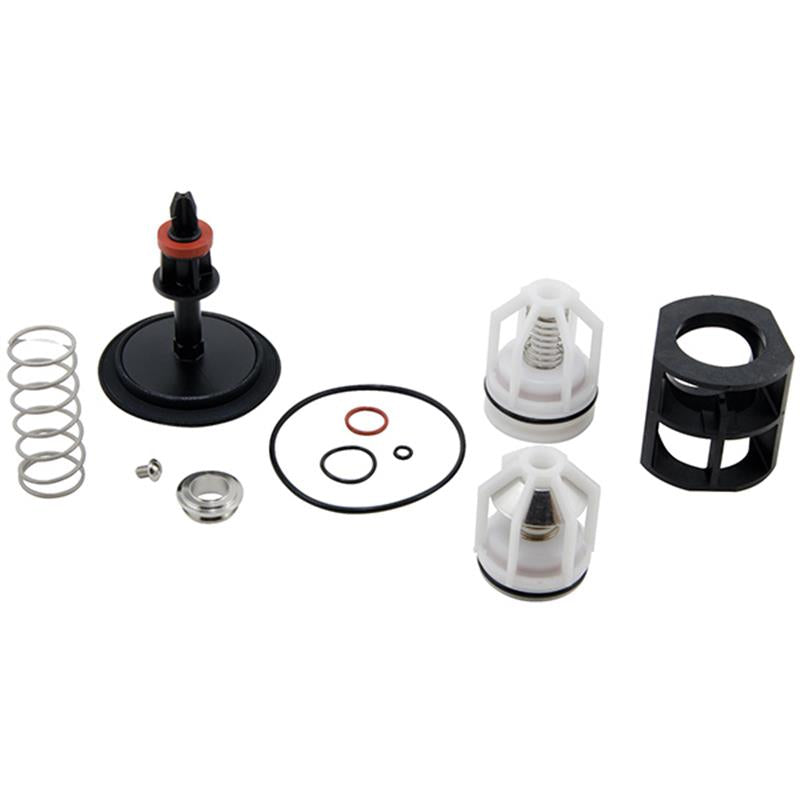

RK 009M2 T 1" Complete Repair Kit

Item Number: 0887793
1 1
$366.37
Limited Stock (5)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Product Type: Complete Repair Kit
  • Weight: 1.7 lb
  • For Watts 009M2 Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 1 Inch
  • Includes First Check Module
  • Includes Second Check Module
  • Includes Composite Diaphragm Assembly
  • Includes Relief Valve Seat and Retainer
  • Certifications: ASSE 1015

Description

This Watts RK 009M2 T 1" Complete Repair Kit is a genuine factory replacement for the 1 inch Watts 009M2 Reduced Pressure Zone (RPZ) backflow preventer. It includes all necessary internal components to restore the device, such as the first check module, second check module, composite diaphragm assembly, relief valve seat, retainer, o-rings, and springs. Designed for easy servicing, no special tools are required for installation. This kit ensures reliable operation and compliance with ASSE 1015 standards, maintaining the integrity of your backflow prevention system.

Help Me Connect

This repair kit is specifically designed for the Watts 1 inch 009M2 Reduced Pressure Zone (RPZ) backflow preventer. While some components share compatibility with other models, this kit ensures all internal wear parts are correctly matched for the 1 inch 009M2.

  • The First and Second Check Modules in this kit are also used in 3/4 inch 009 and 1 inch 009 backflow preventers.
  • The Second Check Module is also used for the 3/4 inch and 1 inch 007M1 first and second checks.
  • The Retainer included in this kit is also used in 3/4 inch 009 and 1 inch 009 backflow preventers.
View full details

Additional Details

This is a complete repair kit for the 1 inch Watts 009M2 Reduced Pressure Zone (RPZ) backflow preventer, designed to restore its internal components for reliable operation.

Watts Series 009 Reduced Pressure Zone Assemblies are "contractor grade" RPZ devices, in production since 1989. These smaller 1/4 to 2 inch models are constructed of bronze and feature check modules that slide into the body, secured by a retainer. The relief valve assembly is positioned directly under the cover, between the retainer. Both the check modules and relief valve assembly are designed for serviceability. Watts has introduced modifications (M1, M2, M3), which result in similar external appearance but different internal parts, so proper identification is crucial before ordering. No special tools are required for servicing 009 Series devices.

Kit Contents

  • First Check Module
  • Second Check Module
  • Composite Diaphragm Assembly
  • Relief Valve Seat
  • Retainer
  • O-rings and Springs (complete set of internal wear parts)

Specifications

  • Product Type: Complete Repair Kit
  • Brand: Watts
  • Backflow Series: 009M2
  • Nominal Size: 1 Inch

Kit Components

  • First Check Module
  • Second Check Module
  • Composite Diaphragm Assembly
  • Relief Valve Seat
  • Retainer
  • Complete Set of O-rings and Springs

Certificates & Approvals

  • ASSE 1015

FAQs

What is included in the Watts RK 009M2 T 1" Complete Repair Kit?

This complete repair kit includes all internal wear parts for the 1 inch Watts 009M2 backflow preventer. It contains the First Check Module, Second Check Module, Composite Diaphragm Assembly, Relief Valve Seat, Retainer, and a full set of O-rings and springs.

Which Watts backflow preventer model is this repair kit designed for?

This kit is specifically designed for the 1 inch Watts 009M2 Reduced Pressure Zone (RPZ) backflow preventer. Always verify your device's series and modification before purchasing repair parts.

Are special tools required to service a Watts Series 009 device with this kit?

No, according to Watts, no special tools are required for servicing Series 009 devices. This allows for straightforward maintenance and installation of the repair kit components.

Are any components in this kit compatible with other Watts backflow preventer models?

Yes, some components have cross-compatibility. For example, the First and Second Check Modules are also used in 3/4 inch 009 and 1 inch 009 models, and the Retainer is also used in 3/4 inch 009 and 1 inch 009.

What certifications apply to this repair kit's components?

Components of this repair kit are manufactured to meet ASSE 1015 standards, ensuring quality and performance for Reduced Pressure Zone assemblies.
