RK 009M3 RT 3/4" Complete Rubber Kit

Item Number: 0888526
1 1
$125.99
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Total Rubber Parts Kit
  • Weight: 0.14 lb
  • For 3/4 inch Watts 009M3 Reduced Pressure Zone Backflow Preventer
  • Includes diaphragm
  • Includes two disc assemblies
  • Includes stem and cover O-rings
  • Includes two seat O-rings
  • Includes relief valve seat O-ring
  • Designed for field repair and maintenance

Description

This Watts RK 009M3 RT 3/4" Complete Rubber Kit provides all necessary rubber replacement parts for 3/4 inch Watts 009M3 Reduced Pressure Zone (RPZ) backflow preventers. The kit includes a diaphragm, two disc assemblies, stem O-rings, cover O-ring, two seat O-rings, and a relief valve seat O-ring. Designed for routine maintenance and repair, this kit ensures the continued reliable operation of your Watts 009M3 RPZ device. Proper identification of your specific backflow preventer model is crucial for compatibility. Item number 0888526.

Help Me Connect

Watts 009 Series Backflow Preventer Compatibility

The Watts 009 Series Reduced Pressure Zone (RPZ) backflow preventers, while sharing a common design, exist in several modifications: 009, 009M1, 009M2, and 009M3. It is critically important to identify the exact model and modification of your backflow preventer, as their internal parts are significantly different, even if the external appearance is similar.

  • This specific kit, RK 009M3 RT 3/4", is designed ONLY for the 3/4 inch Watts 009M3 Reduced Pressure Zone Assembly.
  • Ensure your backflow preventer is clearly marked with '009M3' to guarantee compatibility before purchasing.
  • If your device is an 009, 009M1, or 009M2, this kit will not be compatible.
View full details

Additional Details

This total rubber parts kit provides all the components necessary to repair or replace the rubber parts on a 3/4 inch Watts Reduced Pressure Zone Assembly backflow preventer, model 009M3. It ensures proper function and extends the life of your backflow prevention device.

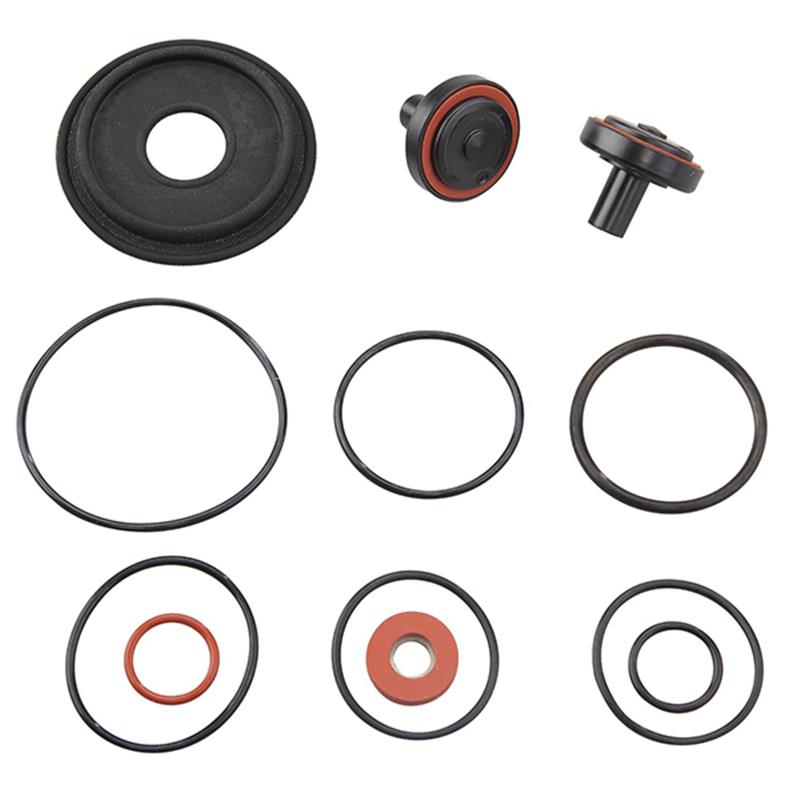

Kit Contents

  • Diaphragm
  • Two Disc Assemblies
  • Stem O-rings
  • Cover O-ring
  • Two Seat O-rings
  • Relief Valve Seat O-ring

For Watts Series 009 Reduced Pressure Zone Assemblies

Watts 009 Series Reduced Pressure Zone (RPZ) devices are known as "contractor grade" and have been produced since 1989. These devices feature a one-cover design across sizes. The smaller 1/4 inch to 2 inch models are constructed of bronze and use check modules that slide into the body, secured by a retainer. The relief valve assembly is located directly under the cover. The check modules and relief valve assembly are designed for service.

Important Note on Modifications

Over the years, Watts has implemented slight redesigns, referred to as "modifications" (e.g., 009, 009M1, 009M2, and 009M3). While the external appearance of these valves is very similar, their internal parts are significantly different. Always be sure of your specific valve model before ordering repair parts to ensure correct compatibility.

Easy Servicing

  • No special tools are required for servicing 009 Series devices.
  • Features self-contained check assemblies for straightforward maintenance.

Specifications

  • Kit Type: Repair Kit
  • Kit Component Designation: Total Rubber Parts (RT)
  • Backflow Preventer Series: 009 Reduced Pressure Zone Assembly
  • Backflow Preventer Model: 009M3
  • Backflow Preventer Size: 3/4 inch

Kit Contents Included

  • Diaphragm: 1
  • Disc Assemblies: 2
  • Stem O-rings: Included
  • Cover O-ring: 1
  • Seat O-rings: 2
  • Relief Valve Seat O-ring: 1

FAQs

What components are included in this Watts RK 009M3 RT 3/4" Complete Rubber Kit?

This kit includes a diaphragm, two disc assemblies, stem O-rings, a cover O-ring, two seat O-rings, and a relief valve seat O-ring. It contains all the essential rubber parts for repair.

Which specific Watts backflow preventer model is this kit compatible with?

This kit is designed for the Watts 3/4 inch 009M3 Reduced Pressure Zone (RPZ) backflow preventer. It is crucial to confirm your model number includes '009M3' for proper fit.

What does 'RT' signify in the product name 'RK 009M3 RT 3/4"'?

In Watts repair kit nomenclature, 'RT' stands for 'Total Rubber Parts'. This indicates that the kit contains all the rubber components required for a comprehensive repair or refresh of your backflow preventer.

Why is it important to verify the exact modification number (e.g., M3) for my 009 Series backflow preventer?

Watts 009 Series backflow preventers, including models 009, 009M1, 009M2, and 009M3, have similar appearances but different internal parts. Verifying the exact modification number ensures you order the correct kit for internal component compatibility.

Are any special tools required for installing the parts included in this kit?

According to the manufacturer's information for the 009 Series, no special tools are required for servicing these devices. The check modules and relief valve assembly are designed to come apart for service easily.
