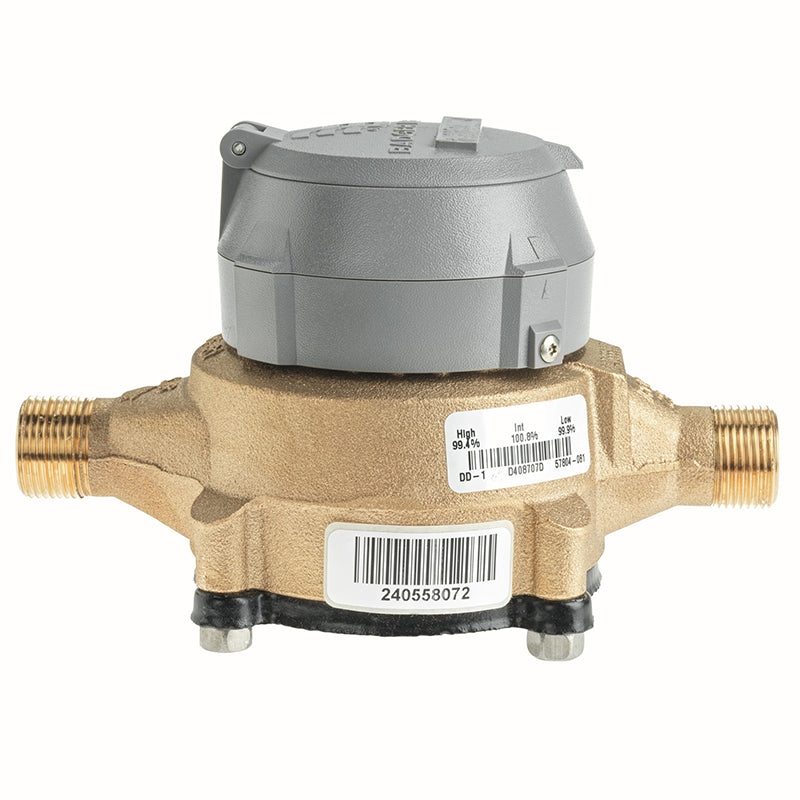

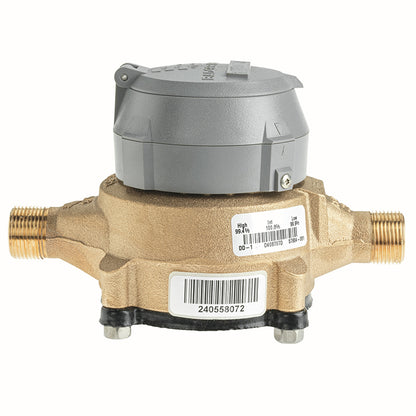

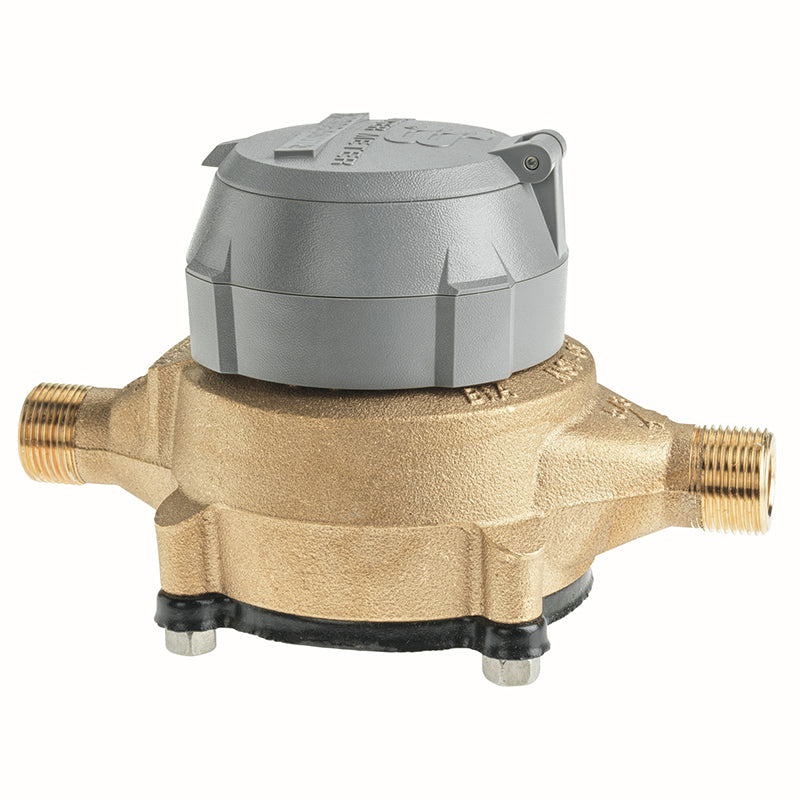

ROM DC/RP CFM-B

Item Number: 7018895
Skip to product information
1 of 3
Regular price $1,344.63
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames

  • Operating Temperature: -4 to 140°F (-20 to 60°C)
  • Weight: 2.5 lb
  • Encoder Compatibility: HR-E, HR-E LCD, E-Series Ultrasonic
  • Display: LCD, 8 characters, 0.25 inches high
  • Battery Life: 10 years (3.6V lithium)
  • Construction: High impact thermoplastic, weather and UV resistant
  • Dimensions: 4.651" L x 4.325" H x 2.017" W
  • Weight: 9 oz (255 g)
  • Activation: Tap target circle (acoustic switch)

Description

The Badger Meter HR-RED is a high-resolution remote electronic display designed to provide clear visual readings for compatible Badger Meter Recordall® Disc, Turbo, Compound, Fire Series, and E-Series® Ultrasonic meters equipped with HR encoders. This display is perfect for installations where meters are difficult to access, such as inside buildings, meter vaults, or industrial sites. Featuring durable high-impact thermoplastic construction, it is weather and UV resistant for both indoor and outdoor use. The HR-RED offers a 10-year battery life, ensuring long-term, reliable performance. Item number 7018895.

Help Me Connect

Compatibility & Connections

  • The Badger Meter HR-RED display connects directly to Badger Meter Recordall® Disc, Turbo, Compound, and Fire Series meters equipped with high resolution (HR) encoders (HR-E®, HR-E LCD, HR-E LCD 4-20) or E-Series® Ultrasonic meters.
  • The maximum recommended cable length between your meter/encoder and the HR-RED is 2000 feet.

Wiring Instructions

  • Ensure polarity is observed when connecting the meter and HR-RED wires: red (power/clock) to red, green (data) to green, and black (ground) to black.
  • The installation kit includes three (3) connectors for wires, a strain relief ring, and a Torx® seal screw.

Optional Cables

If the cable supplied with your meter/encoder is not sufficient, additional wire options are available:

  • One (1) ft Belden® cable (PN: 64153-003)
  • Nine (9) in. Twist Tight® connector cable (PN: 68307-001)
  • Ten (10) in. Nicor® connector cable (PN: 66488-007)
View full details

Collapsible content

Additional Details

The Badger Meter HR-RED is a high-resolution remote electronic display designed to provide remote visual readings when connected directly to compatible Badger Meter water meters.

It is ideal for installations where meters are not easily accessible or are in difficult-to-read locations, such as inside houses or buildings, meter vaults, or dangerous industrial settings.

Features

  • Provides remote visual readings for Badger Meter Recordall® Disc, Turbo, Compound, and Fire Series meters equipped with high resolution (HR) encoders, as well as E-Series® Ultrasonic meters.
  • Battery operated device, designed for long-term use without external power.
  • Activates via an internal acoustic switch; simply tap the target circle on the display to view readings.
  • Displays meter readings up to 9 digits and the encoder serial number.

Construction & Environment

  • Constructed from high impact thermoplastic, ensuring durability.
  • Designed to be weather and UV resistant for reliable outdoor performance.
  • Suitable for indoor or outdoor installation.

Important: While the HR-RED electronics and battery are environmentally sealed, the wire terminals are not sealed from moisture. The unit should NOT be installed in locations below grade level or in a submersible environment.

Specifications

  • Operating Temperature: -4ℊF to 140ℊF (-20ℊC to 60ℊC)
  • Encoder Compatibility: HR-E, HR-E LCD, HR-E LCD 4-20, E-Series Ultrasonic meter
  • Dimensions: L 4.651 in. (118 mm) × H 4.325 in. (110 mm) × W 2.017 in. (51 mm)
  • Weight: 9 oz (255 g)
  • Display: LCD, 8 characters, 0.25 inches high
  • Battery Life: 10 years, 3.6V lithium battery
  • Construction: High impact thermoplastic, weather and UV resistant

FAQs

What is the primary function of the Badger Meter HR-RED?

The HR-RED is an electronic display designed to provide remote visual readings from compatible Badger Meter water meters in locations that are not easily accessible or difficult to read.

Can the HR-RED be installed outdoors?

Yes, the HR-RED can be installed indoors or outdoors. However, its wire terminals are not sealed from moisture, so it should NOT be installed below grade level or in a submersible environment.

How is the HR-RED display powered, and what is its battery life?

The HR-RED is a battery-operated device powered by a 3.6V lithium battery. It has an estimated battery life of 10 years.

What is the maximum cable length supported between the meter and the HR-RED?

The maximum recommended cable length between the meter and the HR-RED display is 2000 feet.

What are the recommended wiring connections for the HR-RED?

When connecting the meter and HR-RED wires, ensure correct polarity: red (power/clock) to red, green (data) to green, and black (ground) to black.
