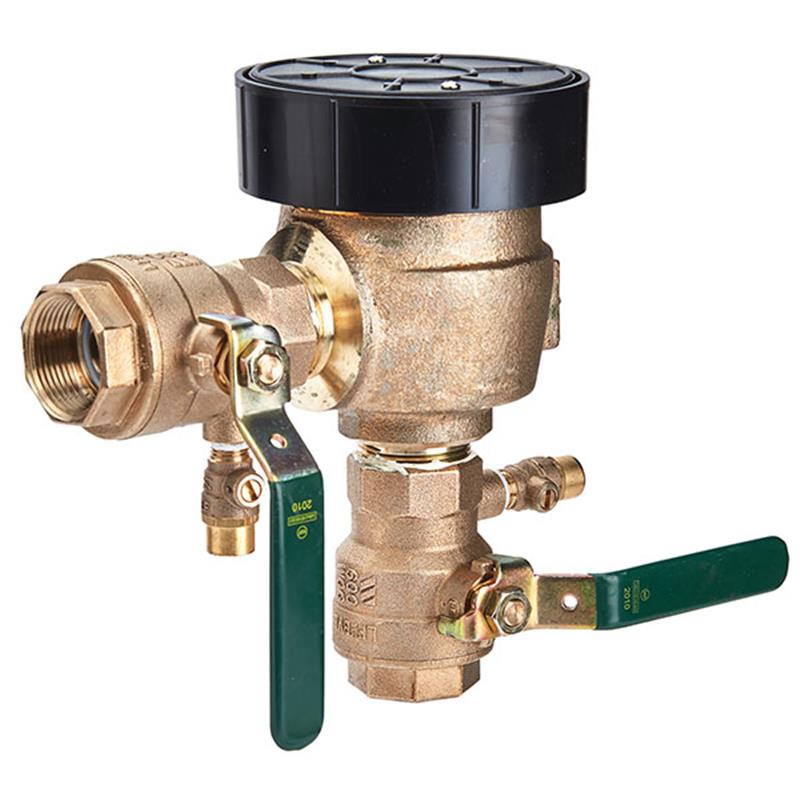

Watts 1 1/4" LF800M4FR
Item Number: 0792019
1
/
of
1
Regular price
$1,392.75
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Watts
Couldn't load pickup availability
- Size: 1 1/4 inch
- Weight: 11.3 lb
- Lead Free* cast copper silicon alloy body
- Maximum Working Pressure: 150 psi
- Temperature Range: 33°F to 140°F
- Unique built-in relief valve for ice formation
- Replaceable plastic seat and silicone disc
- Test cocks for easy testing and winterization
- ASSE 1020, IAPMO, and NSF/ANSI 372 approved
Description
Description
The Watts 1 1/4" LF800M4FR is a Lead Free freeze-resistant pressure vacuum breaker designed to prevent backsiphonage of contaminated water into potable water supplies under continuous pressure. Ideal for irrigation and industrial process water systems, it features a durable lead free cast copper silicon alloy body and a unique relief valve to mitigate pressure from ice formation. It includes replaceable plastic and silicone seats, test cocks for winterization, and lever handle quarter-turn ball valve shutoffs. This device meets ASSE 1020, IAPMO, and NSF/ANSI 372 standards. Item number 0792019.
Help Me Connect
Help Me Connect
Connections & Installation
- The valve is designed for installation in a continuous pressure potable water supply system.
- It must be installed 12 inches above the highest point of the downstream piping.
- The supply should be connected to the bottom of the device, and it must be installed in a vertical position.
- Features bottom inlet and side outlet connections.
- Equipped with quarter-turn ball valve shutoffs on both the inlet and outlet.
- Test cocks are positioned at the lowest point of the valve for winterization draining.
Compatibility Note
This pressure vacuum breaker is not designed, tested, or approved to protect against backpressure backflow or water hammer shock. For protection against backpressure backflow, a Watts LF009 Reduced Pressure Zone backflow preventer is recommended.
Warranty Information
Warranty Information
Limited Warranty:
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
Collapsible content
Additional Details
This 1 1/4 inch Watts LF800M4FR Lead Free Freeze-Resistant Pressure Vacuum Breaker (PVB) prevents backsiphonage of contaminated water from entering the potable water supply under continuous pressure. Its design protects the valve body and internal components during sudden freeze conditions by relieving pressure caused by ice formation through a unique relief valve built into the plastic float. It is commonly used in applications such as lawn irrigation systems and industrial process water systems.
Please note: This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable, so please be sure to order carefully. If you have any questions, please contact us before ordering.
Features
- Prevents backsiphonage of contaminated water under continuous pressure.
- Lead Free* construction complies with reduced lead content requirements.
- Unique built-in relief valve automatically relieves pressure caused by ice formation.
- Replaceable plastic seat and silicone seat disc for durability and easy maintenance.
- O-ring bonnet seal reduces the possibility of fouling.
- Test cocks are positioned for easy testing and winterization.
- Compact, space-saving design.
- Equipped with lever handle quarter turn ball valve shutoffs for easy operation.
- No special tools are required for servicing.
- Includes a freeze sensor that can be activated with a separately sold connection kit to monitor temperature and alert personnel.
Specifications
- Size: 1 1/4 inch
- Body Material: Lead Free* cast copper silicon alloy
- Springs Material: Stainless steel
- Bonnet Material: Celcon®
- Vent Disc Material: Silicone rubber
- Disc Holder Float Material: Polypropylene
- Check Valve Disc Material: Silicone rubber
- Check Valve Seat Material: Noryl® plastic
- Temperature Range: 33°F to 140°F (0.5°C to 60°C)
- Maximum Working Pressure: 150 psi (10.3 bar)
Certificates & Approvals
- ANSI
- IAPMO
- USC Manual Section 10
- ASSE 1020
- B64.12
- NSF/ANSI 372 Certified
FAQs
What is the primary function of the Watts LF800M4FR pressure vacuum breaker?
This device is designed to prevent backsiphonage of contaminated water from entering a potable water supply under continuous pressure. It is commonly used in health hazard continuous pressure applications like irrigation systems.
Is this device truly freeze-proof?
No, the Watts LF800M4FR is Freeze-Resistant, not Freeze-Proof. It features a unique relief valve to manage pressure from ice formation, but adequate drainage and freeze protection are still necessary in cold weather applications. User action is required to prevent freezing.
What are the key installation requirements for this backflow preventer?
It must be installed in a continuous pressure potable water supply system, 12 inches above the highest point of the downstream piping. The valve should be installed with the supply connected to the bottom and in a vertical position. Adequate space for inspection, servicing, or testing is also required.
What is the maximum operating pressure and temperature range?
The maximum operating pressure for this 1 1/4 inch LF800M4FR is 150 psi (10.3 bar). It is designed to operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).
Can the included freeze sensor provide alerts?
Yes, the included freeze sensor can provide alerts for low and freezing temperatures, but it requires an add-on connection kit (sold separately) to activate its communication capabilities. Without the kit, the sensor is a passive component.
