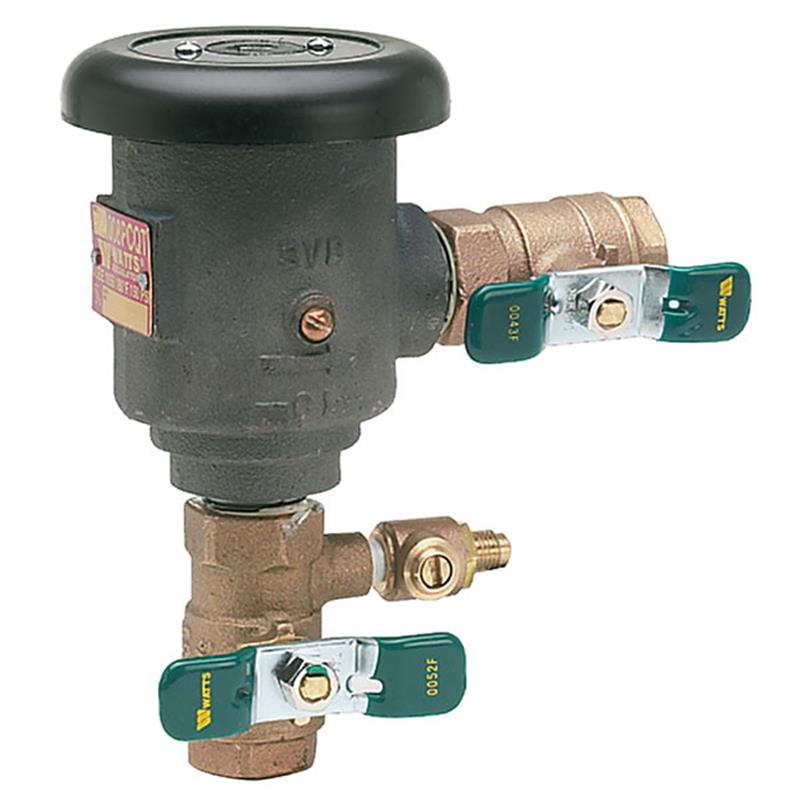

Watts 1" LF008PC-QT
Item Number: 0792026
1
/
of
1
Regular price
$1,806.00
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Watts
Couldn't load pickup availability
- Nominal Size: 1 inch
- Weight: 6.0 lb
- Body Material: Lead Free Cast Copper Silicon Alloy
- Maximum Working Pressure: 150 PSI
- Temperature Range: 33°F - 180°F
- Connection Type: Female NPT Ball Valve Shutoffs
- Spill-Resistant Design for Indoor Use
- Modular Cartridge for Easy Service
- Approved to IAPMO, ASSE 1056, and CSA B64.1.2 standards
Description
Description
The Watts 1" LF008PC-QT is a Lead Free spill-resistant anti-siphon vacuum breaker backflow preventer designed for indoor point-of-use applications. It prevents the reverse flow of polluted water into the potable water supply due to backsiphonage. Constructed with a durable lead free cast copper silicon alloy body and internal polymer coating, it is ideal for general plumbing, machines, or equipment. Key features include a modular cartridge for easy service, Tee handles, and a compact, spill-resistant design. This backflow preventer operates up to 150 PSI and meets ASSE 1056 and CSA B64.1.2 standards.
Help Me Connect
Help Me Connect
Installation Guidelines
- Designed for point-of-use applications.
- For factory-installed deck/machine mounted applications, the critical level must be not less than 1 inch (25mm) above the flood rim.
- For general plumbing applications, the critical level must be a minimum of 6 inches (150mm) above the flood rim.
- A strainer is recommended to be installed ahead of the backflow preventer to prevent fouling of the check assembly and potential spillage.
- Do not install in concealed locations or areas where water leakage could cause damage.
Warranty Information
Warranty Information
Limited Warranty:
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
Collapsible content
Additional Details
The Watts 1" LF008PC-QT is a Lead Free spill-resistant anti-siphon vacuum breaker backflow preventer designed for indoor point-of-use applications to prevent backsiphonage of contaminated water into the potable water supply.
This backflow preventer is ideal for use on machines or equipment in general plumbing applications, ensuring water system integrity.
Features
- Standardly supplied with internal polymer coating for enhanced durability.
- Includes Tee handles for easy operation.
- Spill-resistant design suitable for indoor use.
- Features a modular cartridge for ease of service and maintenance.
- Vent utilizes an O-ring for reliable operation.
- Constructed with a Lead Free cast copper silicon alloy body for durability.
- Compact, space-saving design, available in a satin chrome finish.
- Available with left-handed or right-handed outlet.
This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable. Please be sure you order carefully. If you have ANY questions please contact us before ordering.
Specifications
- Nominal Size: 1 inch
- Body Material: Lead Free Cast Copper Silicon Alloy
- Springs Material: Stainless Steel
- Bonnet Material: PPO
- Vent Disc Material: EPDM
- Disc Holder Material: PPO
- Check Disc Material: Silicone Rubber
- Connection Type: Female NPT Ball Valve Shutoffs
- Maximum Working Pressure: 150 PSI (10.3 bar)
- Minimum Working Pressure: 8 PSI (55.2 kPa)
- Temperature Range: 33°F - 180°F (0.5°C - 83°C)
Dimensions (1" Size)
- Overall Height (B): 7 1/2 inches (191 mm)
- Width (D): 5 1/8 inches (130 mm)
- Depth (E): 4 7/8 inches (124 mm)
- Weight: 4.8 lbs (2.18 kgs)
Certificates & Approvals
- IAPMO Approved
- ASSE 1056
- CSA B64.1.2
FAQs
What is the primary purpose of the Watts 1" LF008PC-QT backflow preventer?
This device is designed for indoor point-of-use applications to prevent the reverse flow of contaminated water into the potable water supply due to backsiphonage. It is suitable for general plumbing and equipment connections.
What does the 'Lead Free' construction of this product mean?
The 'Lead Free' construction indicates that the wetted surface of this product, when contacted by consumable water, contains less than 0.25% lead by weight. This ensures compliance with Lead Free installation requirements.
What are the key features for maintenance and durability of this backflow preventer?
The LF008PC-QT features a durable Lead Free cast copper silicon alloy body and an internal polymer coating. It also incorporates a modular cartridge design for ease of service and a reliable O-ring for vent operation.
What are the maximum and minimum operating pressures for the Watts 1" LF008PC-QT?
This backflow preventer has a maximum working pressure of 150 PSI (10.3 bar) and a minimum working pressure of 8 PSI (55.2 kPa), ensuring reliable performance within these parameters.
What are the installation requirements regarding the flood rim for this backflow preventer?
For factory-installed applications, the critical level of the device must be at least 1 inch (25mm) above the flood rim. For field-applied general plumbing installations, the critical level must be a minimum of 6 inches (150mm) above the flood rim.
