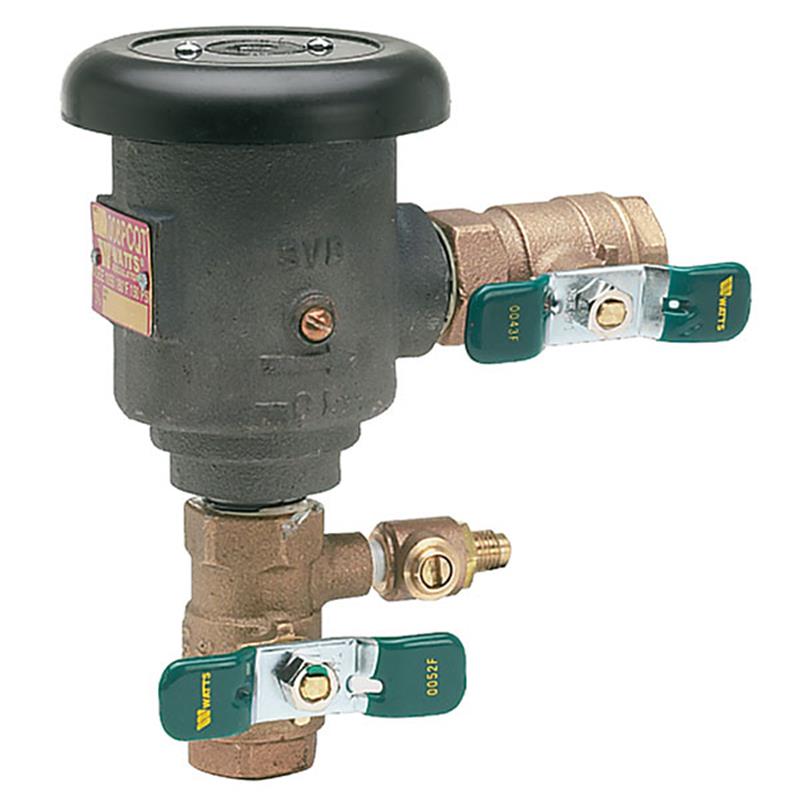

Watts 3/4" LF008PC-QT

Item Number: 0792025
1 1
$1,636.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Nominal Size: 3/4 inch
  • Weight: 4.7 lb
  • Lead Free* Construction: Cast Copper Silicon Alloy Body
  • Maximum Working Pressure: 150 PSI
  • Minimum Working Pressure: 8 PSI
  • Temperature Range: 33°F - 180°F
  • End Connections: Female NPT Ball Valve Shutoffs
  • Spill-Resistant Design for Indoor Use
  • Approvals: IAPMO, ASSE 1056, CSA B64.1.2, NSF

Description

The Watts 3/4" LF008PC-QT is a Lead Free Health Hazard, Anti-Siphon, Spill-Resistant Backflow Preventer designed for indoor point-of-use applications. This device effectively prevents the backsiphonage of contaminated water into the potable water supply. Constructed with a durable Lead Free* cast copper silicon alloy body, it features female NPT ball valve shutoffs for secure connections. It operates within a maximum pressure of 150 PSI and a temperature range of 33-180°F. Key features include a spill-resistant design, internal polymer coating, and a modular cartridge for easy service. This unit is IAPMO, ASSE 1056, CSA B64.1.2, and NSF approved.

Help Me Connect

Installation Requirements

The Watts 3/4" LF008PC-QT is designed for indoor point-of-use applications, specifically for connecting to the potable water supply. It features Female NPT Ball Valve Shutoffs for secure connections.

  • For factory-installed applications on machines or equipment, the critical level of the backflow preventer should be installed not less than 1 inch (25mm) above the flood rim.
  • For general plumbing applications, the critical level of the backflow preventer should be a minimum of 6 inches (150mm) above the flood rim.
  • A strainer is recommended to be installed ahead of the backflow preventer to prevent fouling of the check assembly and potential spillage.

It is important to avoid installing this device in concealed locations or areas where water leakage due to normal wear of internal parts could cause damage.

View full details

Additional Details

The Watts 3/4" LF008PC-QT Anti-Siphon, Spill-Resistant, Vacuum Breaker Backflow Preventer is designed for indoor point-of-use applications to prevent the reverse flow of polluted water from entering the potable water supply due to backsiphonage. This model is ideal for use on machines or equipment in general plumbing applications.

Key Components

  • Features Lead Free* bronze body construction (cast copper silicon alloy).
  • Internal components include a one-piece modular check and float assembly valve made of engineered thermoplastic.
  • Equipped with stainless steel springs.
  • Supplied with Tee handles for operation, also available with stem wrench flats for limited space.
  • A molded diaphragm separates the air inlet from the potable water supply to prevent spillage.

Design & Features

  • Spill-resistant design for reliable indoor use.
  • Standardly supplied with an internal polymer coating.
  • Vent utilizes an O-ring for reliable operation.
  • Available with left-handed or right-handed outlet options.
  • Compact space saving design.
  • Satin chrome finish available.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

  • Nominal Size: 3/4 inch
  • End Connections: Female NPT Ball Valve Shutoffs
  • Maximum Working Pressure: 150 PSI (10.3 bar)
  • Minimum Working Pressure: 8 PSI (55.2 kPa)
  • Temperature Range: 33°F - 180°F (0.5°C - 83°C)

Materials

  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Springs: Stainless Steel
  • Bonnet Material: PPO
  • Vent Disc Material: EPDM
  • Disc Holder Material: PPO
  • Check Disc Material: Silicone Rubber

Certificates & Approvals

  • IAPMO Approved
  • ASSE 1056
  • CSA B64.1.2
  • NSF Certified

FAQs

What is the primary purpose of the Watts 3/4" LF008PC-QT Backflow Preventer?

This backflow preventer is designed for indoor point-of-use applications to prevent contaminated water from flowing back into the potable water supply due to backsiphonage. It uses a diaphragm seal to separate the water supply from the air inlet, preventing spillage during operation.

Is the Watts LF008PC-QT suitable for use with drinking water?

Yes, the Watts 3/4" LF008PC-QT features Lead Free* construction, meaning the wetted surfaces contain less than 0.25% lead by weight, making it compliant for use with potable water. It is also NSF certified for health hazard applications.

What are the operating pressure and temperature limits for this device?

This backflow preventer has a maximum working pressure of 150 PSI (10.3 bar) and a minimum working pressure of 8 PSI (55.2 kPa). It is rated for a temperature range of 33°F to 180°F (0.5°C to 83°C).

What type of connections does the Watts 3/4" LF008PC-QT model use?

This model is equipped with Female NPT Ball Valve Shutoffs for connecting to your plumbing system. It is available with either left-handed or right-handed outlet options.

Are there any specific installation requirements or recommendations?

The device should be installed at the point-of-use and is for indoor use only. A strainer is recommended upstream to prevent fouling of the check assembly. Critical levels above the flood rim for field applications are a minimum of 6 inches.
