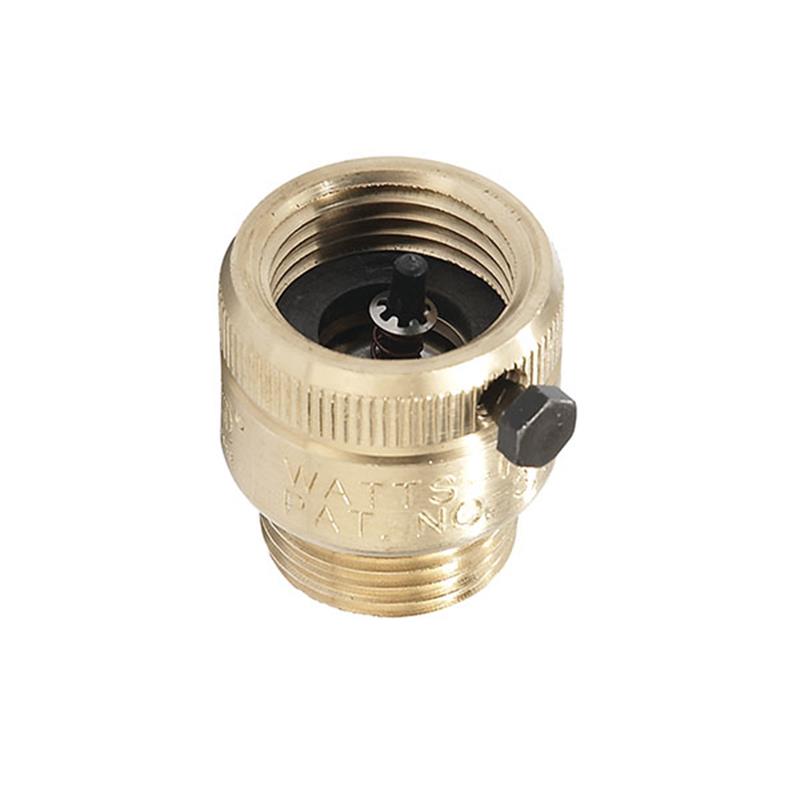

Watts 8BI Hose Bibb Vacuum Breaker - Imported

Item Number: 0061992
1 1
$29.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • 3/4 inch Standard Female Hose Thread Inlet
  • Weight: 10.8 lb
  • 3/4 inch Standard Male Hose Thread Outlet
  • Maximum Operating Pressure: 125 psi
  • Maximum Temperature: 180°F (82°C)
  • Brass body construction
  • Stainless steel working parts
  • Tamper-resistant break-away set screw
  • Prevents backflow due to backsiphonage

Description

The Watts 8BI Hose Bibb Vacuum Breaker is a 3/4 inch brass device designed to prevent backflow of contaminated water into potable supplies due to backsiphonage. It easily attaches to hose thread faucets and features a durable brass body, stainless steel working parts, and a rubber diaphragm for reliable performance. A tamper-resistant break-away set screw provides security. This vacuum breaker is suitable for health hazard installations requiring non-continuous pressure, such as service sinks, swimming pools, and outdoor gardening uses, with a maximum operating pressure of 125 psi and a maximum temperature of 180°F.

Help Me Connect

Connections

The Watts 8BI Hose Connection Vacuum Breaker is designed to connect directly to any 3/4 inch male hose thread faucet or sill cock. The female inlet side screws onto your existing outdoor spigot.

The male outlet side provides a 3/4 inch male hose thread, allowing for easy attachment of standard portable hoses.

Ensure the sill cock contains at least four full threads for proper installation of the device.

Warranty Information

Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
View full details

Additional Details

Series 8BI Hose Connection Vacuum Breakers permit the attachment of portable hoses to hose thread faucets and prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage.

Construction & Features

  • Durable brass body construction.
  • Stainless steel working parts for longevity.
  • Durable rubber diaphragm and disc for consistent positive seating.
  • Includes a draining stem to allow sill cocks to be drained.
  • Furnished with a break-away set screw to provide a tamper-resistant installation.

Applications

  • Ideal for inside and outside, health hazard installations requiring non-continuous pressure.
  • Suitable for service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas, and general outside gardening uses.

Important Warnings:

  • This device is not to be used under continuous pressure or where there is a possibility that a backpressure condition may develop.
  • This valve should only be used in areas where spillage of water will not cause damage. Do not use where discharge of water is objectionable.
  • Not recommended for use on frost-free hydrants.
  • Device should only be installed on approved sill cocks containing at least four full threads.
  • Inquire with governing authorities for local installation requirements.
  • Not Lead Free Compliant

Specifications

  • Inlet Connection: 3/4 inch Standard Female Hose Thread
  • Outlet Connection: 3/4 inch Standard Male Hose Thread
  • Maximum Operating Pressure: 125 psi (8.6 bar)
  • Maximum Temperature: 180°F (82°C)

Materials

  • Body Material: Brass
  • Working Parts Material: Stainless Steel
  • Diaphragm and Disc Material: Rubber

Certificates & Approvals

  • ANSI A112.1.3
  • ASSE 1011
  • CSA B64.2
  • IAPMO listed

FAQs

What is the primary function of the Watts 8BI Hose Bibb Vacuum Breaker?

The primary function is to permit the attachment of portable hoses to hose thread faucets while preventing the reverse flow of contaminated water, or backsiphonage, back into the potable water supply.

What are the connection sizes for this vacuum breaker?

It features a 3/4 inch standard female hose thread for the inlet connection and a 3/4 inch standard male hose thread for the outlet connection.

What materials is the Watts 8BI vacuum breaker constructed from?

The vacuum breaker is constructed with a brass body, stainless steel working parts for longevity, and a durable rubber diaphragm and disc for consistent positive seating.

Can this device be used under continuous pressure?

No, the Watts 8BI vacuum breaker is designed for installations requiring non-continuous pressure and should not be used in applications where continuous pressure is present.

Is the Watts 8BI vacuum breaker considered lead-free?

No, this device is explicitly stated as "Not Lead Free Compliant."
