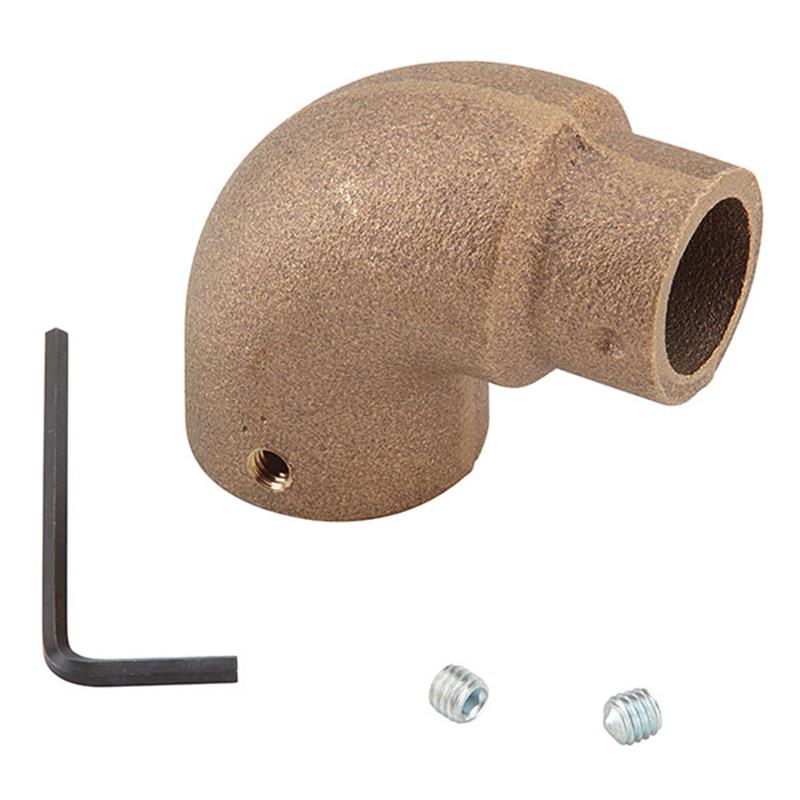

Watts 909-ELA Air Gap Elbow Fitting

Item Number: 0881370
1 1
$125.62
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Material: Bronze
  • Weight: 15.8 lb
  • Designed for vertical air gap installations
  • Compatible with Watts 009/LF009, 009/LF009M2/M3, 995 series
  • Ensures unobstructed physical separation
  • Directs nuisance discharge to a drain
  • Approved to: ANSI/ASME A112.1.2

Description

The Watts 909-ELA Air Gap Elbow Fitting (0881370) is a bronze component specifically designed for the vertical installation of air gaps on Reduced Pressure Zone (RPZ) backflow assemblies. This fitting creates an unobstructed physical separation between the potable water supply line and a receiving vessel, effectively directing any discharge to a drain. It is compatible with Watts 009/LF009 (1/4"-1/2"), 009/LF009M2/M3 (3/4"), and 995 series (1/2"-1") backflow preventers. The 909-ELA meets ANSI/ASME A112.1.2 approvals for reliable performance.

Help Me Connect

Compatibility and Installation

  • The Watts 909-ELA Air Gap Elbow Fitting is specifically designed for use with Watts air gaps that are installed on Reduced Pressure Zone (RPZ) backflow assemblies.
  • It is engineered to facilitate vertical installation of the air gap, as shown in the diagram on the spec sheet, where vertical installation is permitted by governing authorities.
  • This elbow is compatible with Watts 009/LF009 Series (1/4"-1/2" sizes), 009/LF009M2/M3 Series (3/4" size), and 995 Series (1/2"-1" sizes) RPZ devices.
  • The elbow attaches to the relief port of the RPZ device and allows for piping to a drain to manage any discharge safely.
View full details

Additional Details

The Watts 909-ELA Air Gap Elbow Fitting is a bronze component designed to facilitate the vertical installation of air gaps on Reduced Pressure Zone (RPZ) backflow assemblies.

This fitting provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel, helping to direct any nuisance discharge to a safe drain.

Key Features

  • Provides unobstructed physical separation for air gap installations
  • Designed for vertical installation of air gaps on compatible RPZ assemblies
  • Durable bronze construction

Application

  • Used with Watts air gaps to ensure proper installation for Reduced Pressure Zone (RPZ) backflow preventers
  • Helps pipe discharge from the RPZ assembly relief port to a drain

Specifications

  • Body Material: Bronze
  • Designed For: Watts Air Gaps
  • Compatible Series: Watts 009/LF009, 009/LF009M2/M3, 995 Series
  • Compatible Series Sizes: 1/4 inch - 1/2 inch (009/LF009), 3/4 inch (009/LF009M2/M3), 1/2 inch - 1 inch (995 Series)

Certificates & Approvals

  • ANSI/ASME A112.1.2

FAQs

What is the primary purpose of the Watts 909-ELA Air Gap Elbow Fitting?

This fitting is designed to facilitate the vertical installation of an air gap on a Reduced Pressure Zone (RPZ) backflow assembly. Its main function is to ensure an unobstructed physical separation between the potable water supply and a receiving vessel, while directing any discharge to a drain.

What material is the Watts 909-ELA Air Gap Elbow Fitting made from?

The Watts 909-ELA Air Gap Elbow Fitting is constructed from durable bronze, ensuring long-lasting performance in its intended application.

Which Watts backflow preventer series are compatible with the 909-ELA elbow?

This elbow is compatible with Watts 009/LF009 series (1/4"-1/2" sizes), 009/LF009M2/M3 series (3/4" size), and 995 series (1/2"-1" sizes) Reduced Pressure Zone assemblies. It is important to confirm compatibility with your specific backflow preventer model.

Does this elbow fitting meet any industry standards or approvals?

Yes, the Watts 909-ELA Air Gap Elbow Fitting is approved to ANSI/ASME A112.1.2 standards, ensuring it meets specific requirements for air gaps.

Can this elbow be used for horizontal air gap installations?

The Watts 909-ELA Air Gap Elbow Fitting is specifically designed and approved for vertical air gap installations when allowed by local codes and the backflow assembly's certification. Consult local governing authorities for installation allowances.
