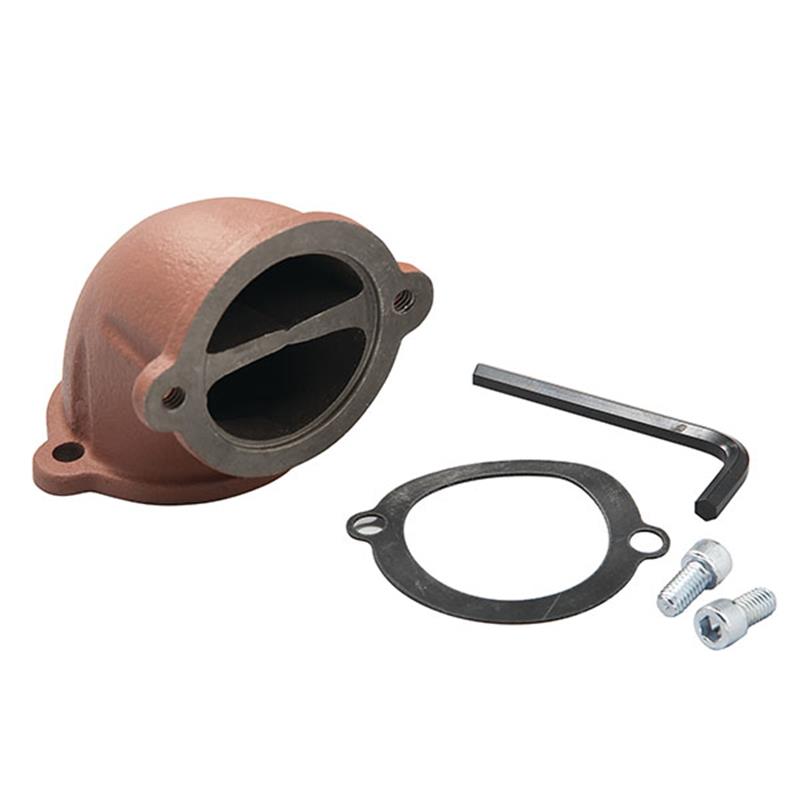

Watts 909-ELF (vertical) Air Gap Elbow Fitting

Item Number: 0881382
1 1
$261.00
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Product Type: Air Gap Elbow Fitting
  • Weight: 16.2 lb
  • Application: Vertical RPZ air gap installation
  • Compatible Air Gap Series: 009/LF009M1, 009/909, 009M2 (1 1/4" - 2" sizes)
  • Construction Material: Gray Cast Iron
  • Coating: Zinc Phosphate Primer
  • Weight: 2 lbs (0.91 kg)
  • Dimensions: 3 5/8 inches x 3 5/8 inches
  • Enables unobstructed physical separation

Description

The Watts 909-ELF Air Gap Elbow Fitting is an accessory for Watts air gaps, enabling vertical installation on Reduced Pressure Zone (RPZ) backflow assemblies. Constructed from gray cast iron with a zinc phosphate primer, this durable elbow ensures an unobstructed physical separation between the potable water supply and an open receiving vessel. It helps safely direct any nuisance discharge to a drain. Compatible with Watts air gaps for 1 1/4 inch to 2 inch Series 009/LF009M1, 009/909, and 009M2 backflow preventers. It weighs 2 pounds. This fitting is essential for maintaining proper backflow prevention system integrity.

Help Me Connect

The Watts 909-ELF Air Gap Elbow Fitting is specifically designed for use with Watts air gaps that connect to Reduced Pressure Zone (RPZ) backflow preventers. It facilitates the required vertical installation of the air gap, ensuring proper physical separation between the potable water supply and an open receiving vessel. This elbow is compatible with:

  • Watts air gaps for 1 1/4 inch - 2 inch Series 009/LF009M1 backflow preventers
  • Watts air gaps for 1 1/4 inch - 2 inch Series 009 and 909 backflow preventers
  • Watts air gaps for 2 inch Series 009M2 backflow preventers

Always consult local plumbing codes and the specific instructions for your Watts air gap and RPZ assembly to ensure proper installation and compliance.

View full details

Additional Details

The Watts 909-ELF Air Gap Elbow Fitting is designed for the vertical installation of Watts air gaps on Reduced Pressure Zone (RPZ) assemblies.

This gray cast iron elbow provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel, directing any nuisance discharge to a safe place.

Compatibility

  • For Watts air gaps used with 1 1/4 inch - 2 inch Series 009/LF009M1 backflow preventers
  • For Watts air gaps used with 1 1/4 inch - 2 inch Series 009 and 909 backflow preventers
  • For Watts air gaps used with 2 inch Series 009M2 backflow preventers

Construction

  • Features a durable Gray Cast Iron with Zinc Phosphate Primer construction.

Specifications

General

  • SKU: 0881382
  • Brand: Watts
  • Product Type: Air Gap Elbow Fitting
  • Application: Used for vertical installation of Watts air gaps on Reduced Pressure Zone (RPZ) assemblies
  • Material: Gray Cast Iron with Zinc Phosphate Primer

Dimensions & Weight

  • Width (A): 3 5/8 inches (92 mm)
  • Height (B): 3 5/8 inches (92 mm)
  • Weight: 2 pounds (0.91 kg)

Certificates & Approvals

  • Enables vertical installation for Watts air gaps (refer to specific air gap model approvals and local codes)
  • Associated air gaps meet ANSI/ASME A112.1.2

FAQs

What is the primary purpose of the Watts 909-ELF Air Gap Elbow Fitting?

This elbow fitting is designed to facilitate the vertical installation of Watts air gaps used with Reduced Pressure Zone (RPZ) backflow preventers. It ensures proper physical separation for safe discharge.

What material is the 909-ELF elbow made from?

The Watts 909-ELF Air Gap Elbow Fitting is constructed from gray cast iron and finished with a zinc phosphate primer for durability.

Which Watts backflow preventer series is this elbow compatible with?

It is compatible with Watts air gaps used for 1 1/4 inch - 2 inch Series 009/LF009M1, 1 1/4 inch - 2 inch Series 009 and 909, and 2 inch Series 009M2 Reduced Pressure Zone backflow preventers.

Can this elbow be installed horizontally?

No, this 909-ELF elbow is specifically designed for vertical installation of Watts air gaps on RPZ assemblies.

Does this product come with installation hardware?

The product is the elbow fitting itself. While the image shows a gasket, screws, and a hex key, the text description does not explicitly state these are included with SKU 0881382. It's best to consult the product packaging or supplier for exact contents.
