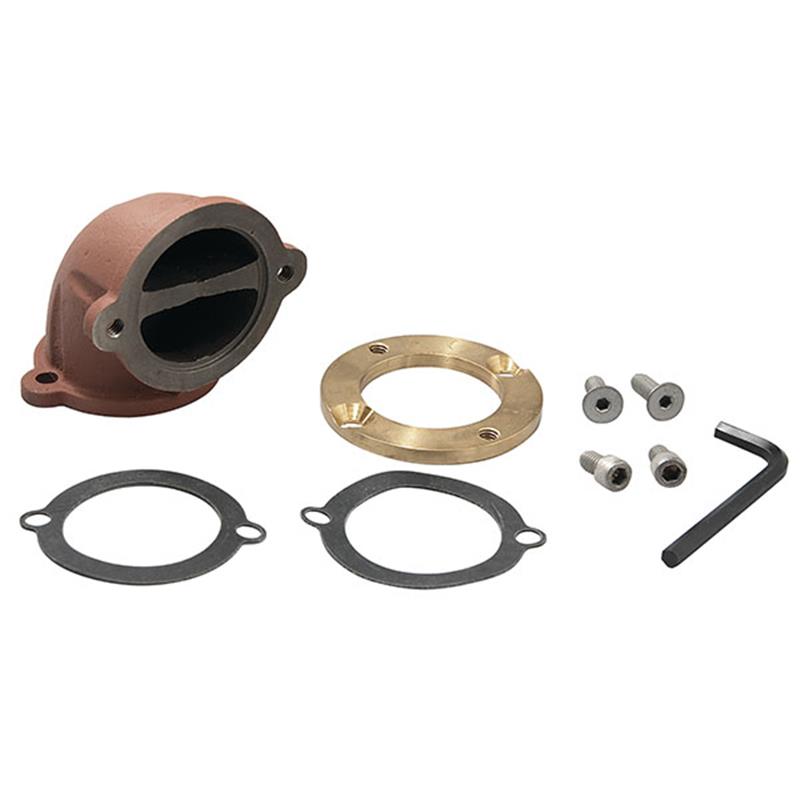

Watts 909-ELH (vertical) Air Gap Elbow Fitting

Item Number: 0881384
1 1
$778.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Model: 909EL-H
  • Weight: 18.4 lb
  • Product Type: Air Gap Elbow Fitting
  • Compatible with Watts 009/LF009, 909/LF909 RPZ Series
  • For 2 1/2 inch to 3 inch RPZ assemblies
  • Outlet Connection Size: 2 inch NPT
  • Designed for vertical installation
  • Material: Durable metal construction
  • Provides unobstructed physical separation for backflow prevention

Description

The Watts 909-ELH Air Gap Elbow Fitting is a crucial component for installing Watts air gaps in a vertical orientation on Reduced Pressure Zone (RPZ) backflow assemblies. This durable metal elbow connects to the relief port of 2 1/2-inch to 3-inch Watts 009/LF009 and 909/LF909 series RPZ devices, providing unobstructed physical separation for potable water supply lines. It effectively channels nuisance discharge into a drain line, maintaining system integrity. Constructed with a protective coating and certified to ANSI/ASME A112.1.2, this fitting ensures reliable performance in backflow prevention systems.

Help Me Connect

Compatibility and Installation

The Watts 909-ELH Air Gap Elbow Fitting is specifically designed for use with Watts 009/LF009 and 909/LF909 Series Reduced Pressure Zone (RPZ) assemblies in the 2 1/2 inch to 3 inch size range. It attaches to the relief port of the RPZ device to facilitate vertical installation of an air gap and a subsequent drain line. This setup ensures an unobstructed physical separation for effective backflow prevention and directs any discharge safely away.

View full details

Additional Details

The Watts 909-ELH Air Gap Elbow Fitting is designed for vertical installation with Watts air gaps on Reduced Pressure Zone (RPZ) backflow assemblies.

This elbow provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel, directing any nuisance discharge to a safe drain line.

Features

  • Provides an unobstructed physical separation, essential for backflow prevention.
  • Designed for vertical installation with Watts air gaps on RPZ assemblies.
  • Effectively manages nuisance discharge from the backflow preventer's relief port.
  • Constructed from durable metal with a protective coating for longevity.
  • Recommended for installation with an air gap and drain line on RPZ assemblies.

Specifications

  • Model: 909EL-H
  • Product Type: Air Gap Elbow Fitting (Vent Elbow)
  • Compatible RPZ Assembly Series: Watts 009/LF009, 909/LF909 Series
  • Compatible RPZ Assembly Sizes: 2 1/2 inch - 3 inch
  • Outlet Connection Size (NPT): 2 inch
  • Construction Material: Metal
  • Finish: Durable Coating

Certificates & Approvals

  • ANSI/ASME A112.1.2

FAQs

What is the primary purpose of the Watts 909-ELH Air Gap Elbow Fitting?

The primary purpose is to enable vertical installation of Watts air gaps on Reduced Pressure Zone (RPZ) backflow assemblies. It provides an unobstructed physical separation to prevent backflow and directs any discharge to a drain.

Which Watts RPZ series are compatible with the 909-ELH elbow?

This elbow is compatible with Watts 009/LF009 and 909/LF909 Series Reduced Pressure Zone (RPZ) backflow assemblies.

What size RPZ assemblies can this elbow be used with?

The 909-ELH Air Gap Elbow Fitting is designed for use with Watts RPZ assemblies in the 2 1/2 inch to 3 inch size range.

What is the material of construction for the 909-ELH elbow?

The 909-ELH Air Gap Elbow is constructed from durable metal and features a protective coating for longevity in various operating environments.

What certifications does the 909-ELH Air Gap Elbow hold?

This air gap elbow is certified to ANSI/ASME A112.1.2, ensuring it meets recognized standards for air gap fittings.
