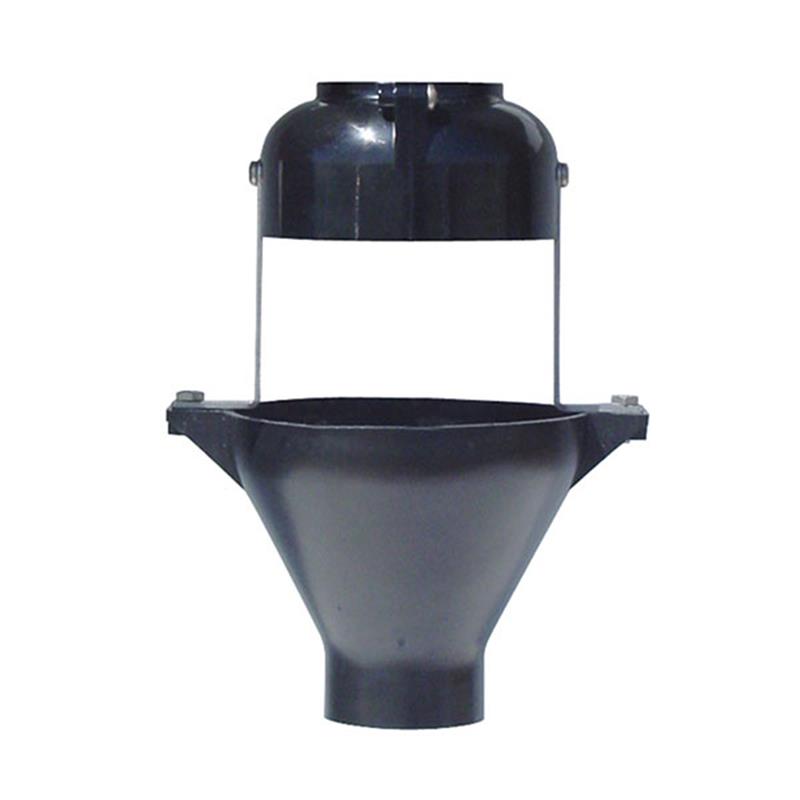

Watts 994-AGKP Air Gap Drain Fitting

Item Number: 0881397
1 1
$559.13
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Use with Watts 994 Series (2 1/2" - 10")
  • Weight: 2.1 lb
  • Body Material: Plastic
  • Drain Connection: 2 inch Female NPT
  • Weight: 1.50 lb
  • Overall Height: 11 1/4 inches
  • Prevents nuisance discharge
  • ANSI/ASME A112.1.2 Approved
  • Can be installed vertically or horizontally

Description

The Watts 994-AGKP Air Gap Drain Fitting is a plastic splash guard designed for 2 1/2 to 10 inch Watts 994 Series Reduced Pressure Zone (RPZ) backflow assemblies. It ensures a physical separation between the potable water supply line and an open receiving vessel, safely directing nuisance discharge. This lightweight fitting attaches to the RPZ relief port and features a 2 inch female NPT connection for drainage. It can be installed both vertically and horizontally, though vertical installations require a vent elbow. This component is crucial for proper backflow assembly function and compliance.

Help Me Connect

The Watts 994-AGKP Air Gap Drain Fitting is specifically designed to work with Watts 994 Series Reduced Pressure Zone (RPZ) backflow assemblies ranging from 2 1/2 to 10 inches in size. It attaches directly to the relief port of these RPZ devices to manage discharge. The bottom of the fitting features a 2 inch Female NPT connection, which is used to pipe any discharge to an appropriate drain. For vertical installations, a separate vent elbow is required.

View full details

Additional Details

The Watts 994-AGKP Air Gap Drain Fitting is a dedicated splash guard designed for use with Watts 994 Series Reduced Pressure Zone (RPZ) backflow assemblies. This fitting provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel, ensuring any nuisance discharge is directed safely to a drain.

Features

  • Designed for use with Watts 994 Series RPZ backflow assemblies
  • Accommodates 2 1/2 to 10 inch 994 Series sizes
  • Constructed from lightweight plastic for durability
  • Prevents nuisance discharge by directing it to a drain
  • Recommended for installation with an air gap and drain line

Connections & Installation

  • Designed to attach to the relief port on a Reduced Pressure Zone (RPZ) backflow device
  • Features a 2 inch Female NPT connection at the bottom for drainage
  • Can be installed vertically or horizontally (a vent elbow is required for vertical installation)

Specifications

  • Series Compatibility: Watts 994 Series (2 1/2 to 10 inch)
  • Body Material: Plastic
  • Drain Connection: 2 inch Female NPT
  • Overall Length (A): 8 inches (203 mm)
  • Overall Height (B): 11 1/4 inches (286 mm)
  • Weight: 1.50 lb (0.68 kg)

Certificates & Approvals

  • ANSI/ASME A112.1.2

FAQs

What is the primary purpose of the Watts 994-AGKP Air Gap Drain Fitting?

The primary purpose is to provide an unobstructed physical separation between a potable water supply line's discharge and an open receiving vessel. It directs any nuisance discharge from a Reduced Pressure Zone (RPZ) backflow assembly to a safe drain.

Which Watts backflow assemblies is this air gap compatible with?

This air gap drain fitting is compatible with Watts 994 Series Reduced Pressure Zone (RPZ) backflow assemblies, specifically those ranging from 2 1/2 inches to 10 inches in size.

What type of connection does this air gap drain fitting have for drainage?

The bottom of the Watts 994-AGKP Air Gap Drain Fitting features a 2 inch Female NPT (National Pipe Taper) connection for easily piping discharge to a drain line.

Can this air gap be installed both vertically and horizontally?

Yes, the Watts 994-AGKP Air Gap Drain Fitting can be installed both vertically and horizontally. However, for vertical installations, a separate vent elbow is required.

What material is the Watts 994-AGKP Air Gap Drain Fitting made from?

The Watts 994-AGKP Air Gap Drain Fitting is constructed from durable, lightweight plastic.
