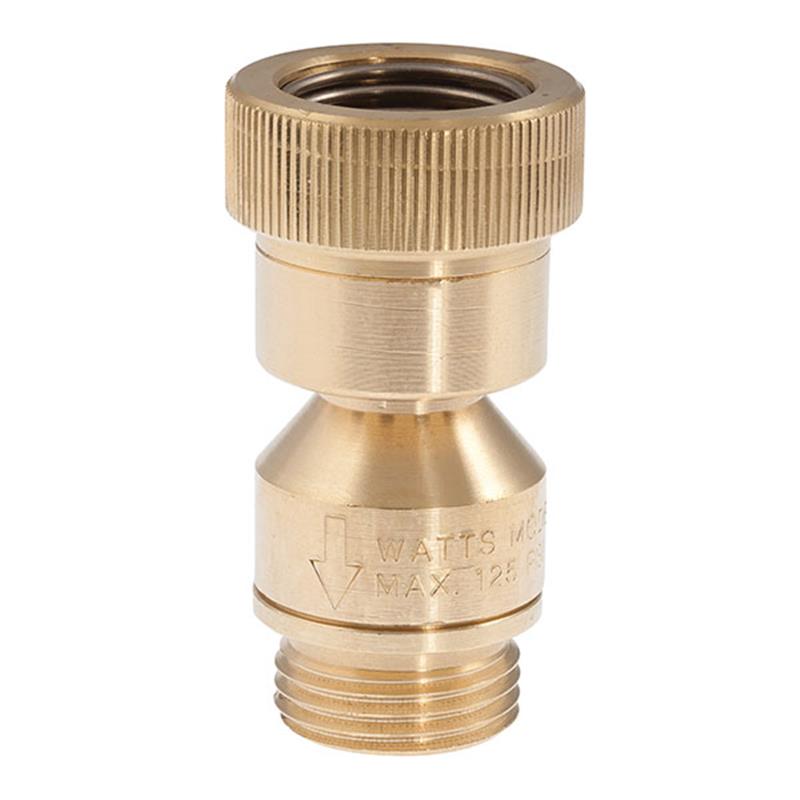

Watts LFN9-CD Hose Bibb Vacuum Breaker with Atmospheric Vent

Item Number: 0792099
1 1
$404.63
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Lead Free Brass body construction
  • Weight: 28.0 lb
  • Inlet: 3/4 inch Female Hose Thread
  • Outlet: 3/4 inch Male Hose Thread
  • Maximum Operating Pressure: 125 psi
  • Maximum Operating Temperature: 180°F
  • In-line field testable
  • Manually drainable for freeze protection
  • ASSE Std. 1052 Approved

Description

The Watts LFN9-CD is a 3/4 inch Lead Free Field Testable Hose Connection Backflow Preventer, designed to prevent contamination of potable water from backsiphonage and low-head backpressure. It features a durable lead-free brass body with two independent check valves and an atmospheric vent. This device is in-line field testable, non-removable, and manually drainable for freeze protection. It can be installed vertically or horizontally and is ideal for hose connections at service sinks, chemical dispensers, sill cocks, and frost proof hydrants. It supports a maximum operating pressure of 125 psi and temperature of 180°F.

Help Me Connect

Connections and Compatibility

This Watts LFN9-CD backflow preventer features a 3/4 inch standard female hose thread inlet and a 3/4 inch standard male hose thread outlet. It is designed to be screwed directly to a standard sill cock, yard hydrant, or wall hydrant. For proper installation, use only with approved hose bibbs or hose fittings that have four or more full American National Hose (NH) threads.

Warranty Information

Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
View full details

Additional Details

The Watts LFN9-CD is a 3/4 inch Lead Free Field Testable Hose Connection Backflow Preventer designed to prevent potable water supply contamination from high-hazard backsiphonage backflow and low-head backpressure (10 feet or less).

This backflow preventer is ideally suited for preventing backflow associated with hose connections, attaching directly to sill cocks, yard hydrants, or wall hydrants.

Features and Design

  • Features two independently operating rubber and stainless steel check valves with an atmospheric vent located between them.
  • The exclusive "Non-removable" design eliminates the need for break-away set screws.
  • In-line field testable without special gauges, allowing for easy verification of check valve integrity.
  • Manually drainable for freeze protection.
  • Constructed from a durable brass body with stainless steel checks for corrosion resistance.
  • Provides positive backsiphonage protection.
  • Can be installed vertically or horizontally.
  • Streamlined design for low pressure drop.

Applications

  • Service sinks
  • Chemical dispensers
  • Sill cocks
  • Frost proof hydrants

Note: This device is not intended for installations where emergency or temporary water discharge can cause water damage, nor should it be subjected to continuous pressure (more than 12 hours) or backpressure (more than 10 feet).

Specifications

General

  • Product Type: Field Testable Hose Connection Backflow Preventer
  • Series: LFN9-CD
  • Body Material: Lead Free Brass
  • Check Valves: Rubber and Stainless Steel
  • Installation Orientation: Vertical or Horizontal
  • Weight: .56 lbs. (.25 kg.)

Connections

  • Inlet Connection: 3/4 inch Standard Female Hose Thread
  • Outlet Connection: 3/4 inch Standard Male Hose Thread

Performance

  • Maximum Operating Pressure: 125 psi (8.6 bar)
  • Maximum Operating Temperature: 180°F (82°C)
  • Low-head Backpressure Limit: 10 ft. (or less)
  • Rated Flow: 4 gpm

Certificates & Approvals

  • ASSE Std. 1052
  • Lead Free Compliant (wetted surface contains less than 0.25% lead by weight)

FAQs

What type of backflow does the Watts LFN9-CD prevent?

The LFN9-CD is designed to prevent high-hazard backsiphonage backflow and low-head backpressure (10 feet or less) from contaminating the potable water supply.

What are the connection sizes and types for this backflow preventer?

It features a 3/4 inch standard female hose thread inlet and a 3/4 inch standard male hose thread outlet.

What is the maximum operating pressure and temperature for the LFN9-CD?

This device has a maximum operating pressure of 125 psi (8.6 bar) and a maximum operating temperature of 180°F (82°C).

Is this backflow preventer field testable?

Yes, the Watts LFN9-CD is in-line field testable without the need for special test gauges or instruments, making verification straightforward.

Where can the Watts LFN9-CD be typically installed?

It is ideal for installations in service sinks, chemical dispensers, sill cocks, and frost-proof hydrants, especially when screwed directly to hose connections.
