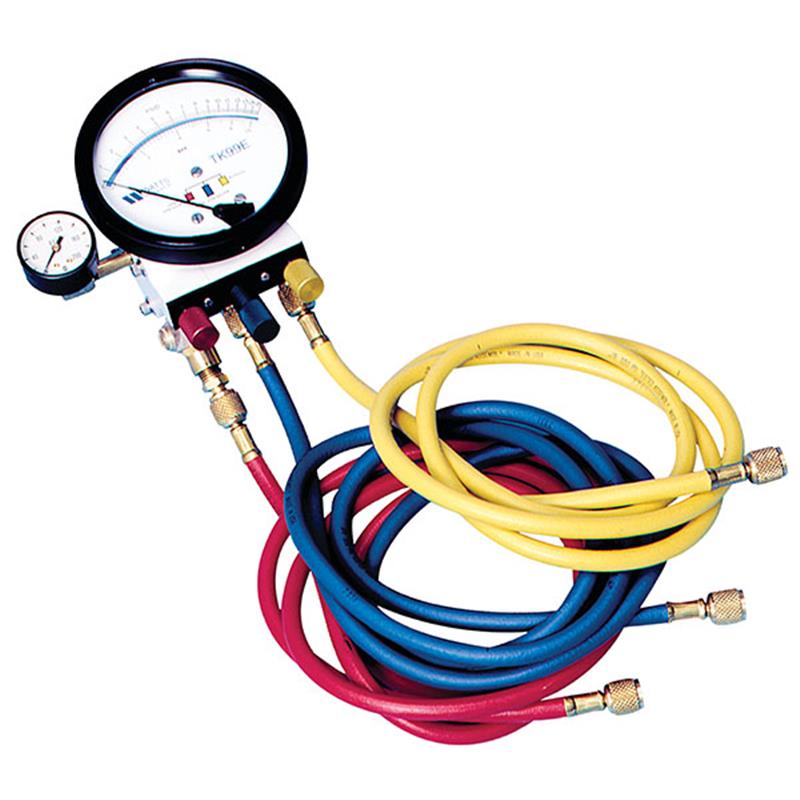

Watts TK-99E 5 Valve Backflow Test Kit

Item Number: 0385511
1 1
$7,920.74
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Accuracy: +/-1% of full scale
  • Face Gauge Diameter: 4 1/2" (114mm)
  • Pressure Gauge Range: 0 - 200psi
  • Maximum Working Pressure: 200 psi
  • Maximum Working Temperature: 200°F
  • Includes (3) 6ft hoses with swivel couplings
  • Durable carrying case included
  • Three lightweight needle valves

Description

The Watts TK-99E Backflow Preventer Test Kit is a portable device designed for accurate testing of pressure vacuum breakers, anti-spill vacuum breakers, reduced pressure zone assemblies, and double check valve assemblies. This compact kit offers simplified operation and rugged reliability with +/-1% full scale accuracy. It features a 4 1/2" diameter dual-scale gauge measuring 0-200psi, three lightweight needle valves, and color-coded hoses for easy identification. The kit includes various adapters, three 6ft hoses with female-threaded swivel couplings, a securing strap, shock cord, and a durable carrying case for convenience and protection. It handles a maximum working pressure of 200 psi and temperature of 200°F. Item number 0385511.

Help Me Connect

Connections

  • The kit includes three 6ft hoses with female-threaded swivel couplings for connecting to backflow preventers.
  • A variety of bushings are supplied to facilitate connections: (3) 3/8" x 1/4" bushings, (3) 1/2" x 1/4" bushings, and (3) 3/4" x 1/4" bushings.
  • The kit also includes (3) 1/4" flared fittings for connection versatility.
View full details

Additional Details

The Watts TK-99E Backflow Preventer Test Kit is a compact, portable device designed for testing various backflow preventer assemblies, including pressure vacuum breakers, anti-spill vacuum breakers, reduced pressure zone assemblies, and double check valve assemblies.

This test kit offers simplified operation and rugged reliability in a compact package.

Features

  • Features a 4 1/2" (114mm) diameter face gauge with dual scale (0-15psi/0-1bar)
  • Pressure gauge measures 0 - 200psi
  • Includes three lightweight needle valves encased in chemical resistant bodies
  • Comes with a 16" (41mm) securing strap
  • Includes a shock cord for easy mounting
  • Equipped with replaceable hose filters and valve stem seals
  • Provided with a durable carrying case
  • Gauge accuracy is +/-1% of full scale
  • Color-coded valves and hoses for easy identification

Included Accessories

  • Adapters:
    • (3) 3/8" x 1/4" bushings
    • (3) 1/2" x 1/4" bushings
    • (3) 3/4" x 1/4" bushings
    • (3) 1/4" flared fittings
  • Hoses:
    • (3) 6ft (1828mm) hoses with female-threaded swivel couplings

Specifications

  • Accuracy: +/-1% of full scale
  • Face Gauge Diameter: 4 1/2" (114mm)
  • Face Gauge Scale: 0-15psi/0-1bar
  • Pressure Gauge Range: 0 - 200psi
  • Valve Type: Three lightweight needle valves encased in chemical resistant bodies

Included Accessories

  • Hoses: (3) 6ft (1828mm) with female-threaded swivel couplings
  • Fittings: (3) 1/4" flared fittings
  • Bushings: (3) 3/8" x 1/4", (3) 1/2" x 1/4", (3) 3/4" x 1/4"
  • Securing Strap Length: 16" (41mm)
  • Case: Durable carrying case
  • Maintenance: Replaceable hose filters and valve stem seals

Performance Ratings

  • Maximum Working Pressure: 200 psi (13.7 bar)
  • Maximum Working Temperature: 200°F (93°C)

Certificates & Approvals

  • No certifications specified in source material.

FAQs

What types of backflow preventers can be tested with the TK-99E kit?

The Watts TK-99E Backflow Preventer Test Kit is designed for testing pressure vacuum breakers, anti-spill vacuum breakers, reduced pressure zone assemblies, and double check valve assemblies.

What is the accuracy of the pressure gauge included in the kit?

The pressure gauge in the TK-99E kit has an accuracy of +/-1% of full scale, ensuring precise readings during testing.

What are the maximum operating pressure and temperature ratings for this test kit?

This test kit has a maximum working pressure of 200 psi (13.7 bar) and a maximum working temperature of 200°F (93°C).

What accessories are included for connecting the test kit to backflow preventers?

The kit includes three 6ft (1828mm) hoses with female-threaded swivel couplings, three 1/4" flared fittings, and various bushings (3/8" x 1/4", 1/2" x 1/4", 3/4" x 1/4") to accommodate different connections.

Does the Watts TK-99E kit come with a carrying case?

Yes, the TK-99E Backflow Preventer Test Kit comes with a durable carrying case for convenient transport and storage of all components.
