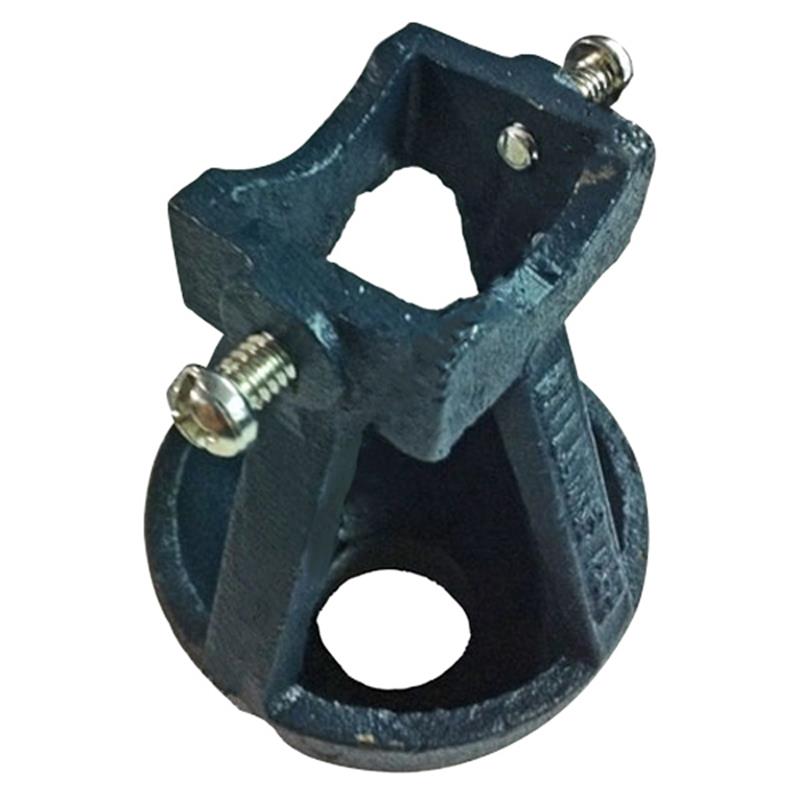

Wilkins AG-4 Air Gap Drain Fitting

Item Number: AG-4
Skip to product information
1 of 1
Regular price $217.50
Limited Stock (8)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Wilkins

  • Compatible with 3/4" - 1" Wilkins Reduced Pressure Principle Backflow Preventers
  • Weight: 2.9 lb
  • Eliminates cross-connection between drain and potable water supply
  • Features a 1" NPT Female outlet connection
  • Constructed from epoxy-painted cast grey iron
  • Includes zinc-plated steel bolts for corrosion resistance
  • Suitable for indoor installations only
  • ANSI/ASME A 112.1.2 approved

Description

The Wilkins AG-4 Air Gap Drain Fitting provides a crucial connection for 3/4" - 1" Wilkins Reduced Pressure Principle Backflow Preventers, including models 975LX/975XL2 and 975XL/975XL2. Designed for indoor use, this fitting directs nuisance water discharge to a safe drain, effectively preventing cross-contamination with the potable water supply. Its robust construction features an epoxy-painted cast grey iron body and corrosion-resistant zinc-plated steel bolts, ensuring durability. The AG-4 is equipped with an iron inlet and a 1" NPT female outlet connection.
View full details

Collapsible content

Additional Details

The Wilkins AG-4 Air Gap Drain Fitting is designed for indoor installations of 3/4" - 1" Reduced Pressure Principle Backflow Preventers.

It connects a drain pipe to the backflow preventer, directing nuisance water discharge to a safe drain while preventing a cross-connection between the drain and potable water supply.

Features

  • Reduces downtime when attaching a drain line to a backflow assembly
  • Eliminates cross-connection between the drain and potable water supply
  • Zinc-plated steel bolts resist corrosion for long-lasting effectiveness

Connections

  • Iron inlet connection designed for 3/4" - 1" backflow preventers
  • 1" Female NPT outlet connection
  • Can be mounted to the body of any drain line made of standard piping material

Specifications

  • Body Material: Epoxy-painted cast grey iron
  • Bolt Material: Zinc-plated steel
  • Inlet Connection: Iron
  • Outlet Connection: 1 inch NPT Female
  • Compatible Backflow Preventer Sizes: 3/4 inch - 1 inch
  • Compatible Backflow Preventer Models: Wilkins Model 975LX/975XL2, 975XL/975XL2
  • Installation: Indoor

Certificates & Approvals

  • ANSI/ASME A 112.1.2

FAQs

What is the primary purpose of the Wilkins AG-4 Air Gap Drain Fitting?

The Wilkins AG-4 Air Gap Drain Fitting is used to connect a drain pipe to a Reduced Pressure Principle Backflow Preventer. Its main function is to direct any nuisance water discharge to a safe drain while preventing a cross-connection with the potable water supply.

Which backflow preventer models are compatible with the AG-4 fitting?

This fitting is compatible with 3/4" - 1" Wilkins Reduced Pressure Principle Backflow Preventers, specifically Model 975LX/975XL2 and Model 975XL/975XL2. It is also designed for use with all Wilkins Reduced Pressure Principle Assemblies.

What are the connection sizes on the Wilkins AG-4?

The Wilkins AG-4 Air Gap Drain Fitting features an iron inlet connection designed to fit 3/4" - 1" backflow preventers. It has a 1" NPT female threaded outlet connection for attaching to a drain line.

What materials are used in the construction of the AG-4?

The main body of the AG-4 Air Gap Drain Fitting is made from epoxy-painted cast grey iron. It also includes zinc-plated steel bolts, which provide resistance against corrosion.

Is the Wilkins AG-4 suitable for outdoor installations?

No, the Wilkins AG-4 Air Gap Drain Fitting is specifically designed for indoor installations only. Using it outdoors may expose it to conditions not intended for its design.
