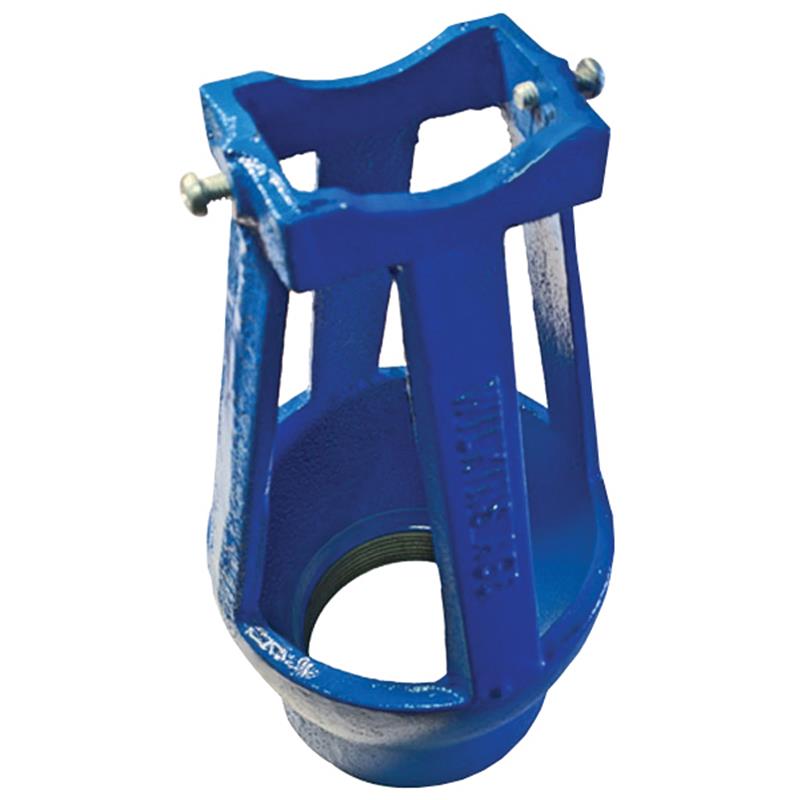

Wilkins AG-6 Air Gap Drain Fitting

Item Number: AG-6
Skip to product information
1 of 1
Regular price $363.72
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Wilkins

  • Compatible with 2-1/2" - 6" Wilkins Model 375, 375A, and 475 Backflow Preventers
  • Weight: 84.0 lb
  • Outlet Connection: 3 inch NPT Female
  • Body Material: Epoxy-painted cast grey iron
  • Bolt Material: Zinc-plated steel
  • Prevents cross-connection between drain and potable water
  • Suitable for indoor installations
  • Approved: ANSI/ASME A 112.1.2

Description

The Wilkins AG-6 Air Gap Drain Fitting is essential for safely managing discharge from 2-1/2 inch to 6 inch Wilkins Model 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers. This fitting connects a drain pipe to the backflow preventer, directing nuisance water to a safe drain while preventing cross-connection with the potable water supply. Constructed from durable epoxy-painted cast grey iron with zinc-plated steel bolts and featuring a 3 inch NPT outlet, it ensures reliable, long-lasting performance. The AG-6 is approved to ANSI/ASME A 112.1.2 standards.
View full details

Collapsible content

Additional Details

The Wilkins AG-6 Air Gap Drain Fitting is designed for indoor installations of 2-1/2 inch to 6 inch Reduced Pressure Principle Backflow Preventers, such as Models 375, 375A, and 475.

This fitting provides a secure connection for a drain pipe to the backflow preventer, effectively directing nuisance water discharge to a safe drain and preventing cross-connection between the drain and potable water supply.

Connections

  • Designed to attach to the relief port on a Reduced Pressure Zone (RPZ) backflow device
  • Features a 3 inch NPT outlet connection for piping to a drain
  • Can be mounted to the body of any drain line made of any standard piping material

Features

  • Eliminates cross-connection between the drain and potable water supply
  • Reduces downtime associated with attaching a drain line to a Reduced Pressure Principle Assembly
  • Compatible with all Wilkins Reduced Pressure Principle Assemblies within its size range

Materials

  • Body Material: Epoxy-painted cast grey iron elbow
  • Bolts Material: Zinc-plated steel bolts for corrosion resistance

Specifications

  • Compatible Backflow Preventer Sizes: 2-1/2 inch - 6 inch
  • Outlet Connection: 3 inch NPT Female
  • Body Material: Epoxy-painted cast grey iron
  • Bolt Material: Zinc-plated steel

Certificates & Approvals

  • Approved: ANSI/ASME A 112.1.2

FAQs

What is the primary function of the Wilkins AG-6 Air Gap Drain Fitting?

The primary function of the Wilkins AG-6 Air Gap Drain Fitting is to connect a drain pipe to a backflow preventer, safely directing nuisance water discharge to a drain. It also prevents a cross-connection between the drain system and the potable water supply.

Which backflow preventer models are compatible with the AG-6 fitting?

The AG-6 Air Gap Drain Fitting is compatible with Wilkins Model 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers, specifically those ranging from 2-1/2 inch to 6 inch in size.

What are the connection specifications for the AG-6 Air Gap Drain Fitting?

The AG-6 features an iron inlet that connects to the relief port of the backflow preventer and a 3 inch NPT female outlet connection for attaching a drain pipe.

What materials are used in the construction of the Wilkins AG-6?

The Wilkins AG-6 is constructed with an epoxy-painted cast grey iron elbow for the body, ensuring durability. It also uses zinc-plated steel bolts, which provide resistance to corrosion.

Can the AG-6 be used in outdoor installations?

No, the AG-6 Air Gap Drain Fitting is specifically designed for indoor installations of Reduced Pressure Principle Backflow Preventers.
