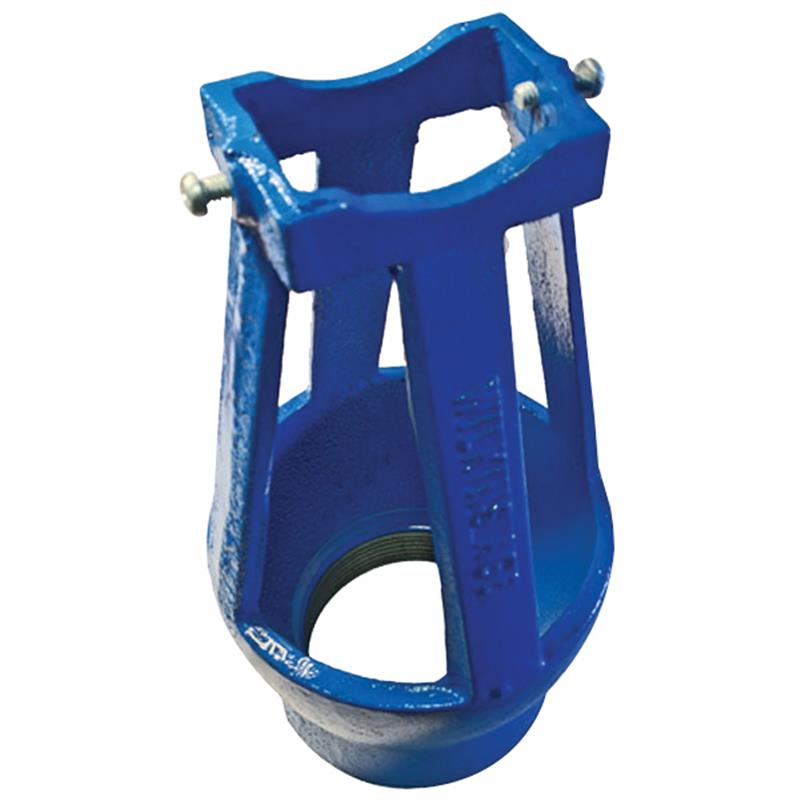

Wilkins AG-7 Air Gap Drain Fitting

Item Number: AG-7
Skip to product information
1 of 1
Regular price $590.29
Limited Stock (2)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Wilkins

  • Compatible with 8" - 10" Wilkins Model 375, 375A, 475 Backflow Preventers
  • Outlet Connection: 4 inch NPT
  • Body Material: Epoxy-painted cast grey iron
  • Bolt Material: Zinc-plated steel
  • Eliminates cross-connection
  • Designed for indoor installations
  • Approved: ANSI/ASME A 112.1.2

Description

The Wilkins AG-7 Air Gap Drain Fitting provides a crucial connection for 8-10 inch Wilkins Model 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers. Designed for indoor use, this fitting safely directs nuisance water discharge from the backflow preventer to a drain. Its primary function is to eliminate cross-connection hazards between the potable water supply and the drainage system. Constructed from durable epoxy-painted cast grey iron with zinc-plated steel bolts, it features a 4-inch NPT outlet for reliable drain pipe attachment.

Help Me Connect

Backflow Preventer Connection

The Wilkins AG-7 Air Gap Fitting is specifically designed for indoor installations with 8 inch to 10 inch Wilkins Model 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers. It attaches directly to the relief port of these backflow preventers.

Drain Line Connection

The fitting features a 4 inch NPT outlet connection, allowing for easy attachment to any standard drain pipe. This directs any nuisance water discharge safely away, preventing potential cross-contamination.

View full details

Collapsible content

Additional Details

The Wilkins AG-7 Air Gap Drain Fitting is designed to attach to the relief port on a Reduced Pressure Principle (RPP) backflow preventer to direct nuisance water discharge to a safe drain.

This fitting ensures proper drainage while eliminating the risk of a cross-connection between the drain system and the potable water supply, making it ideal for indoor installations.

Connections

  • Features an iron inlet connection for compatibility with backflow preventer relief ports.
  • Equipped with a 4 inch NPT outlet connection for attachment to a drain pipe.
  • Can be mounted to the body of any drain line made of standard piping material.

Construction

  • Constructed with an epoxy-painted cast grey iron elbow for durability.
  • Includes zinc-plated steel bolts to resist corrosion and ensure long-lasting effectiveness.

Specifications

  • Model: AG-7
  • Backflow Preventer Compatibility: 8" - 10" Wilkins Model 375, 375A, 475 Reduced Pressure Principle Backflow Preventers
  • Inlet Material: Iron
  • Outlet Connection: 4 inch NPT
  • Body Material: Epoxy-painted cast grey iron
  • Bolt Material: Zinc-plated steel
  • Installation Location: Indoor

Certificates & Approvals

  • ANSI/ASME A 112.1.2

FAQs

What is the primary purpose of the Wilkins AG-7 Air Gap Fitting?

The Wilkins AG-7 Air Gap Fitting is used to safely direct nuisance water discharge from the relief port of a Reduced Pressure Principle Backflow Preventer to a drain, preventing a cross-connection with the potable water supply.

Which backflow preventer models are compatible with the AG-7 fitting?

The AG-7 Air Gap Fitting is compatible with 8 inch to 10 inch Wilkins Model 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers.

What are the main connections on the Wilkins AG-7?

The AG-7 features an iron inlet connection for the backflow preventer and a 4 inch NPT outlet connection for attaching to a standard drain pipe.

What materials are used in the construction of the AG-7 Air Gap Fitting?

The AG-7 fitting is constructed with an epoxy-painted cast grey iron elbow and includes zinc-plated steel bolts for enhanced durability and corrosion resistance.

Is the Wilkins AG-7 Air Gap Fitting suitable for outdoor installations?

No, the AG-7 Air Gap Fitting is specifically designed for indoor installations of compatible Reduced Pressure Principle Backflow Preventers.
