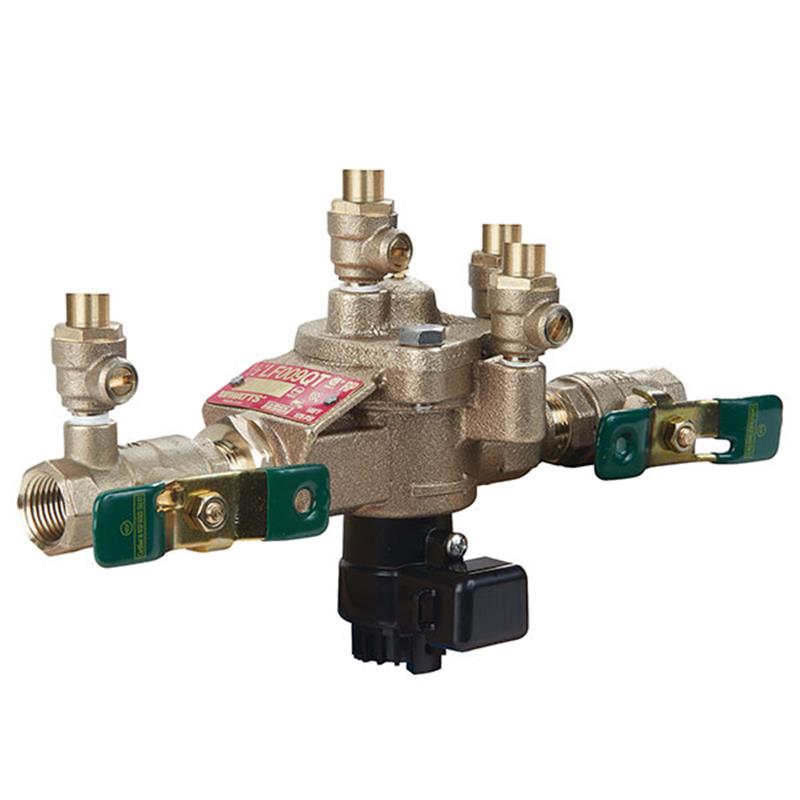

1/2 009-QT-FS

Item Number: 88004015
1 1
$653.65
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 1/2 inch
  • Weight: 4.7 lb
  • Body Material: Bronze
  • Shutoff Valves: Quarter Turn Ball Valves with Tee Handles
  • Connections: NPT Inlet and Outlet
  • Flood Sensor: SentryPlus Alert® Technology
  • Maximum Supply Pressure: 175 psi
  • Water Temperature Range: 33°F – 180°F
  • Certifications: ASSE No. 1013, AWWA C511-92, CSA B64.4

Description

This Watts Series 009 Reduced Pressure Zone (RPZ) Backflow Preventer is a 1/2 inch bronze assembly designed to protect potable water supplies from pollution due to backsiphonage or backpressure. It features durable bronze construction, NPT inlet and outlet connections, and quarter-turn ball valve shutoffs with tee handles. The compact design allows for easy maintenance with a single access cover. An integrated flood sensor with SentryPlus Alert® technology detects relief valve discharges, requiring an add-on connection kit for active alerts and integration with building systems. It operates up to 175 psi and 180°F, meeting ASSE 1013, AWWA C511-92, and CSA B64.4 standards.

Help Me Connect

Flood Sensor Connectivity

  • The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • To activate the sensor and relay alerts for potential flooding events, an add-on connection kit is required (sold separately).
  • Connection kit options include integration with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Without the connection kit, the sensor is a passive component and has no communication with any other device.
View full details

Additional Details

This Watts Series 009 Reduced Pressure Zone (RPZ) backflow preventer, 1/2 inch with quarter-turn shutoff valves and flood sensor, is designed to protect potable water supplies from dangerous cross-connections caused by backsiphonage and/or backpressure, in accordance with national plumbing codes and water authority requirements. It is ideal for continuous pressure piping applications and at service line entrances identified as health hazards or for contaminants.

Its compact modular design features a single access cover for easy maintenance and in-line repairs.

Primary Use

  • Prevents polluted water from entering potable water supply systems.
  • Suitable for continuous pressure piping applications.
  • Ideal for cross-connections identified as health hazards.

Design & Construction

  • Bronze body construction for durability.
  • NPT inlet and outlet connections.
  • Features quarter-turn, full-port, resilient-seated bronze ball valve shutoffs with tee handles.
  • Includes two in-line, independent check valves, captured springs, and replaceable check seats.
  • An internal pressure differential relief valve is located in a zone between the two check modules, designed for reduced installation clearances.
  • Features four resilient-seated test cocks (screwdriver slotted).
  • Large body passages provide low pressure drop.
  • No special tools required for servicing.

Flood Detection

  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • The sensor can relay alerts for potential flooding events when paired with an add-on connection kit.


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

General

  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Series: 009
  • Size: 1/2 inch
  • Body Material: Bronze
  • Shutoff Valves: Quarter Turn, Full Port, Resilient Seated Bronze Ball Valves with Tee Handles
  • Connections: NPT Inlet and Outlet
  • Test Cocks: Four, Resilient Seated, Ball Type, Screwdriver Slotted
  • Check Valves: Two in-line, Independent
  • Relief Valve: Internal Pressure Differential
  • Sensor: Flood Detection with SentryPlus Alert® Technology (1/2" - 2")

Performance

  • Maximum Supply Pressure: 175 psi (12.1 bar)
  • Water Temperature Range: 33°F – 180°F (0.5°C – 75°C)

Dimensions (Approximate)

  • Length (A): 10 inches (250 mm)
  • Height (B): 5 7/8 inches (149 mm)
  • Width (C): 3 3/8 inches (86 mm)
  • Depth (D): 2 1/2 inches (64 mm)
  • Length (L): 5 1/2 inches (140 mm)
  • Width (M): 2 3/4 inches (70 mm)
  • Height (N): 2 1/4 inches (57 mm)

Weight (Approximate)

  • Weight: 5 lbs (2 kg)

Certificates & Approvals

  • USC
  • ASSE No. 1013
  • AWWA C511-92
  • CSA B64.4
  • IAPMO File No. 1563
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

Internal Components Material

  • Disc Material: Silicone Rubber (first check, second check, relief valve)
  • Check Seats: Replaceable Polymer
  • Relief Valve Seats: Removable
  • Cover Bolts: Stainless Steel

FAQs

What is the primary function of the Watts Series 009 RPZ backflow preventer?

Its primary function is to protect potable water supplies by preventing polluted water from flowing back into the clean water system due to backsiphonage or backpressure, in compliance with national plumbing codes.

How does the integrated flood sensor work, and what is required to activate it?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate the sensor and enable it to relay alerts, an add-on connection kit (sold separately) is required. Without the kit, the sensor is passive.

What types of connections does this backflow preventer have?

This 1/2 inch Watts Series 009 RPZ assembly features NPT (National Pipe Taper) inlet and outlet connections, along with quarter-turn, full-port, resilient-seated bronze ball valve shutoffs.

What are the operating pressure and temperature limits for this device?

This backflow preventer is suitable for supply pressures up to 175 psi (12.1 bar) and water temperatures ranging from 33°F to 180°F (0.5°C to 75°C).

Is this product suitable for use in all plumbing systems in the United States?

A warning states it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, it is crucial to consult local water authorities, building, and plumbing codes.
