1/2 SS009M3-QT-S

Item Number: 0062988
1 1
$4,995.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Nominal Size: 1/2 inch
  • Weight: 6.8 lb
  • Body Material: Investment Cast 316 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • NPT Inlet and Outlet Connections
  • Lead Free* Wetted Components
  • Modular Check Construction
  • Replaceable Check and Relief Valve Seats
  • Internal Flood Sensor for Leak Detection

Description

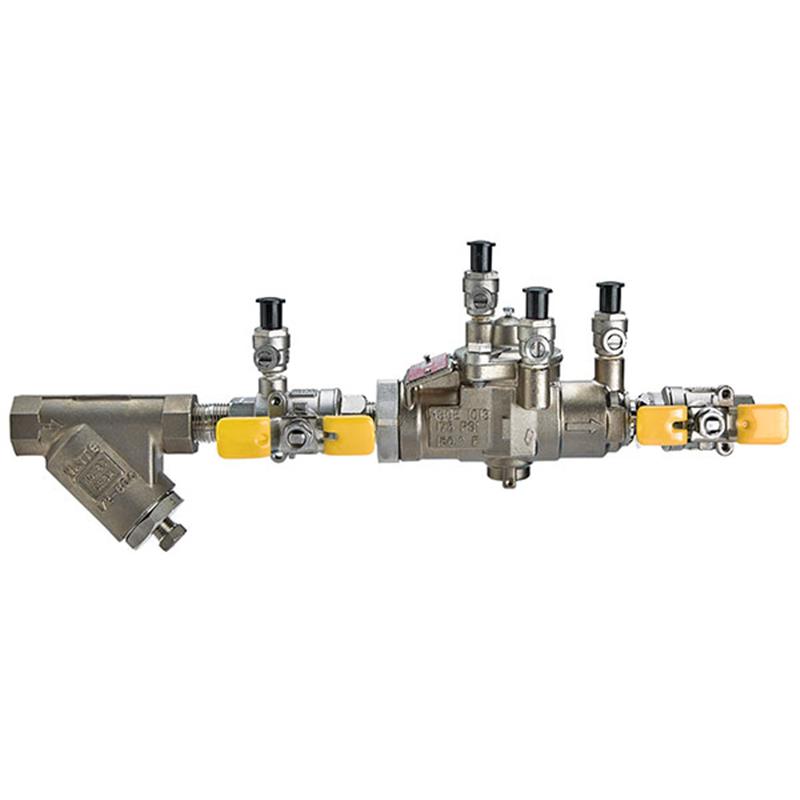

The Watts Series SS009 1/2 inch stainless steel reduced pressure zone backflow preventer assembly protects potable water supplies from pollution caused by backsiphonage or backpressure. Constructed from investment cast 316 stainless steel with Lead Free* wetted components, this assembly offers superior corrosion resistance and durability. It features NPT inlet and outlet connections, quarter-turn shutoff valves, and top-mounted vandal-resistant test cocks for easy maintenance. With a maximum working pressure of 175 PSI and temperature of 180°F, it is ideal for industrial, medical, and aggressive atmospheric applications. An integrated flood sensor enhances safety by detecting excessive water discharges.

Help Me Connect

This 1/2 inch reduced pressure zone backflow preventer features NPT inlet and outlet connections, designed for direct threaded connection to corresponding NPT piping systems. It is suitable for health hazard installations in various environments where protection against backsiphonage and backpressure is required.

Applications

  • Industrial and plant usage
  • Medical/diagnostic equipment
  • Reverse osmosis systems
  • Carbonated beverage machines
  • Breweries and distilleries
  • Paper and pulp industries
  • Chemical plants
  • Aggressive atmospheres
View full details

Additional Details

This Watts Series SS009 1/2 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering the potable water supply due to backsiphonage or backpressure. It complies with national plumbing codes and water authority requirements, making it ideal for a variety of health hazard installations where downstream liquid may damage bronze or where lead/copper trace elements need to be eliminated.

Key Features

  • Investment Cast 316 Stainless Steel Assembly for superior corrosion resistance.
  • All wetted valve components, including test cocks, ball valve shutoffs, and pipe nipples, are made from Lead Free* stainless steel or plastic.
  • Features NPT inlet and outlet connections.
  • Quarter turn full port resilient seated ball valve shutoffs with tee handles.
  • Top-mounted, vandal-resistant EZ-TC test cocks provide easy access for testing.
  • Modular check construction with nonreversible checks and captured springs for simplified servicing.
  • True line sized check modules open further for dirt and debris to pass freely, reducing fouling.
  • Replaceable check and relief valve seats for economical repair without special tools.
  • Internal relief valve for right and left hand installations.
  • Equipped with a flood sensor on the relief valve to detect excessive water discharges.

An add-on connection kit is required to activate the flood sensor. Without this kit, the sensor is a passive component with no communication. Use of the flood sensor does not replace compliance with all installation, operation, and maintenance instructions, codes, and regulations, including proper drainage for discharges.

Specifications

General

  • Nominal Size: 1/2 inch
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Working Temperature: 180°F (82°C)
  • Minimum Working Temperature: 33°F (0.5°C)

Materials

  • Body Material: 316 Stainless Steel
  • Strainer Material: Bronze
  • Check Holder Material: Reinforced Polymer
  • Disc Material: Silicone Rubber
  • Relief Valve Seat Material: Removable, reinforced polymer
  • Cover/Bolts Material: Stainless Steel
  • Wetted Components: Lead Free* Stainless Steel or Plastic

Connections

  • Inlet Connection: NPT
  • Outlet Connection: NPT

Certificates & Approvals

  • ASSE 1013
  • AWWA C511-92
  • CSA B64.4
  • USC Manual 9th Edition

FAQs

What is the primary function of the Watts Series SS009 backflow preventer?

Its primary function is to protect potable water supplies from contamination due to backsiphonage or backpressure from non-potable sources, ensuring compliance with plumbing codes.

What material is the Watts Series SS009 backflow preventer constructed from?

The assembly body is constructed from investment cast 316 stainless steel, providing excellent corrosion resistance. All wetted components are Lead Free* stainless steel or plastic.

What are the connection types for the 1/2 inch SS009M3-QT-S model?

This model features NPT (National Pipe Taper) threaded connections for both the inlet and outlet, ensuring compatibility with standard NPT piping systems.

What is the maximum operating pressure and temperature for this backflow preventer?

The Watts Series SS009 is rated for a maximum working pressure of 175 PSI and can handle continuous working temperatures up to 180°F (82°C).

Does this backflow preventer include a flood sensor?

Yes, the Watts SS009M3-QT-S model includes a flood sensor on the relief valve assembly to detect excessive water discharges. An add-on connection kit is required to activate its communication features.
