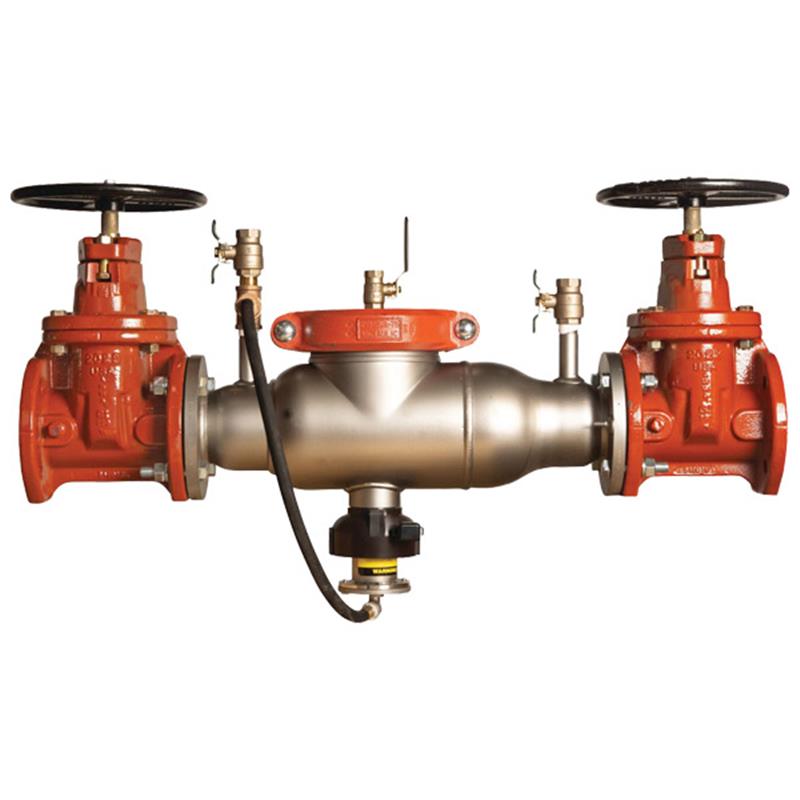

10 4000SS-DNRS-FS

Item Number: F0692731
1 1
$43,542.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Reduced Pressure Zone (RPZ) Backflow Preventer
  • Weight: 1020.0 lb
  • Nominal Size: 10 inch
  • Shutoff Valves: Domestic Non-Rising Stem (NRS)
  • Body Material: 300 Series Stainless Steel
  • Integrated SentryPlus Alert Flood Sensor
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Lightweight Stainless Steel Construction

Description

This 10 inch Ames Fire & Waterworks 4000SS reduced pressure zone backflow preventer assembly protects potable water supplies from health hazard cross-connections. It prevents reverse flow of contaminated non-potable water due to backsiphonage and backpressure. Featuring a lightweight 300 Series stainless steel body, domestic non-rising stem (NRS) gate valves, and cam-check valves, this assembly offers durability and easy installation. It includes a SentryPlus Alert flood sensor to detect excessive relief valve discharge, relaying alerts with an optional connection kit for BMS, cellular, or Wi-Fi integration. Designed for maximum flow at low pressure drop, it supports a maximum working pressure of 175 psi and a temperature range of 33-110°F.

Help Me Connect

Flood Sensor Connectivity

  • An add-on connection kit is required to activate the flood sensor. Without this kit, the flood sensor functions as a passive component with no communication capabilities.
  • Compatible connection kit options include BMS (Building Management System), cellular communication, and the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with BAS (Building Automation Systems) via RS-485 Modbus or the Nexa platform through Wi-Fi.
View full details

Additional Details

This 10 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure. It is ideal for protection at cross-connections identified as health hazard applications and from other contaminants found at the service line entrance.

Product Overview

  • Compact and short lay length design with a single access cover.
  • Features a lightweight stainless steel body for corrosion resistance and maximum strength.
  • Includes domestic non-rising stem resilient seated gate valves, spring loaded cam-check valves, a pressure differential relief valve, and test cocks.
  • The stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions make retrofitting easy.
  • Cam-check assembly provides maximum flow at low pressure drop.
  • No special tools are required for servicing.
  • Compact construction allows for smaller enclosures.
  • The stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.

Flood Sensor Technology

  • Contains a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
  • When paired with an add-on connection kit, the sensor is activated to relay alerts for potential flooding events.
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa platform through Wi-Fi.

It is important to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

  • Nominal Size: 10 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Shutoff Valves: Domestic Non-Rising Stem (NRS)
  • Flood Sensor: Yes, SentryPlus Alert Technology

Materials

  • Main Valve Body: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly: Noryl®

Performance

  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)

Dimensions (Approximate)

  • Length (A): 55 3/4 inch
  • C (NRS): 23 13/16 inch
  • Weight (with NRS Gate Valves): 773 lb

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1013
  • CSA B64.5
  • UL Classified (for sizes 2 1/2" - 10", OSY only)
  • FM Approved (OSY only)

FAQs

What is the primary function of this backflow preventer?

This 10 inch Ames 4000SS Reduced Pressure Zone (RPZ) assembly is designed to prevent contaminated, non-potable water from flowing back into the potable water supply due to backsiphonage or backpressure, protecting against health hazards at cross-connections.

What type of shutoff valves does this model use?

This particular model, 4000SS-DNRS-FS, is equipped with domestic non-rising stem (NRS) resilient seated gate valves.

How does the flood sensor feature work?

The integrated SentryPlus Alert flood sensor detects excessive water discharges from the relief valve. When paired with an optional add-on connection kit, it can relay alerts to facility personnel via BMS, cellular communication, or Wi-Fi through a Sensor Control Monitor.

What are the material benefits of this assembly?

The backflow preventer features a lightweight 300 Series stainless steel body and internal metal parts, providing long-term corrosion resistance and maximum strength. The stainless steel body is half the weight of competitive designs, simplifying installation and reducing shipping costs.

What are the maximum operating pressure and temperature?

This assembly has a maximum operating pressure of 175 psi. It is suitable for use within a temperature range of 33°F to 110°F (0.5°C to 43°C).
