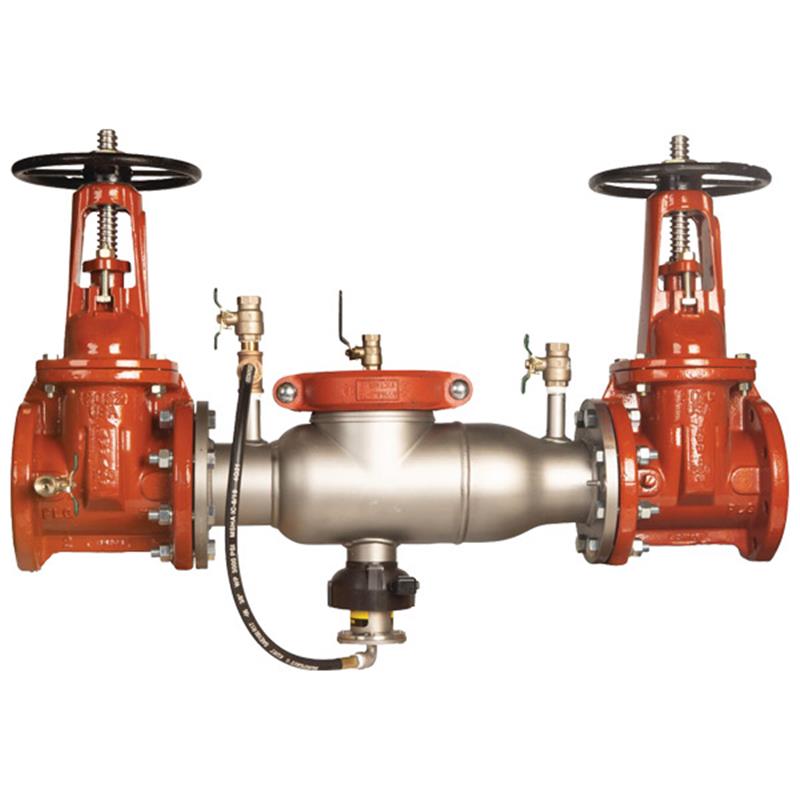

10 4000SS-DOSY-FS

Item Number: F0692729
1 1
$41,138.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 1120.0 lb
  • Body Material: 300 Series Stainless Steel
  • Valve Type: Reduced Pressure Zone Assembly
  • Shutoffs: Domestic OSY Gate Valves
  • Flood Sensor: SentryPlus Alert® technology
  • Max Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F
  • Certifications: USC, FM Approved, CSA B64.4

Description

This 10 inch Ames 4000SS Reduced Pressure Zone Backflow Preventer Assembly provides crucial protection for potable water supplies against health-hazard cross-connections. Constructed with a lightweight 300 series stainless steel body, it offers superior corrosion resistance and strength. Key features include domestic OSY resilient seated gate valves, cam-check valves for maximum flow, and an integrated SentryPlus Alert® flood sensor to detect relief valve discharges. The compact design allows for easy installation and retrofitting, while the 175 PSI maximum working pressure and 33-110°F temperature range ensure reliable performance. Item number F0692729.

Help Me Connect

Installation & Compatibility

  • This backflow preventer is suitable for health-hazard cross-connections, protecting potable water supplies from backsiphonage and backpressure.
  • The flood sensor requires an add-on connection kit for activation, offering compatibility with Building Management Systems (BMS), cellular networks, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.
  • The unit features flanged connections with dimensions conforming to AWWA Class D.
View full details

Additional Details

This 10 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of contaminated water into the potable water supply, ideal for health hazard cross-connections and other contaminants at the service line entrance.

It features a compact and short lay length design with a single access cover, offering reliable protection against backsiphonage and backpressure.

Construction & Features

  • Lightweight stainless steel body: Provides long-term corrosion resistance, maximum strength, and is half the weight of competitive designs, reducing installation and shipping costs.
  • Domestic outside stem and yoke (OSY) resilient seated gate valves.
  • Spring-loaded cam-check valves: Offer maximum flow at low pressure drop and require no special tools for servicing.
  • Pressure differential relief valve with a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Top-mounted test cocks.
  • Compact construction for smaller enclosures and easy retrofitting.
  • Integrated flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • Flood alert feature activated with an add-on sensor connection kit, compatible with BMS, cellular network communication, and the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that has no communication with any other device. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

General

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Series: 4000SS
  • Nominal Size: 10 inch
  • Body Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Gate Valves: Domestic OSY Resilient Seated
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F (0.5°C - 43°C)

Certificates & Approvals

  • Lead Content: Less than 0.25% by weight (Lead Free*)
  • Standards: AWWA C511-92
  • Certifications: USC, FM Approved, CSA B64.4
  • Flange Dimension: AWWA Class D

FAQs

What is the primary purpose of this 10 inch backflow preventer?

This 10 inch Reduced Pressure Zone Assembly is designed to protect potable water supplies from contamination caused by backsiphonage or backpressure from health-hazard cross-connections and other contaminants.

What material is the main body of the 4000SS backflow preventer made from?

The main body is constructed from lightweight 300 Series stainless steel, providing long-term corrosion resistance and maximum strength.

Does this assembly include a flood sensor, and how does it work?

Yes, it includes a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate the sensor and relay alerts to facility personnel.

What are the maximum operating pressure and temperature limits for this device?

This backflow preventer has a maximum working pressure of 175 PSI and operates within a temperature range of 33°F to 110°F (0.5°C to 43°C).

What type of shutoff valves are included with this backflow preventer?

This assembly comes with domestic outside stem and yoke (OSY) resilient seated gate valves for reliable isolation.
