Installation: Horizontal N-Pattern or Vertical Z-Pattern
Description

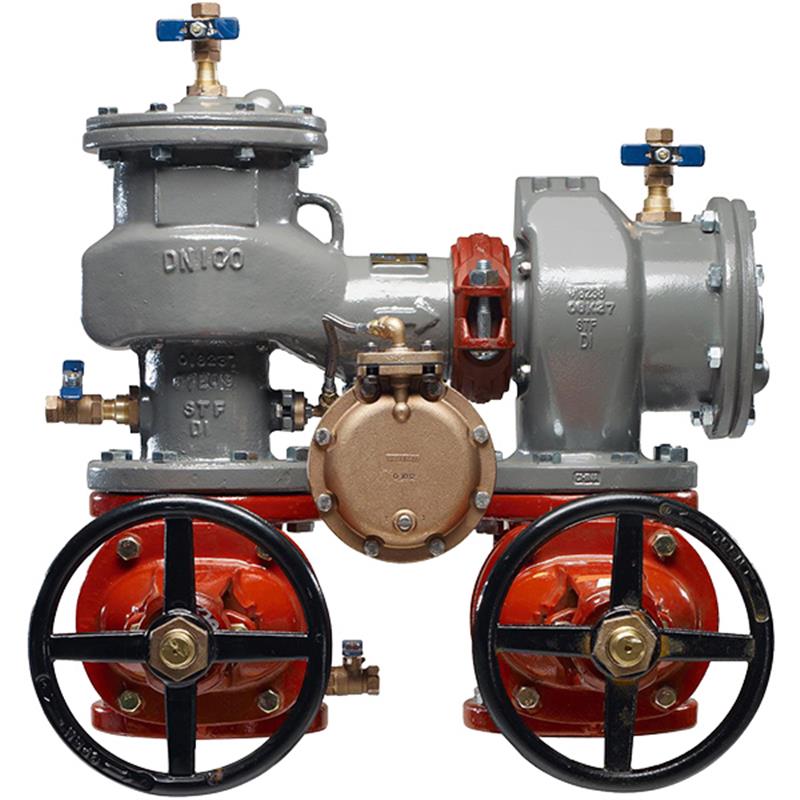

The 10 inch FEBCO MasterSeries LF880V Reduced Pressure Zone (RPZ) backflow preventer is engineered to protect potable water supplies from high hazard backpressure and backsiphonage. Featuring an epoxy-coated ductile iron body for enhanced corrosion resistance and OS&Y shutoff valves, this assembly is Lead Free for safe drinking water applications. It includes a flood sensor to detect relief valve discharge, requiring an add-on connection kit for active alerts. Rated for a maximum working pressure of 175 psi and suitable for temperatures from 33°F to 140°F, it supports both horizontal and vertical installations. Item number 2344.
Help Me Connect
Installation Orientation
This assembly supports both horizontal N-pattern and vertical up Z-pattern installations.
Flood Sensor Connectivity
The integrated flood sensor requires an add-on connection kit for activation, enabling communication with a Building Management System (BMS) or cellular network for alerts.
End Connections
The assembly's end connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.
This 10 inch MasterSeries® LF880V Reduced Pressure Zone backflow preventer assembly is designed to protect potable drinking water systems from backpressure and backsiphonage conditions for high hazard/toxic applications, in accordance with local governing water utility codes.
Design and Construction
Features a ductile iron valve body design, coated with ArmorTek®, a patented three-part advanced epoxy system to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
Designed with Lead Free construction to comply with low lead installation requirements.
Includes OS&Y (Outside Stem and Yoke) resilient seated gate shutoff valves that are UL Classified and FM Approved.
Equipped with stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
Features a modular and repairable pressure differential relief valve, clapper check assembly, and captured O-ring design.
The assembly is inline serviceable, requiring no special tools.
Flood Sensor Technology
Includes a flood sensor on the relief valve to detect excessive water discharges.
The flood sensor relays a signal that can trigger a multichannel alert (call, email, text) to notify personnel about potential flooding.
An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product. Watts® is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.
Specifications
Nominal Size: 10 inch
Main Valve Body Material: Ductile Iron Grade 65-45-12
Relief Valve Body Material: Ductile Iron Grade 65-45-12
Coating: ArmorTek powder coating
Shutoff Valves: OS&Y resilient wedge gate valve (UL Classified and FM Approved, AWWA C515 Compliant)
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California (FCCCHR-USC)
ASSE 1013 Listed
UL Classified (US & Canada)
FM Approved
IAPMO/CUPC
AWWA Standard C511 Compliant
CSA B64.4
NSF Certified to NSF/ANSI 61-G
End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
FAQs
What is the primary purpose of this backflow preventer assembly?
This MasterSeries LF880V Reduced Pressure Zone assembly is designed to protect potable drinking water systems from contamination due to backpressure and backsiphonage conditions from high hazard/toxic fluids, in compliance with local water utility codes.
Is this backflow preventer compliant with lead-free regulations?
Yes, this assembly features Lead Free construction, meaning the wetted surfaces contain less than 0.25% lead by weight. This complies with low lead installation requirements for potable water systems.
What type of shutoff valves are included with this assembly?
This assembly is fitted with OS&Y (Outside Stem and Yoke) resilient seated gate shutoff valves. These valves are UL Classified and FM Approved, making them suitable for fire sprinkler applications.
How does the flood sensor function, and what is required to activate it?
The flood sensor detects excessive water discharges from the relief valve. It relays a signal that can trigger alerts to personnel. An add-on connection kit is required to activate the flood sensor for communication with a BMS or cellular network.
What are the allowed installation orientations for this backflow preventer?
This assembly can be installed in either a horizontal (N-pattern) or vertical up (Z-pattern) orientation. Both patterns are approved by FCCCHR-USC, ASSE, cULus, FM, and IAPMO/CUPC.
