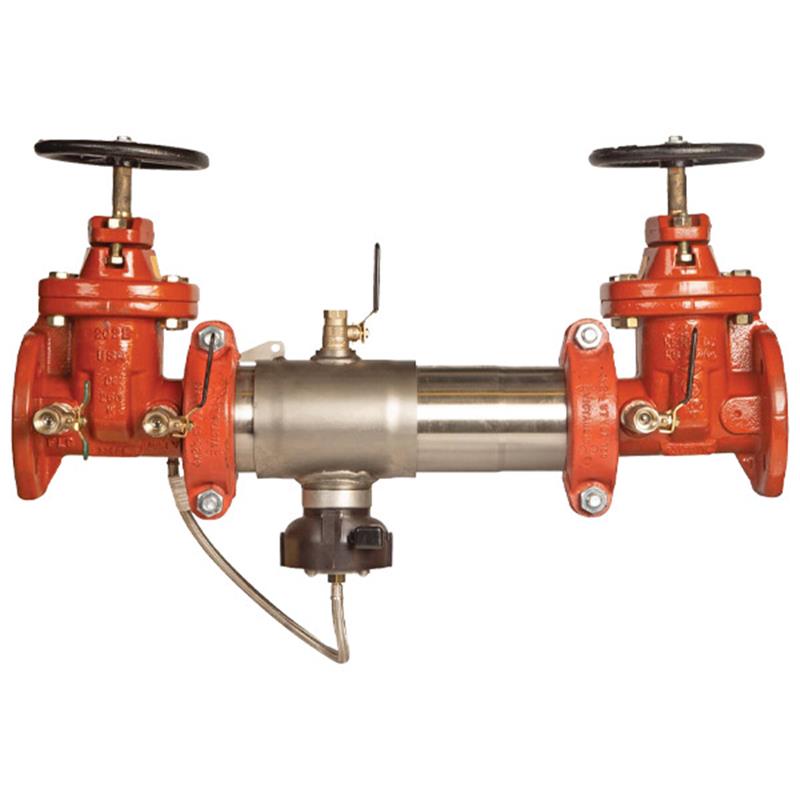

10 957-DNRS-FS

Item Number: F792324
Skip to product information
1 of 1
Regular price $59,087.16
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts

  • 10 inch Reduced Pressure Zone Assembly
  • Weight: 1125.0 lb
  • Non-Rising Stem (NRS) gate shutoff valves
  • 304 (Schedule 40) stainless steel housing
  • SentryPlus Alert® flood sensor included
  • Maximum Operating Pressure: 175 PSI
  • Lead Free* bronze test cocks
  • Horizontal installation approved
  • 70% lighter than traditional designs

Description

The Watts Series 957 10 inch Reduced Pressure Zone (RPZ) backflow preventer safeguards potable water systems from contamination caused by backpressure or backsiphonage in health hazard scenarios. This lead-free assembly features 304 stainless steel construction, domestic Non-Rising Stem (NRS) gate valves, and a corrosive-resistant stainless steel relief valve. It includes a SentryPlus Alert® flood sensor to detect excessive water discharges, with alert capabilities activated by an add-on connection kit (sold separately). Designed for horizontal installation, it offers an extremely compact and lightweight solution with a maximum working pressure of 175 PSI. Item number F792324.

Help Me Connect

This 10 inch Reduced Pressure Zone Assembly Backflow Preventer is designed to be installed horizontally in the potable water system to prevent reverse flow of liquids caused by backsiphonage or backpressure. It is intended for health hazard applications. Ensure installation is in accordance with the direction of the flow arrow.

The integrated SentryPlus Alert® flood sensor requires an add-on connection kit (sold separately) to activate its flood detection and notification features. Compatible connection kits support integration with BMS, cellular communication, or the Sensor Control Monitor for connectivity to BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.

View full details

Collapsible content

Additional Details

This Watts Series 957 Reduced Pressure Zone Assembly Backflow Preventer is designed to protect potable water systems from contamination due to backsiphonage or backpressure in health hazard applications. This 10 inch model, featuring Non-Rising Stem (NRS) shutoff valves, is approved for horizontal installation and incorporates an extremely compact, lightweight design.

The assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, providing notification capabilities to facility personnel when paired with an add-on connection kit, helping to limit flooding and damage.

Construction & Design

  • 304 (Schedule 40) stainless steel housing and sleeve for durability and corrosion resistance
  • Corrosion-resistant stainless steel bottom-mounted pressure relief valve
  • Patented torsion spring checks for lowest pressure loss and unmatched ease of serviceability
  • Equipped with domestic resilient seated gate valves with non-rising stem
  • Extremely compact design is 70% lighter than traditional models
  • Groove fittings allow integral pipeline adjustment

Flood Sensor Features

  • SentryPlus Alert® technology detects continuous discharge from the relief valve
  • Sensor is installed on the assembly exterior and does not alter assembly functions or certifications
  • Relays a signal to trigger notification for corrective action (requires add-on connection kit)
  • Add-on sensor connection kit enables compatibility with BMS and cellular network communication
  • Integrates with Sensor Control Monitor for maintenance alerts to BAS via RS-485 Modbus or Nexa® platform via Wi-Fi connectivity

Specifications

  • Size: 10 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Gate Valves
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Check Disc Rubber: Replaceable
  • Elastomers: EPDM, Silicone, Buna-N
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Test Cocks: Lead Free Bronze Body
  • Relief Valve: Corrosive Resistant Stainless Steel, Bottom Mounted
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Certificates & Approvals

  • ASSE 1013
  • CSA B64.4
  • UL Listed
  • FM Approved
  • NSF/ANSI 61, Annex G
  • Lead Free* (Wetted surface contains less than 0.25% lead by weight)

Dimensions & Weight (Approximate)

  • Length (A): 57 3/4 inches (1467 mm)
  • Width (C, NRS): 45 3/4 inches (1162 mm)
  • Height (D): 23 13/16 inches (605 mm)
  • Weight: 893 lbs (405 kg)

FAQs

What is the primary function of the Watts Series 957 Reduced Pressure Zone Assembly?

Its primary function is to protect potable water systems from contamination by preventing the reverse flow of liquids (backsiphonage or backpressure) in health hazard applications, in accordance with national plumbing codes.

Does this backflow preventer include a flood sensor?

Yes, it includes a SentryPlus Alert® flood sensor designed to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate its full alert capabilities.

What type of shutoff valves are used on this 10 inch assembly?

This 10 inch assembly is equipped with domestic resilient seated gate valves featuring a non-rising stem (NRS), specified by the product's "DNRS" designation.

What material is the housing and sleeve made from?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel, offering durability and corrosion resistance for long-term performance.

What is the maximum operating pressure and temperature range for this backflow preventer?

This unit has a maximum operating pressure of 175 PSI (12.1 bar) and can operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).
