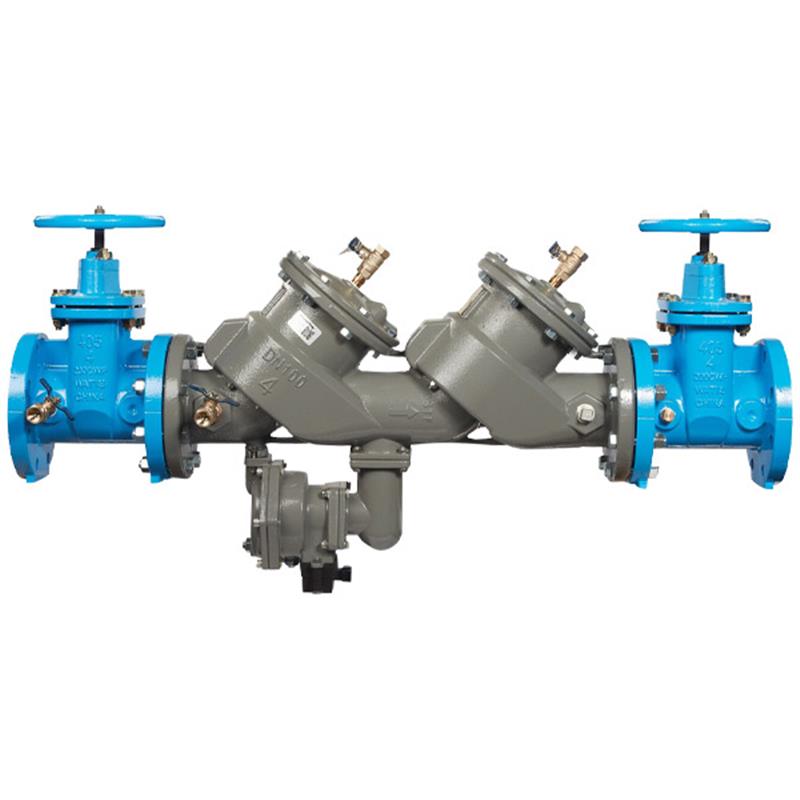

10 LF860-NRS-FS

Item Number: F122937
1 1
$46,129.09
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Backflow Preventer Type: Reduced Pressure Zone
  • Weight: 1440.0 lb
  • Nominal Size: 10 inch
  • Lead Free: Yes
  • Shutoff Valves: Non-rising Stem (NRS)
  • Flood Sensor: SentryPlus Alert® Technology
  • Body Material: Ductile Iron
  • Corrosion Protection: ArmorTek® 3-part epoxy
  • Maximum Working Pressure: 175 PSI

Description

This 10-inch FEBCO MasterSeries LF860 Reduced Pressure Zone Backflow Preventer provides robust protection against high-hazard (toxic) fluids in industrial water services. It features a durable ductile iron body with a patented ArmorTek® 3-part epoxy coating for advanced corrosion resistance, including protection against microbial induced corrosion. Equipped with non-rising stem shutoff valves and stainless-steel internal components, it ensures long-term reliability. An integrated SentryPlus Alert® flood sensor detects excessive relief valve discharge, offering enhanced safety. The assembly is lead-free, ASSE 1013 listed, and operates up to 175 PSI, ideal for demanding applications requiring superior backflow prevention and monitoring capabilities.

Help Me Connect

Connections

  • This assembly features flanged end connections compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.

Flood Sensor Connectivity

The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit to activate flood monitoring and relay alerts. Connection kit options include:

  • Building Management System (BMS)
  • Cellular communication
  • Sensor Control Monitor (for integration with BAS via RS-485 Modbus or Nexa® platform via Wi-Fi)
View full details

Additional Details

The FEBCO MasterSeries LF860 Reduced Pressure Zone Backflow Preventer Assembly is designed to protect against high hazard (toxic) fluids in industrial water services and applications. This 10 inch lead free assembly features non-rising stem shutoff valves and a ductile iron body for reliable performance.

Corrosion Protection

  • Body is fused with a patented 3-part ArmorTek® epoxy coating system.
  • ArmorTek® coating limits both microbial induced (MIC) and exposed metal substrate corrosion.

Advanced Monitoring

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • Sensor, when paired with an add-on connection kit, relays alerts for potential flooding events.
  • Connects to BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • The sensor connection kit is required to activate the flood sensor.

Construction & Durability

  • Features stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability.
  • Lead free construction for health hazard applications.
  • Composed of top mounted test cocks, spring loaded check valves, and a pressure differential relief valve.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 10 inch
  • Application: High hazard (toxic) fluids in water services
  • Lead Free: Yes
  • Flood Sensor: SentryPlus Alert® Technology
  • Coating: ArmorTek® (3-part advanced epoxy system)
  • Shutoff Valves: Non-rising stem (NRS)

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Relief Valve Body: Ductile Iron Grade 65-45-12
  • Coating Type: ArmorTek® powder coating (internal and external)
  • Shutoff Valve Material: NRS resilient wedge gate valve AWWA C509
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring Material: Stainless steel
  • Clamp: AWWA C606 (10 inch only)

Pressure & Temperature

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 20 PSI (1.4 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Relief Pressure Differential Relief Valve: 100 PSI (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C)

Dimensions (Approximate)

  • Length (A): 72 5/8 inches (1845 mm)
  • Width (B): 46 3/8 inches (1178 mm)
  • Height (C): 15 5/8 inches (397 mm)
  • Center to Relief Valve Outlet (D): 13 3/4 inches (348 mm)
  • Distance Between Shutoff Valves (E*): 27 1/2 inches (699 mm)
  • Flange Diameter (G): 9 inches (229 mm)
  • Flange to Center of Body (H): 12 3/8 inches (314 mm)
  • Weight (NRS Shutoff Valves): 1205 lbs (547 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • ASSE 1013 Listed
  • UL Classified™ (US & Canada)
  • FM Approved™
  • IAPMO
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.4
  • NSF Listed

FAQs

What is the primary use of the LF860 backflow preventer?

The FEBCO LF860 Reduced Pressure Zone Backflow Preventer is primarily used to protect against high hazard (toxic) fluids in water services for industrial installations and applications. It prevents contaminated water from flowing back into the potable water supply.

What type of shutoff valves does this assembly use?

This 10-inch LF860 backflow preventer is equipped with non-rising stem (NRS) shutoff valves. These valves provide reliable isolation for maintenance and system control.

How does the ArmorTek® coating protect the backflow preventer?

The patented 3-part ArmorTek® epoxy coating system is fused to the ductile iron body, both internally and externally. It is designed to limit microbial induced corrosion (MIC) and protect against exposed metal substrate corrosion, extending the assembly's lifespan.

Does this backflow preventer include a flood sensor?

Yes, the LF860 assembly includes an integrated flood sensor with SentryPlus Alert® technology. This sensor detects excessive water discharges from the relief valve, indicating potential issues.

Can the flood sensor provide remote alerts?

Yes, when paired with an add-on connection kit, the flood sensor can relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, or a Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.
