10 LF860-OSY-FS

Item Number: F122944
1 1
$49,194.11
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1480.0 lb
  • Lead Free construction
  • ArmorTek® coating for corrosion resistance
  • Max. Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • SentryPlus Alert® flood sensor included
  • Ductile iron body, stainless steel checks/seat
  • ASSE 1013 Listed

Description

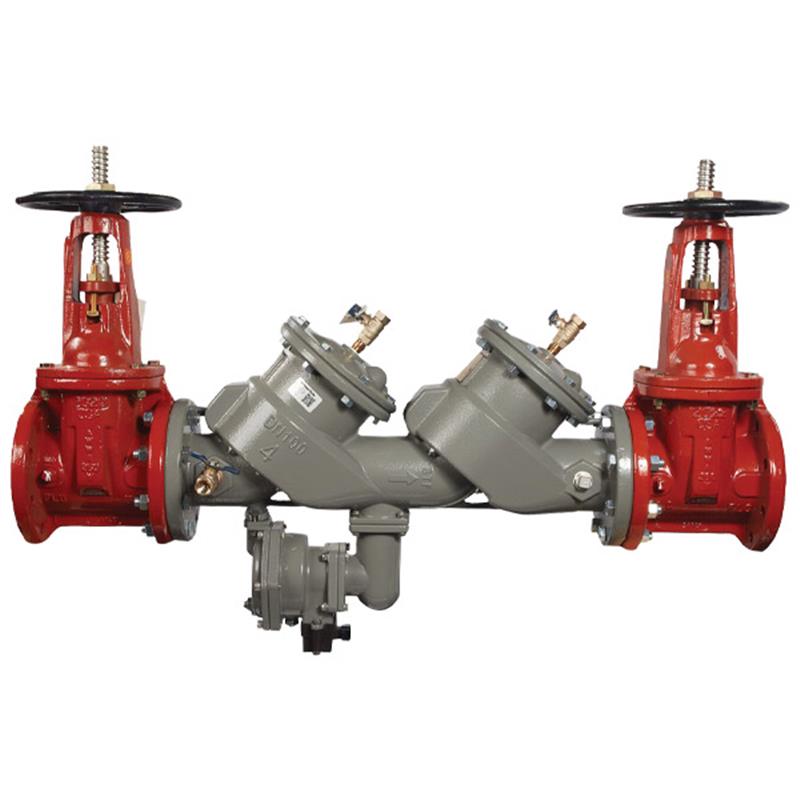

The 10 inch Lead Free FEBCO MasterSeries LF860 Reduced Pressure Zone Backflow Preventer assembly protects potable water systems from backpressure and backsiphonage in high hazard/toxic applications. It features a durable ductile iron body with ArmorTek® corrosion-resistant coating and includes UL Classified/FM Approved OSY shutoff valves. Stainless steel relief valve seats and check components enhance durability. An integrated SentryPlus Alert® flood sensor detects excessive water discharge. This assembly is ASSE 1013 Listed, UL Classified, FM Approved, and IAPMO certified, with a maximum working pressure of 175 psi. Item number F122944.

Help Me Connect

Connections

  • This assembly is designed for horizontal flow orientation.
  • End connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.

Flood Sensor Activation

To activate the integrated SentryPlus Alert® flood sensor for relaying alerts about excessive water discharge, an add-on connection kit is required. This kit enables communication with Building Management Systems (BMS), cellular networks, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This 10 inch lead free MasterSeries® LF860 Reduced Pressure Zone assembly is engineered to protect potable drinking water systems from backpressure and backsiphonage conditions in high hazard/toxic applications. It includes UL Classified and FM Approved outside stem and yoke (OSY) shutoff valves, a lead free ductile iron body, top mounted test cocks, spring-loaded check valves, and a pressure differential relief valve.

Advanced Corrosion Protection

  • The assembly's iron components are coated with ArmorTek®, a patented three-part advanced epoxy system designed to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • Improved with a stainless steel relief valve seat and stainless steel check components, these rugged assemblies offer enhanced dependability and extended valve life.

Flood Detection and Alerts

  • Features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on connection kit is required to activate the flood sensor for alert relay. Kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Design and Serviceability

  • Lead Free construction complies with low lead installation requirements, with the wetted surface containing less than 0.25% lead by weight.
  • Designed for inline serviceability without requiring special tools.
  • Includes field replaceable seats, and reversible and replaceable discs for easy maintenance.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Model: LF860
  • Size: 10 inch
  • Lead Content: Less than 0.25% by weight (wetted surface)

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Relief Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating (internal and external surfaces)
  • Shutoff Valves: OSY resilient wedge gate valve AWWA C515 (UL Classified and FM Approved)
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606 (10" only)

Performance

  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Flood Detection

  • Sensor: SentryPlus Alert® technology flood sensor on relief valve
  • Activation: Requires add-on connection kit (BMS, cellular, or Sensor Control Monitor for Modbus/Nexa Wi-Fi)

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1013 Listed
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C511 Compliant
  • ASME B16.1 Class 125 Flange
  • AWWA Class D Flange
  • CSA B64.4
  • NSF/ANSI 61-G Certified

FAQs

What is the primary function of this backflow preventer?

This backflow preventer is designed to protect potable water systems from backpressure and backsiphonage conditions in high hazard/toxic applications, ensuring water quality and safety.

Does this assembly comply with lead-free requirements?

Yes, the wetted surface of this product contains less than 0.25% of lead by weight, fully complying with low lead installation requirements for potable water systems.

How does the ArmorTek® coating benefit the assembly?

The patented three-part advanced epoxy ArmorTek® coating system is applied to the iron components to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate, thereby extending the assembly's lifespan and performance.

How does the flood sensor work and what is needed to activate it?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. To activate the sensor and relay alerts for potential flooding events, an add-on connection kit (e.g., BMS, cellular, or Sensor Control Monitor) is required.

What are the key material components of this assembly?

The assembly features a durable ductile iron main valve body and relief valve body, complemented by stainless steel check seats, a stainless steel relief valve seat, disc holders, and springs for maximum performance and durability.
