10 LF866-LG-CFM-FS

Item Number: F683161
1 1
$36,511.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 386.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating
  • Bypass Meter: Totalizing Cubic Feet Per Minute (CFM)
  • Flood Sensor: SentryPlus Alert Technology Included
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Shutoff Valves: Not included with this configuration

Description

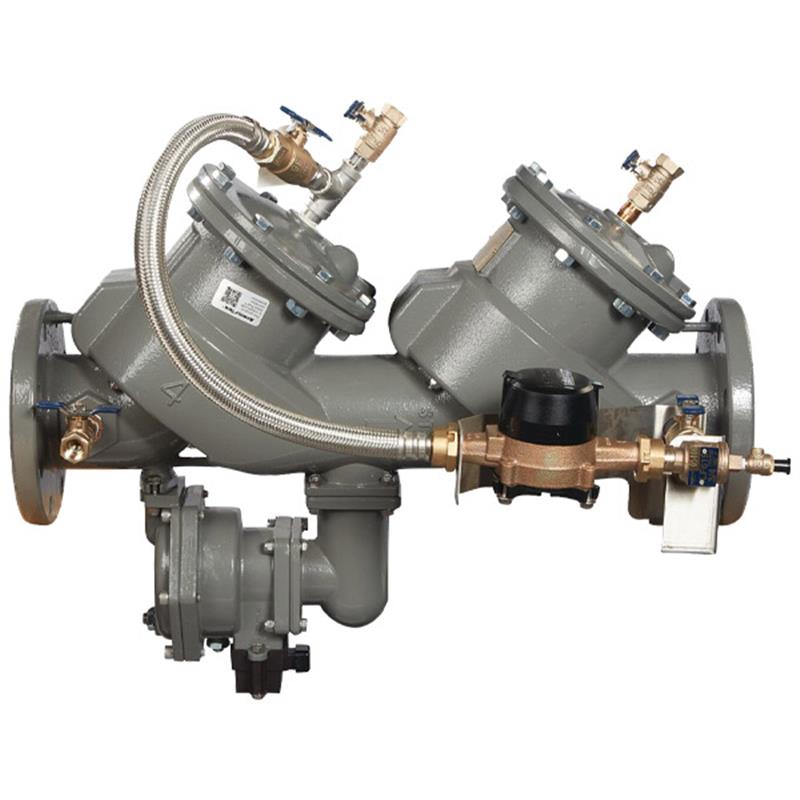

The 10 inch Lead Free MasterSeries LF866 Reduced Pressure Detector Backflow Preventer Assembly is engineered to protect potable water systems from high hazard (toxic) fluids. It prevents backpressure and backsiphonage conditions, making it suitable for industrial applications. Constructed from ductile iron with ArmorTek® coating, it offers superior corrosion resistance. This assembly includes stainless steel check and relief valve components, a totalizing cubic feet per minute (CFM) bypass meter, and a SentryPlus Alert® flood sensor. Note that this specific configuration is supplied without shutoff valves and is not a UL Classified or FM Approved assembly.

Help Me Connect

Installation & Compatibility

  • This 10 inch backflow preventer assembly is designed for horizontal installation on potable water supply lines.
  • Connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards, indicating a flanged connection type for pipe integration.
  • It is intended for use at cross-connection points to protect against backpressure and backsiphonage in systems handling high hazard/toxic fluids.
  • Please note: This assembly is supplied without shutoff valves. Appropriate isolation shutoff valves must be installed separately to complete the system.
View full details

Additional Details

This 10 inch Lead Free MasterSeries Reduced Pressure Detector Backflow Preventer Assembly protects potable water supplies from high hazard (toxic) fluids by preventing both backpressure and backsiphonage.

Primary Use

  • Designed for installation on potable water supplies at cross-connection points
  • Protects against backpressure and backsiphonage conditions in high hazard/toxic applications

Construction & Durability

  • Features a robust ductile iron main valve body and relief valve body
  • Equipped with a patented ArmorTek® powder coating, applied to internal and external surfaces, for advanced protection against electrochemical corrosion and microbial-induced corrosion (MIC)
  • Utilizes stainless steel check seats, relief valve seat, disc holder, and springs for maximum performance and durability
  • Elastomer discs are made from silicone

Bypass & Detection

  • Includes a detector bypass assembly with a 5/8 inch x 3/4 inch totalizing cubic feet per minute (CFM) water meter
  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve
  • An add-on connection kit (sold separately) can integrate the flood sensor for remote alerts via BMS, cellular communication, or the Nexa® platform via Wi-Fi

Important Note: This specific configuration, supplied with the "Less Shutoff Valves" (LG) option, is not a UL Classified or FM Approved assembly. These approvals require an assembly configured with UL Classified and FM Approved OS&Y resilient wedge gate valves.

Specifications

  • Size: 10 inch
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Relief Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating
  • Check Seats Material: Stainless Steel
  • Relief Valve Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Bypass Meter: Totalizing Cubic Feet Per Minute (CFM)

Performance

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 20 PSI (1.4 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous
  • Flow Orientation: Horizontal

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • NSF Certified to NSF/ANSI/CAN 61 & 372
  • Note: This specific assembly, configured with "Less Shutoff Valves" (LG), is not a UL Classified or FM Approved assembly. These approvals are applicable to configurations including UL Classified and FM Approved OS&Y RW gate valves.

FAQs

What is the primary function of this backflow preventer assembly?

This 10 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly protects potable water supplies from contamination by preventing both backpressure and backsiphonage conditions in high hazard (toxic) applications.

Is this specific backflow preventer assembly UL Classified or FM Approved?

No, this specific configuration, which is supplied without shutoff valves (LG option), is explicitly noted as not being a UL Classified or FM Approved assembly. These approvals require the inclusion of UL Classified and FM Approved OS&Y resilient wedge gate valves.

What kind of corrosion protection does this assembly feature?

The assembly features a patented ArmorTek® powder coating applied to both internal and external surfaces. This advanced epoxy coating system is designed to provide integrated protection against electrochemical corrosion and microbial-induced corrosion (MIC).

Does this assembly include shutoff valves?

No, this specific LF866-LG-CFM-FS assembly is supplied with the "Less Shutoff Valves" (LG) option, meaning shutoff valves are not included and must be sourced and installed separately.

What is the purpose of the flood sensor?

The integrated flood sensor with SentryPlus Alert® technology is designed to detect excessive water discharges from the relief valve. It can be connected via an add-on kit to provide remote alerts for potential flooding events.
